Home >> Plymouth >> 1995 >> Neon L4-2.0L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Group Number >> Group 8W-48 Rear Window Defogger

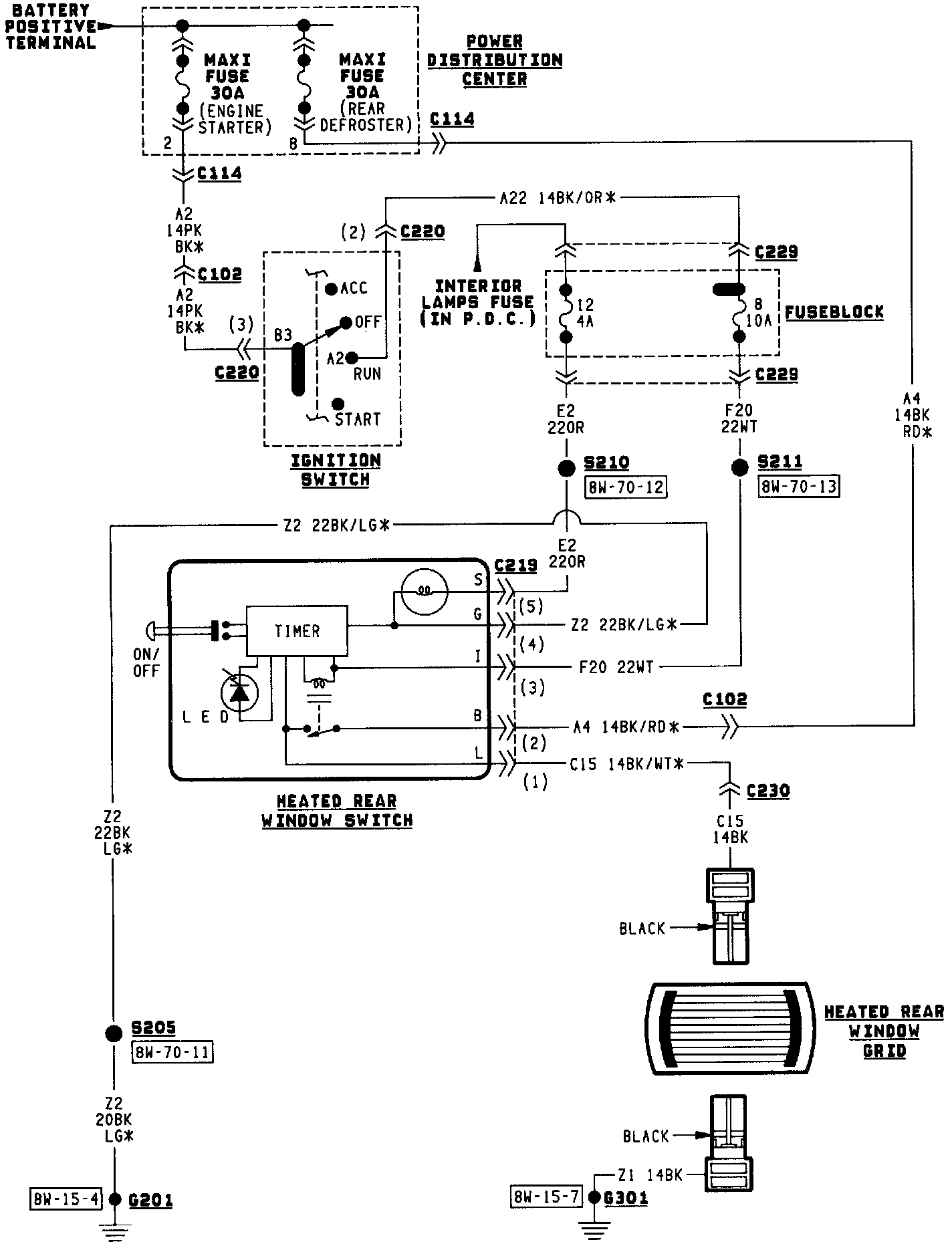

Group 8W-48 Rear Window Defogger

Heated Rear Window:
