Home >> Plymouth >> 1995 >> Neon L4-2.0L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> System Diagram

System Diagram

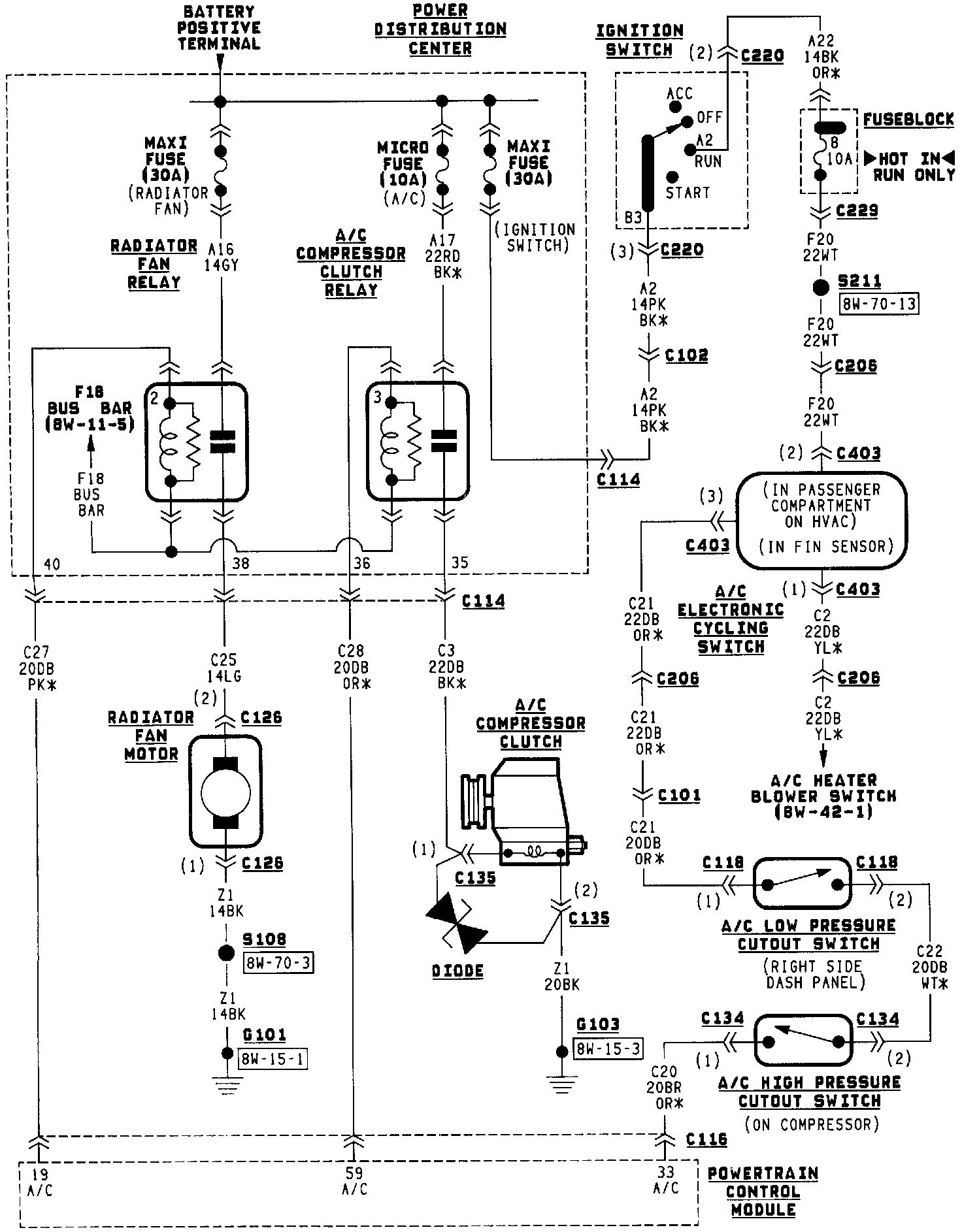

Air Conditioning-Heater (Part 1 Of 2):

Air Conditioning-Heater (Part 2 Of 2):
