Wiper and Washer Systems

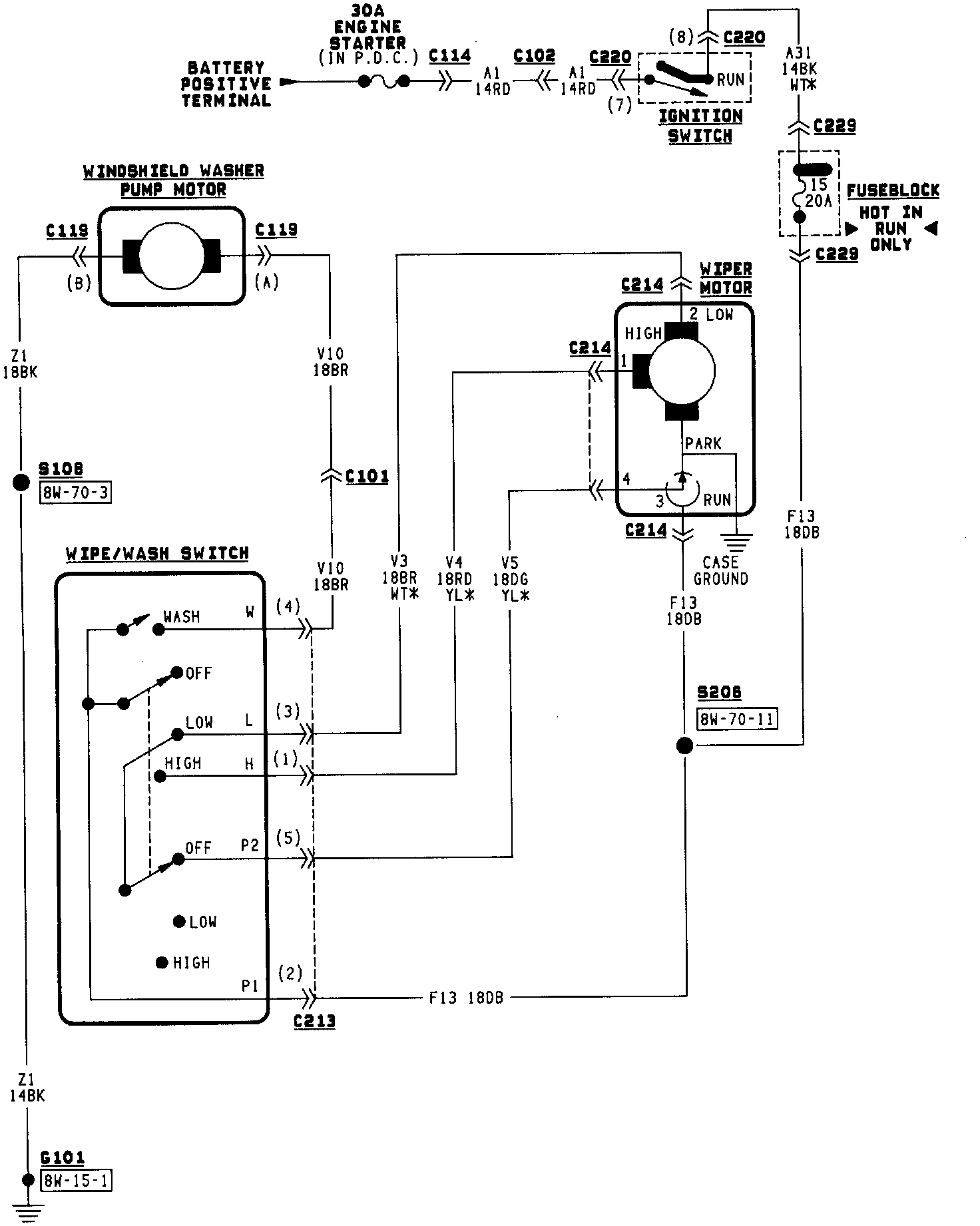

Fig.8 Wiper System Wiring Diagram (Part 1 of 2):



Fig.8 Wiper System Wiring Diagram (Part 2 of 2):

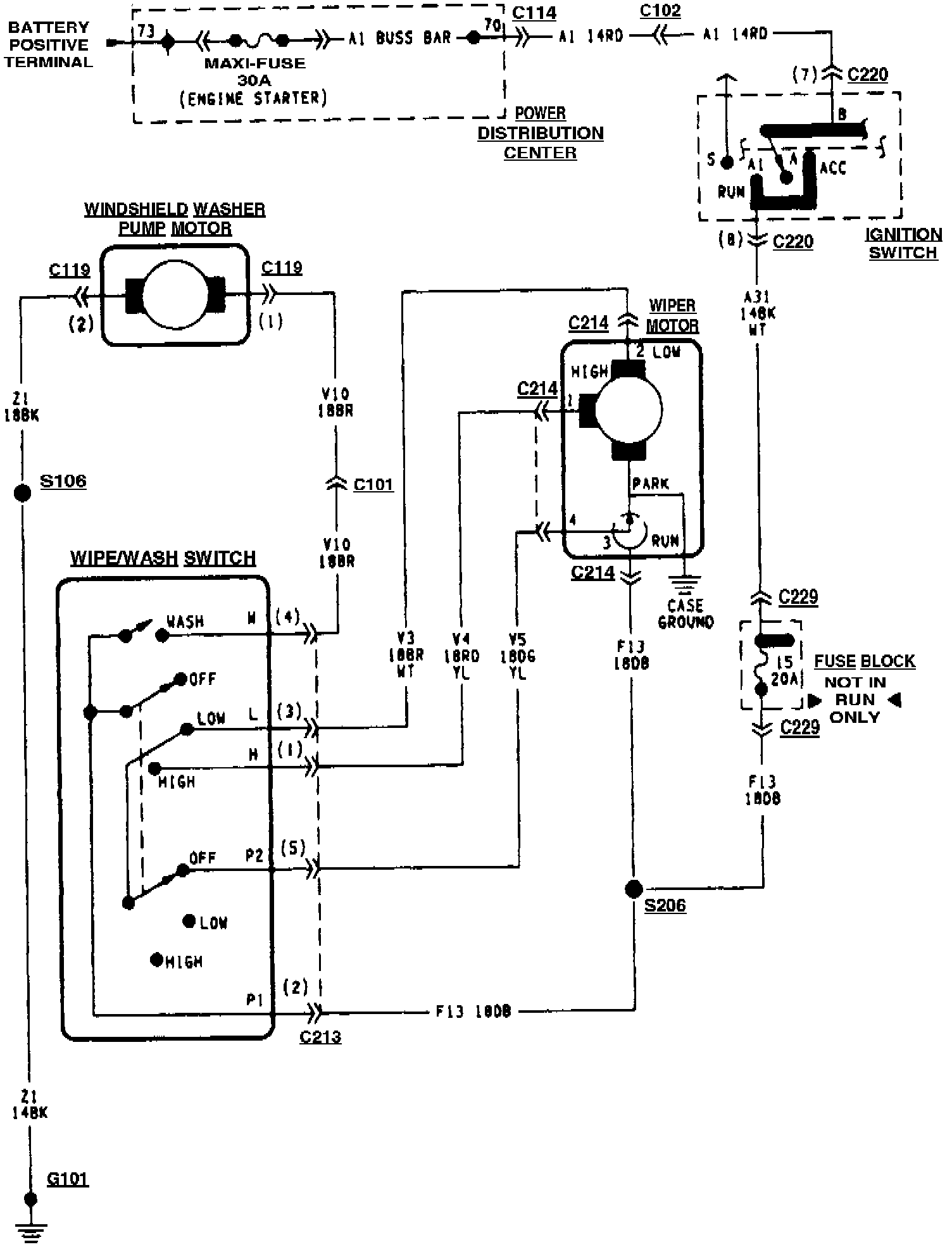

Wipers System (Part 1 Of 2):



Wipers System (Part 2 Of 2):
