Fuse Block

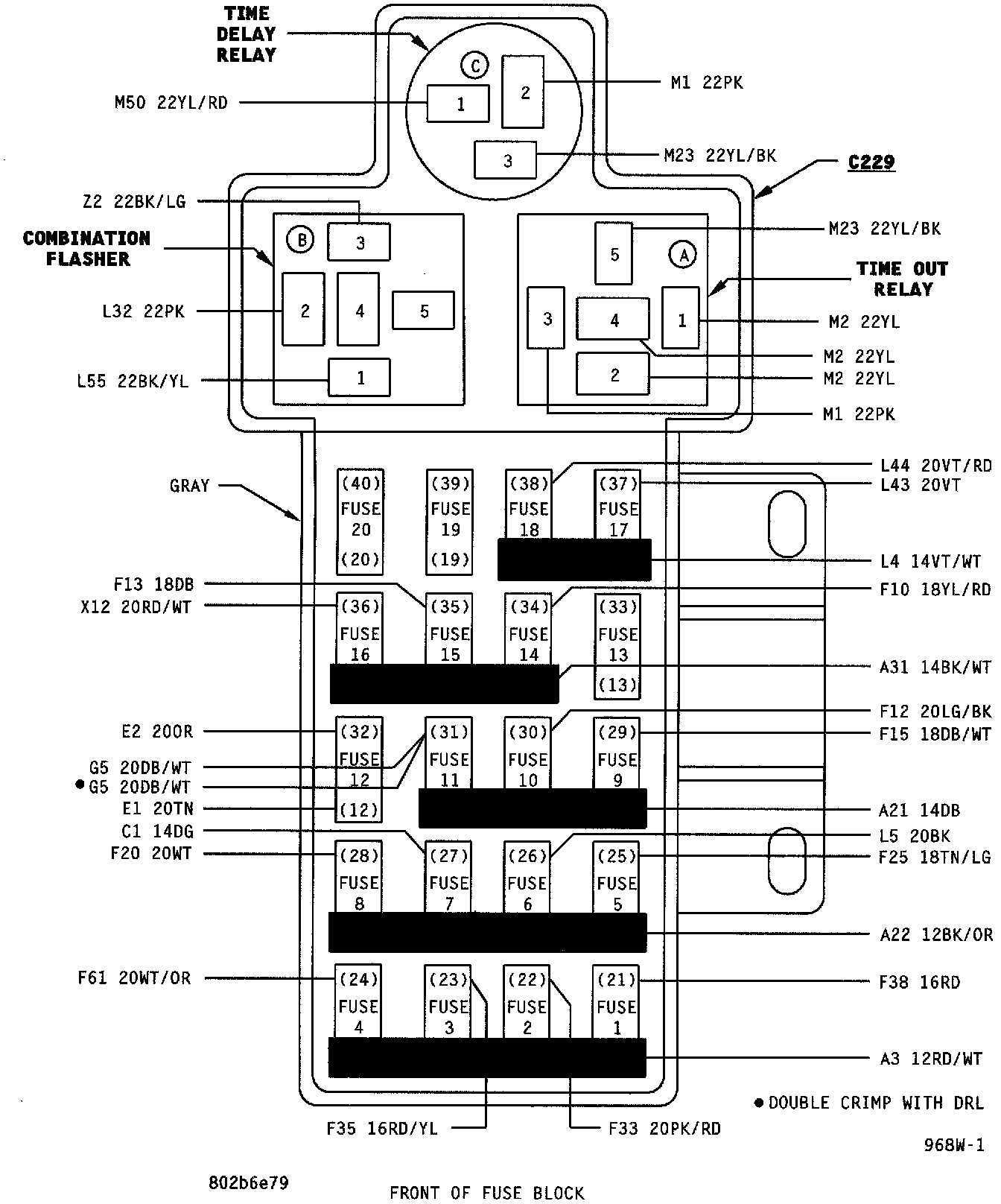

Fuse/Fuse Block (Part 1 Of 2):

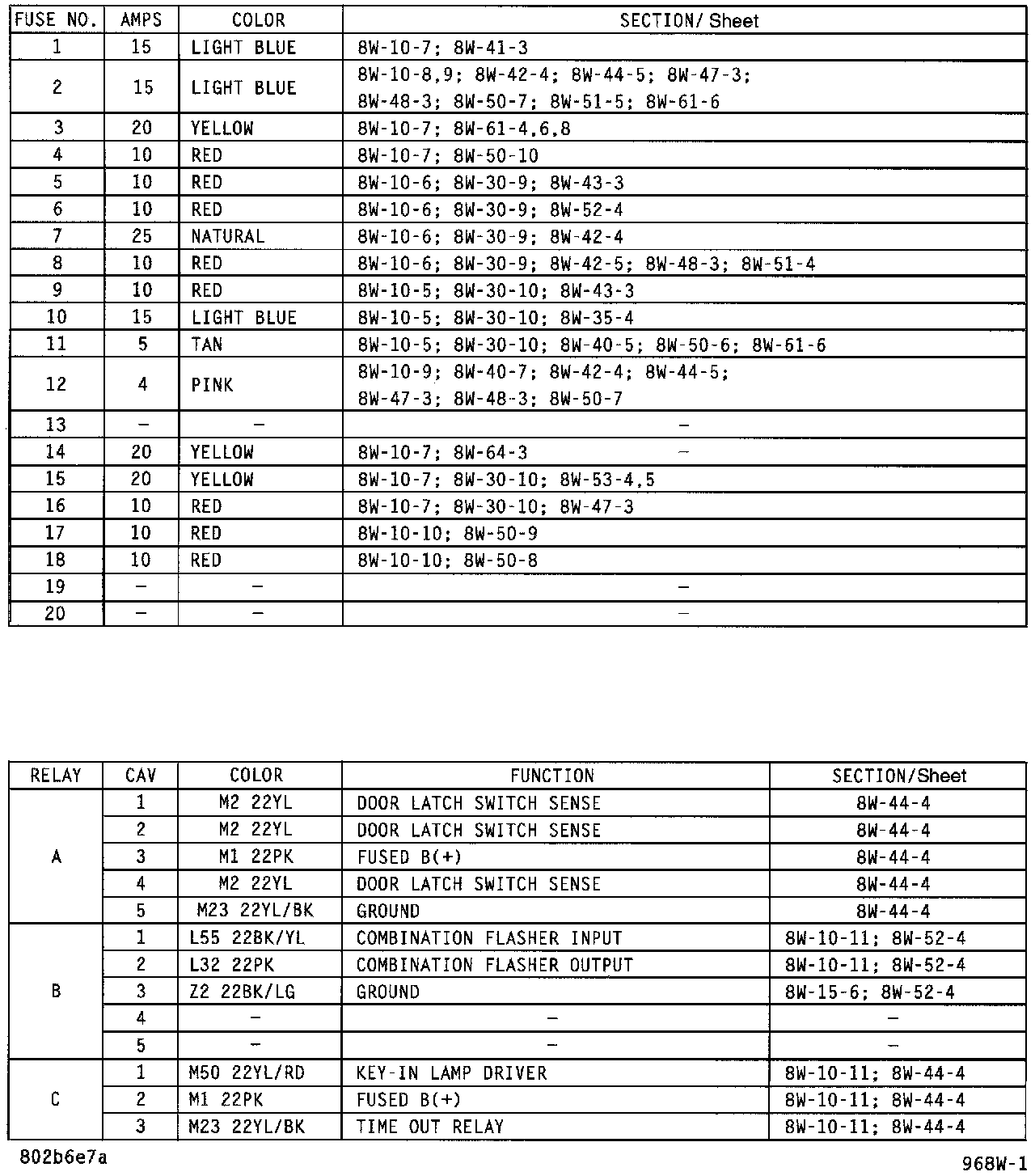

Fuse/Fuse Block (Part 2 Of 2):

NOTE: To view sheets referred to in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
