Malfunction Lamp / Indicator, Air Bag
Malfunction Lamp / Indicator, Air Bag

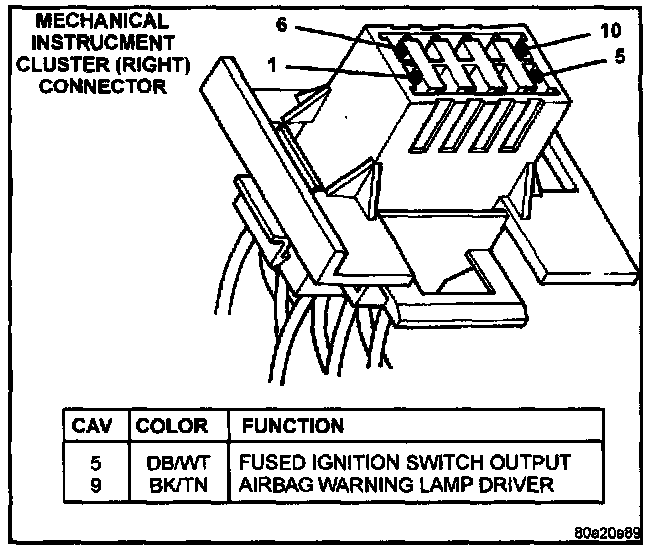

Airbag Warning Lamp Connector:
