Antilock Brakes / Traction Control Systems

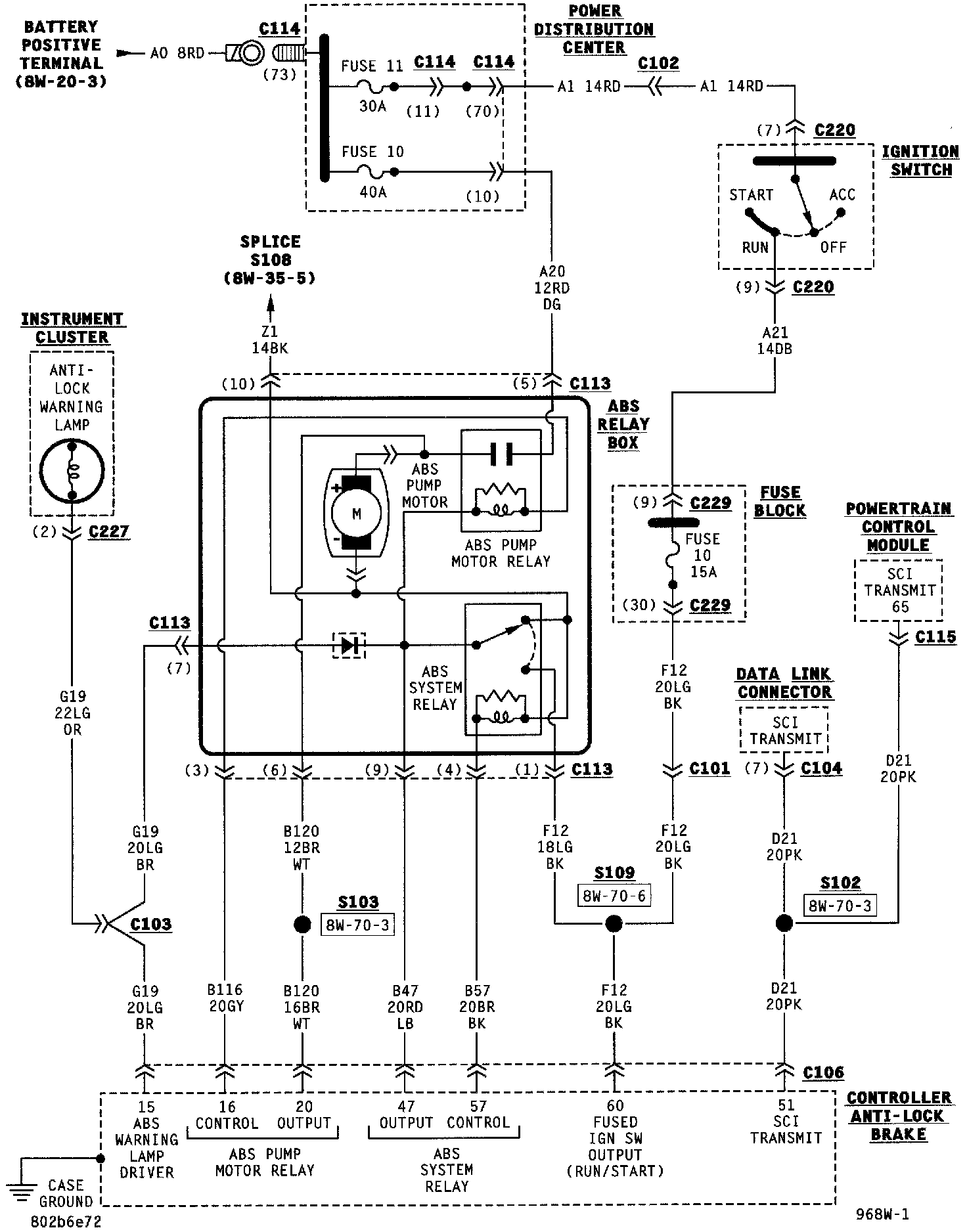

All-Wheel Anti-Lock Brakes (Part 1 Of 3):

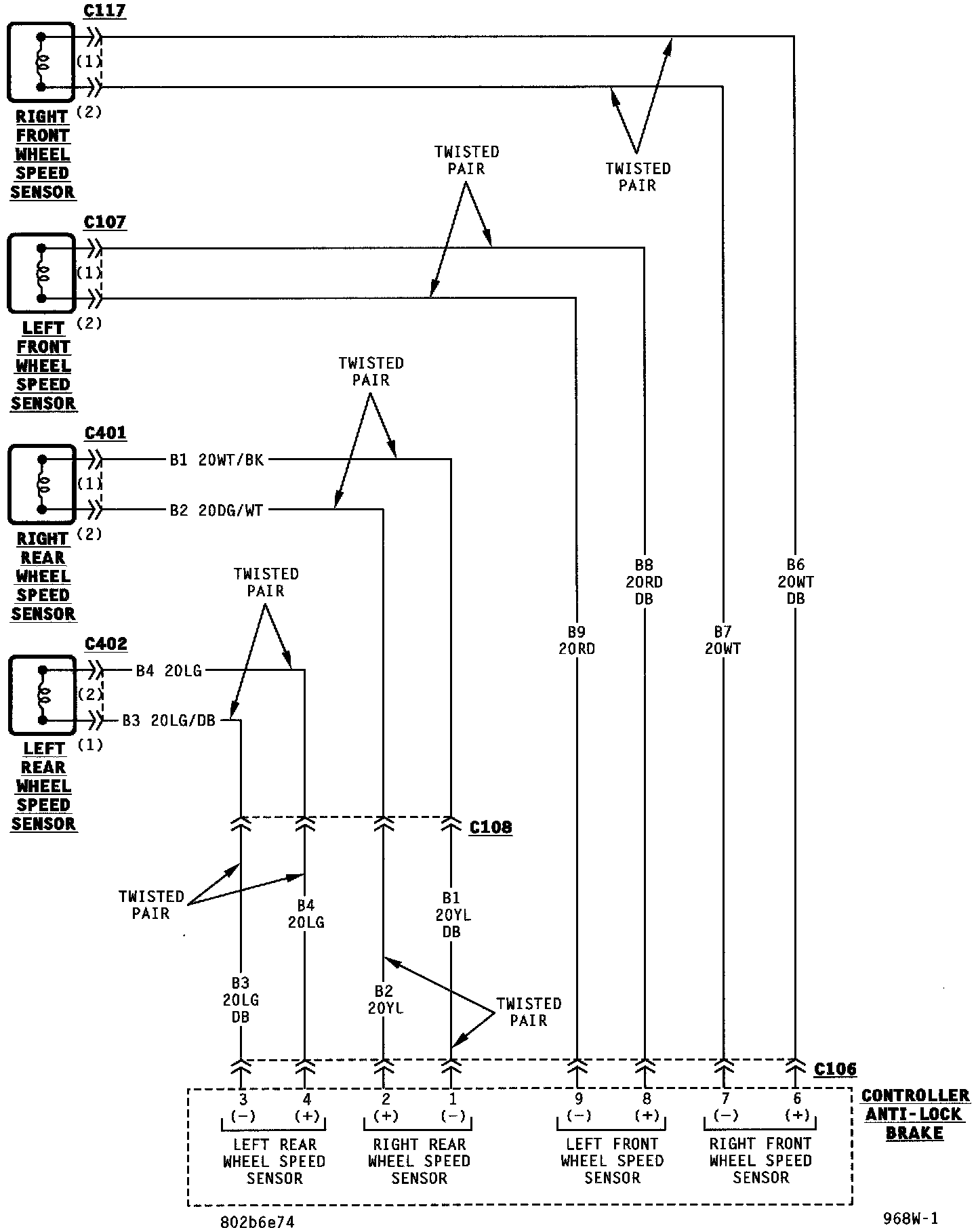

All-Wheel Anti-Lock Brakes (Part 2 Of 3):

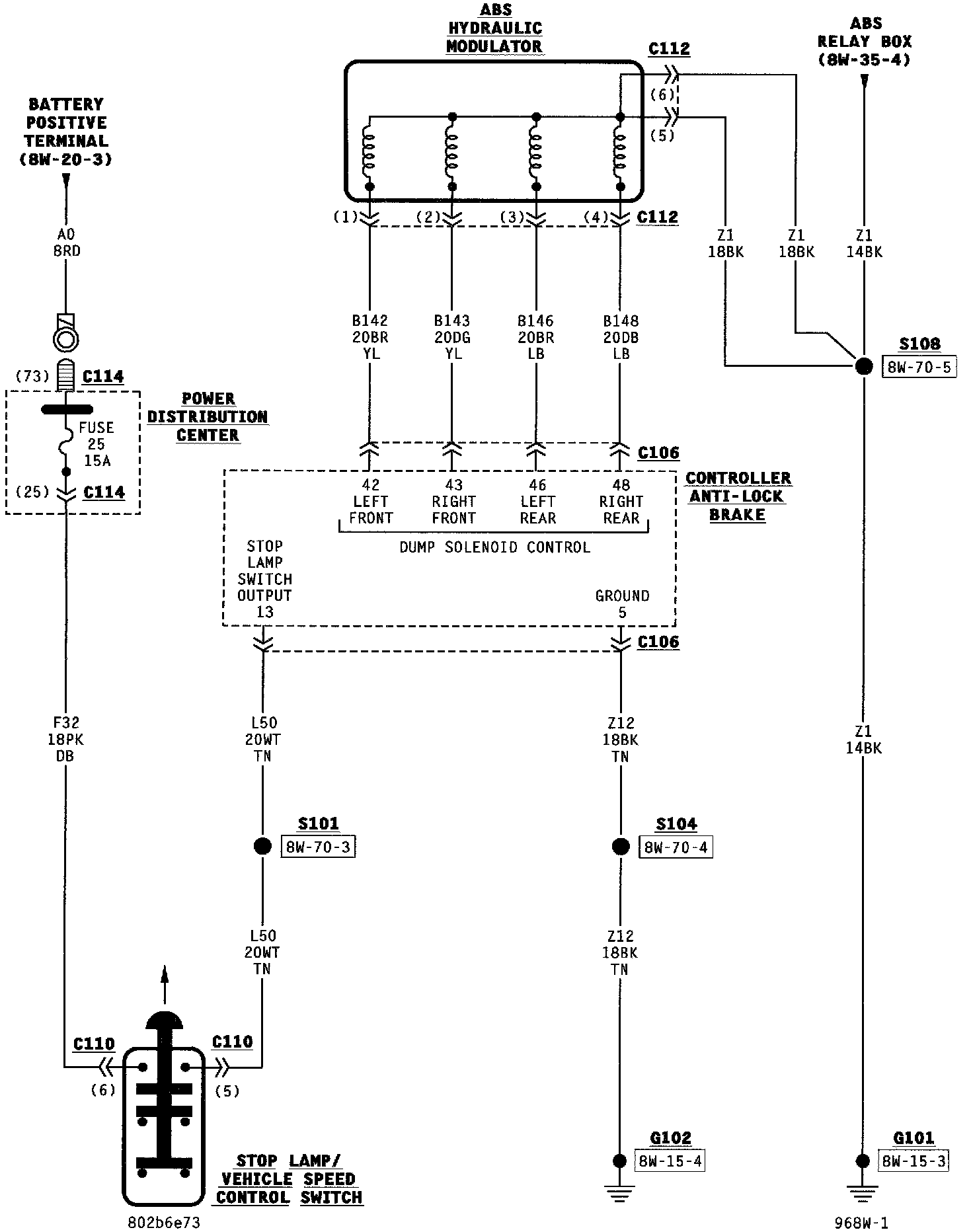

All-Wheel Anti-Lock Brakes (Part 3 Of 3):

NOTE: To view sheets referred to in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams
