Fuel Pump Relay: Locations

Fuel Pump Relay:

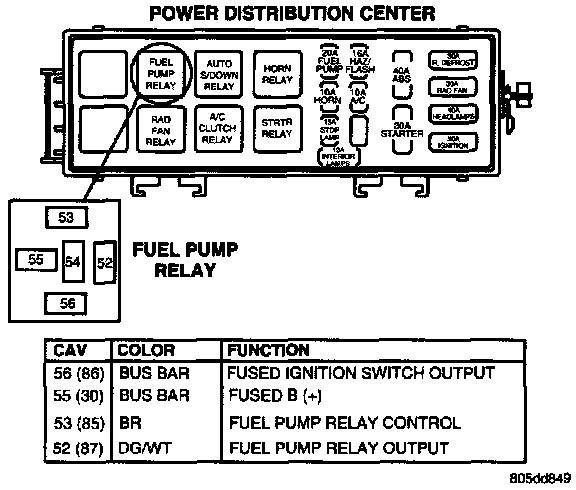

Fig. 15 Power Distribution Center (PDC):

The fuel pump relay is located in the Power Distribution Center (PDC). The inside top of the PDC cover has a label showing relay and fuse location.
