Air Door Actuator / Motor, HVAC
Air Door Actuator / Motor, HVAC
BLEND DOOR ACTUATOR:

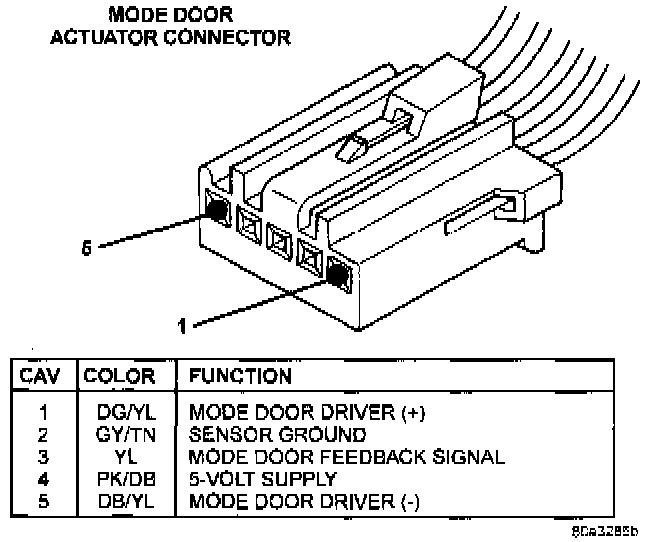

Mode Door Actuator:
