Home >> Plymouth >> 1998 >> Breeze L4-2.0L VIN C >> Repair and Diagnosis >> Diagrams >> Connector Views >> Heating and Air Conditioning >> System Diagram

System Diagram

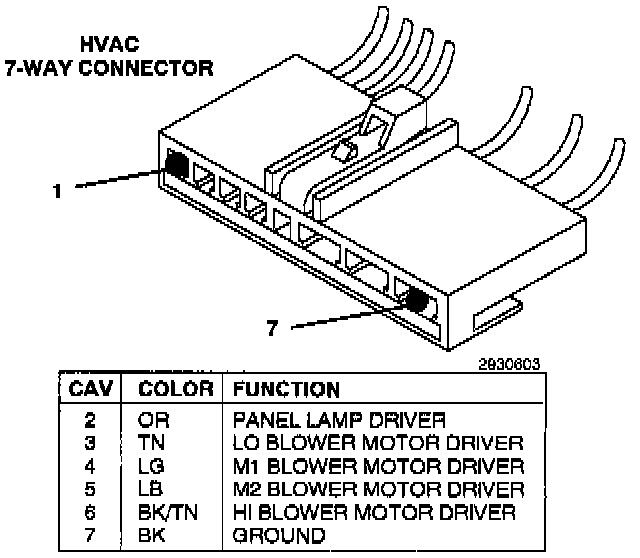

HVAC Connector:



HVAC Connector:
