Plymouth
>>
1998
>>
Breeze L4-2.0L VIN C
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transmission Mode Switch, A/T
>>
Transmission Range (PRNDL) Switch Connector
Transmission Range (PRNDL) Switch Connector

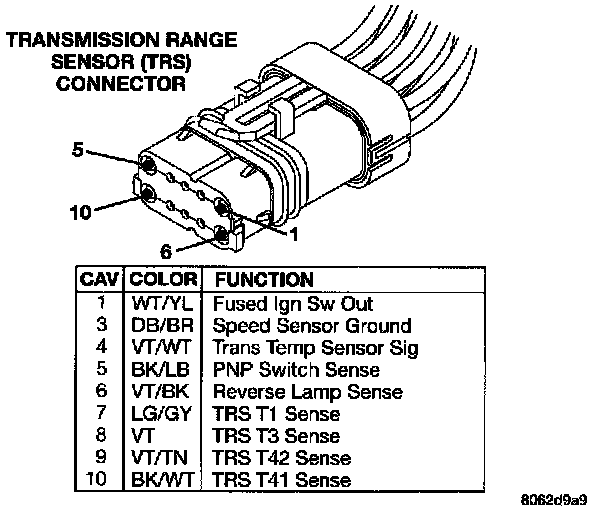

Transmission Range Sensor Connector:
