Antilock Brakes / Traction Control Systems: Diagrams

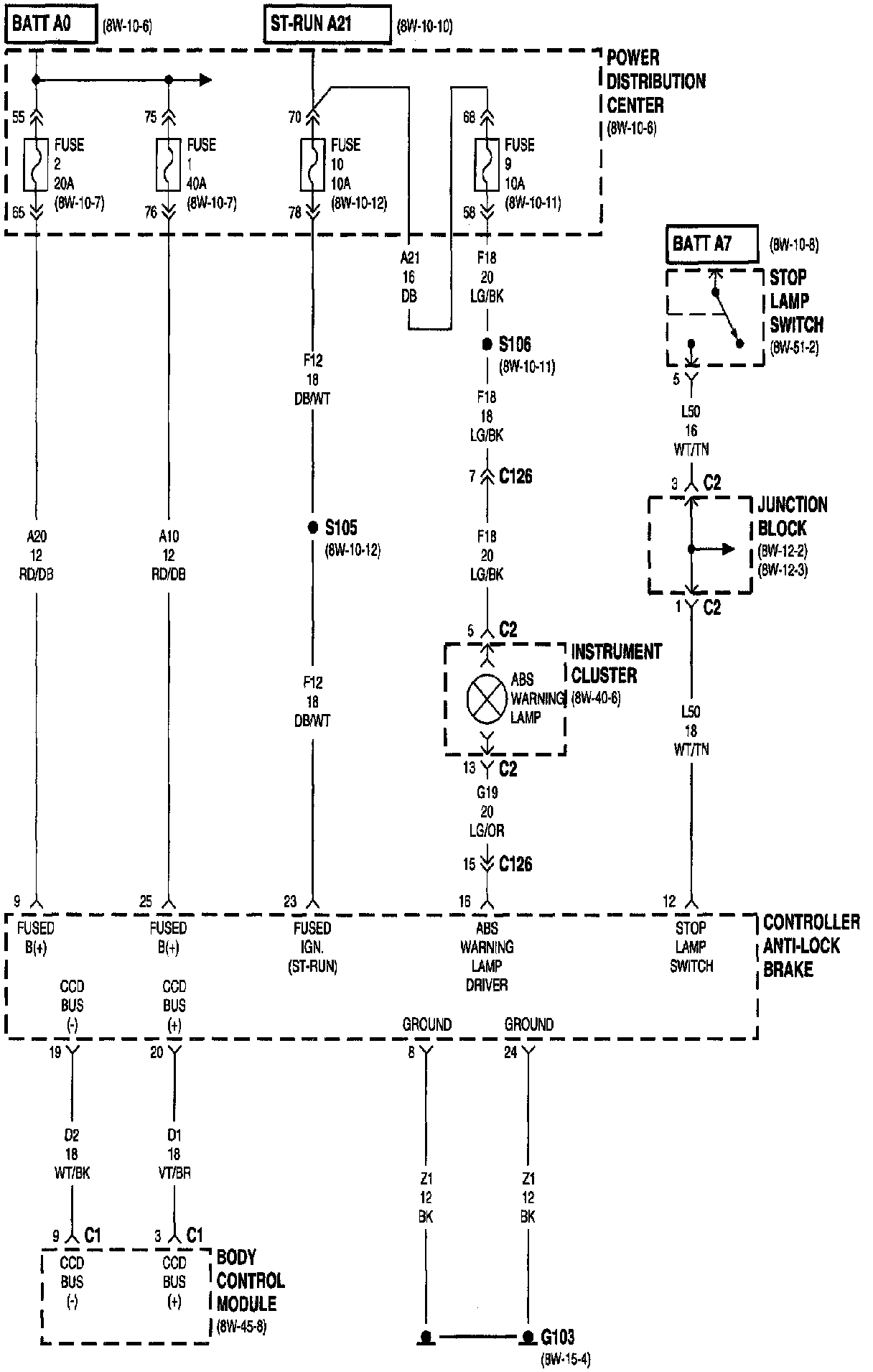

Anti-Lock Brakes (Part 1 Of 3):

ABS Warning Lamp
Body Control Module
Controller AntiLock Brake
Fuse 1 (PDC)
Fuse 9 (PDC)
Fuse 10 (PDC)
G103
Instrument Cluster
Junction Block
Power Distribution Center
Stop Lamp Switch

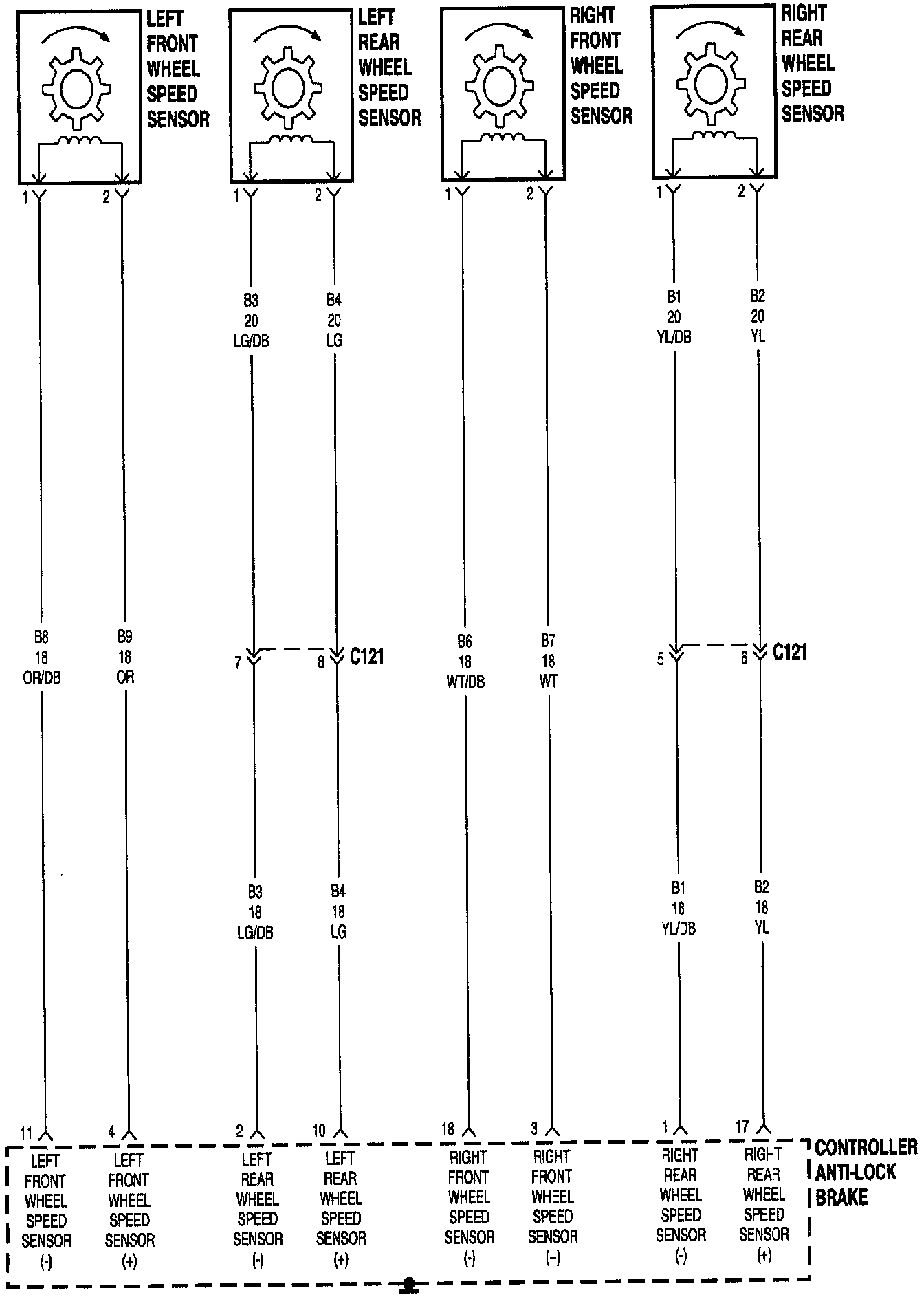

Anti-Lock Brakes (Part 2 Of 3):

Controller AntiLock Brake
Fuse 2 (PDC)
Left Front Wheel Speed Sensor
Left Rear Wheel Speed Sensor
Right Front Wheel Speed Sensor
Right Rear Wheel Speed Sensor

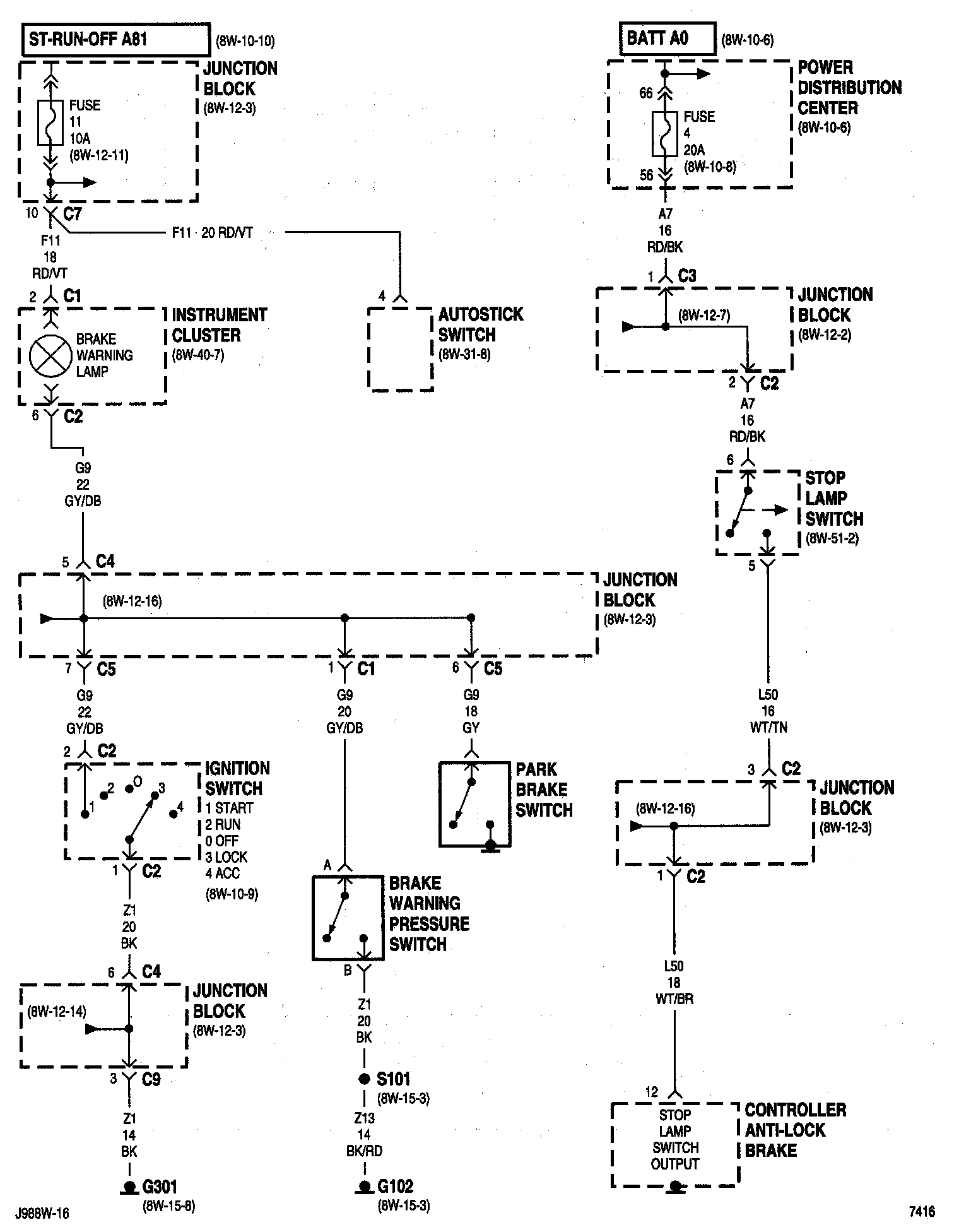

Anti-Lock Brakes (Part 3 Of 3):

Autostick Switch
Brake Warning Lamp
Brake Warning Pressure Switch
Controller AntiLock Brake
Fuse 4 (PDC)
Fuse 11 (JB)
G102
G301
Ignition Switch
Instrument Cluster
Junction Block
Park Brake Switch
Power Distribution Center
Stop Lamp Switch


NOTE: To view sheets referred in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
