Power Door Locks

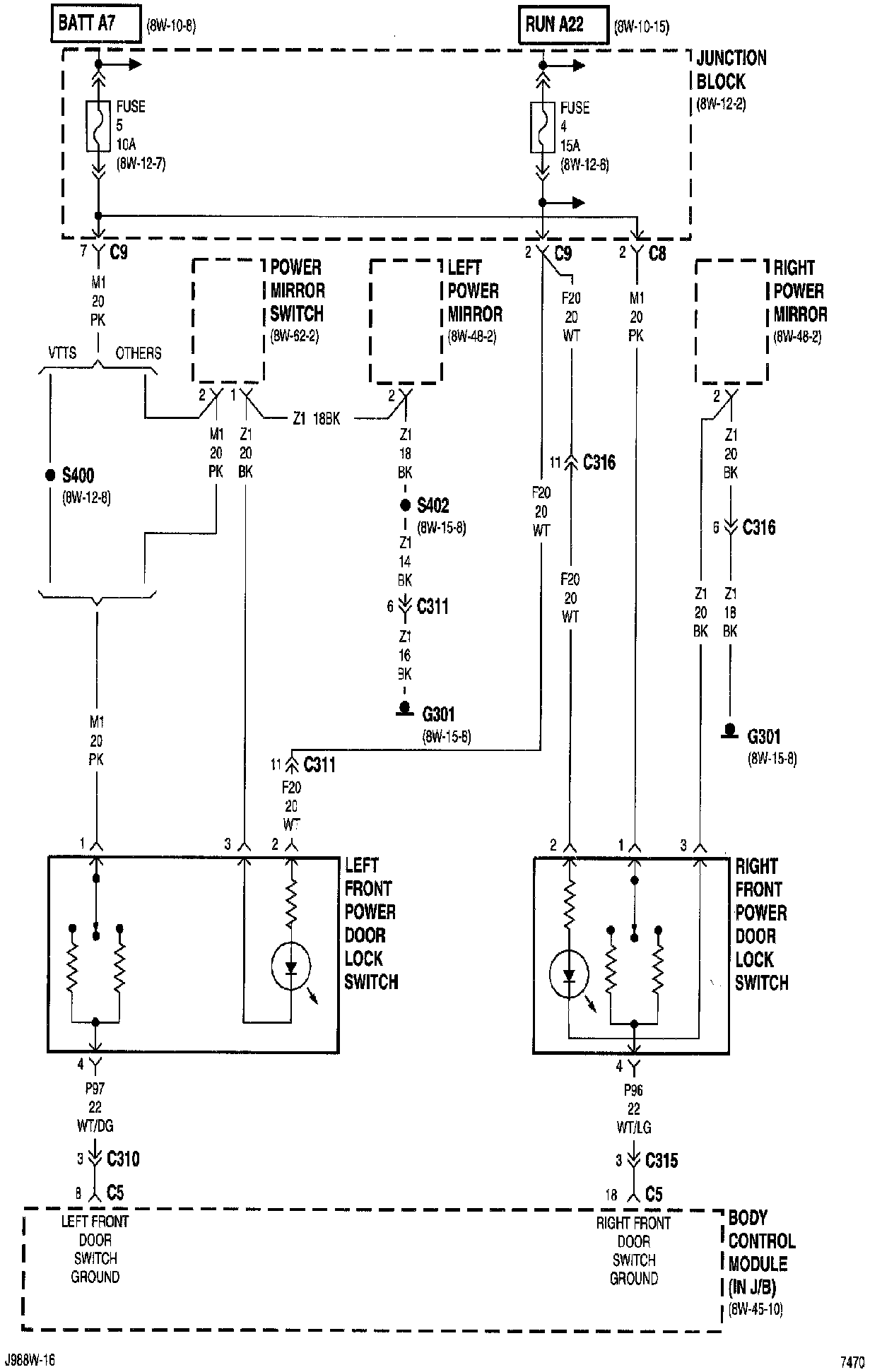

Power Door Locks (Part 1 Of 2):

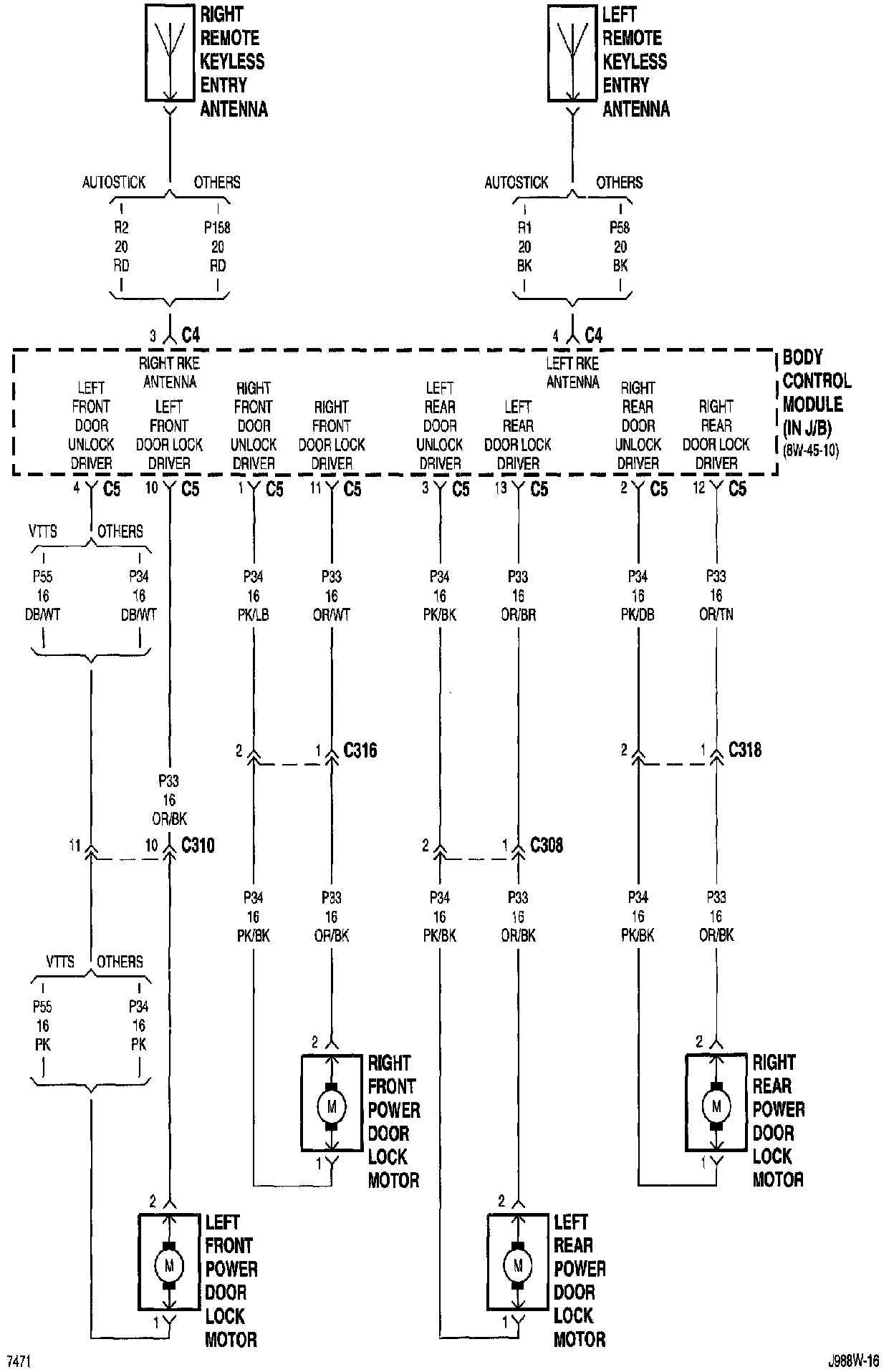

Power Door Locks (Part 2 Of 2):

NOTE: To view sheets referred in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
