Evaporator Temperature Sensor / Switch
Evaporator Temperature Sensor / Switch

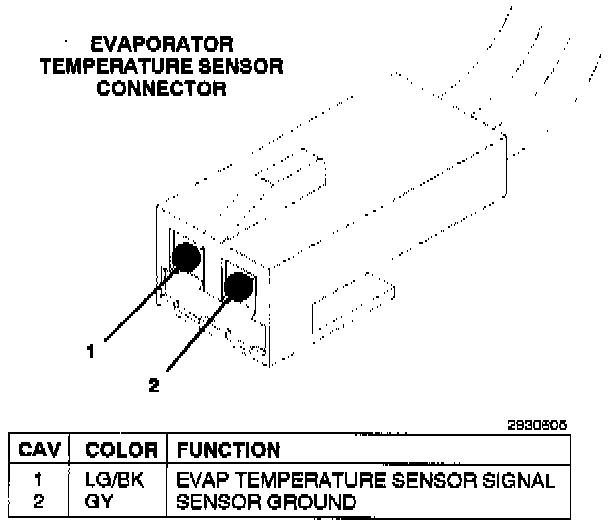

EVAP Temp Sensor Connector:
