Plymouth
>>
1998
>>
Neon L4-122 2.0L DOHC VIN Y SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Timing Components
>>
With Hydraulic Tensioner
With Hydraulic Tensioner

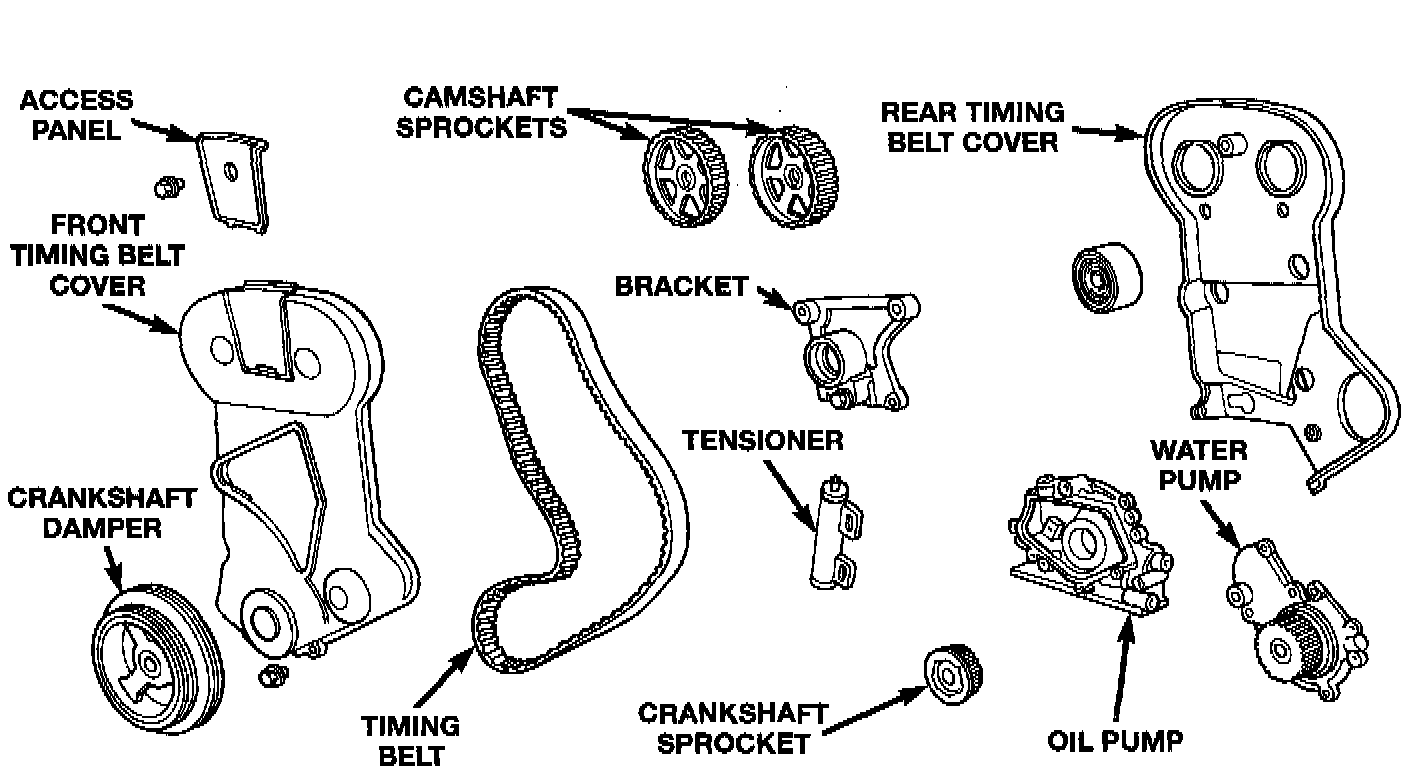

Timing Belt System-DOHC With Hydraulic Tensioner:
