Home
>>
Plymouth
>>
1998
>>
Neon L4-2.0L VIN C
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Powertrain Management
>>
Main Relay (Computer/Fuel System)
>>
ASD Relay Connector
ASD Relay Connector

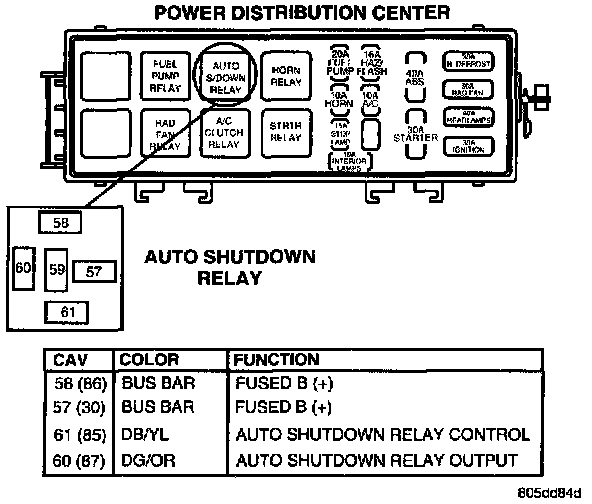

Power Distribution Center, Auto Shutdown Relay:
