Lighting and Horns: Locations

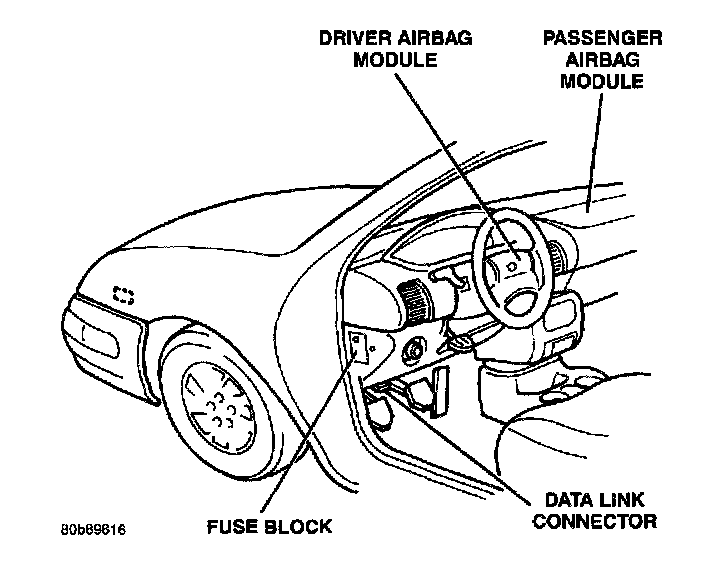

The Time Delay Relay is located in the Fuse Block.

Fuse/Fuse Block:

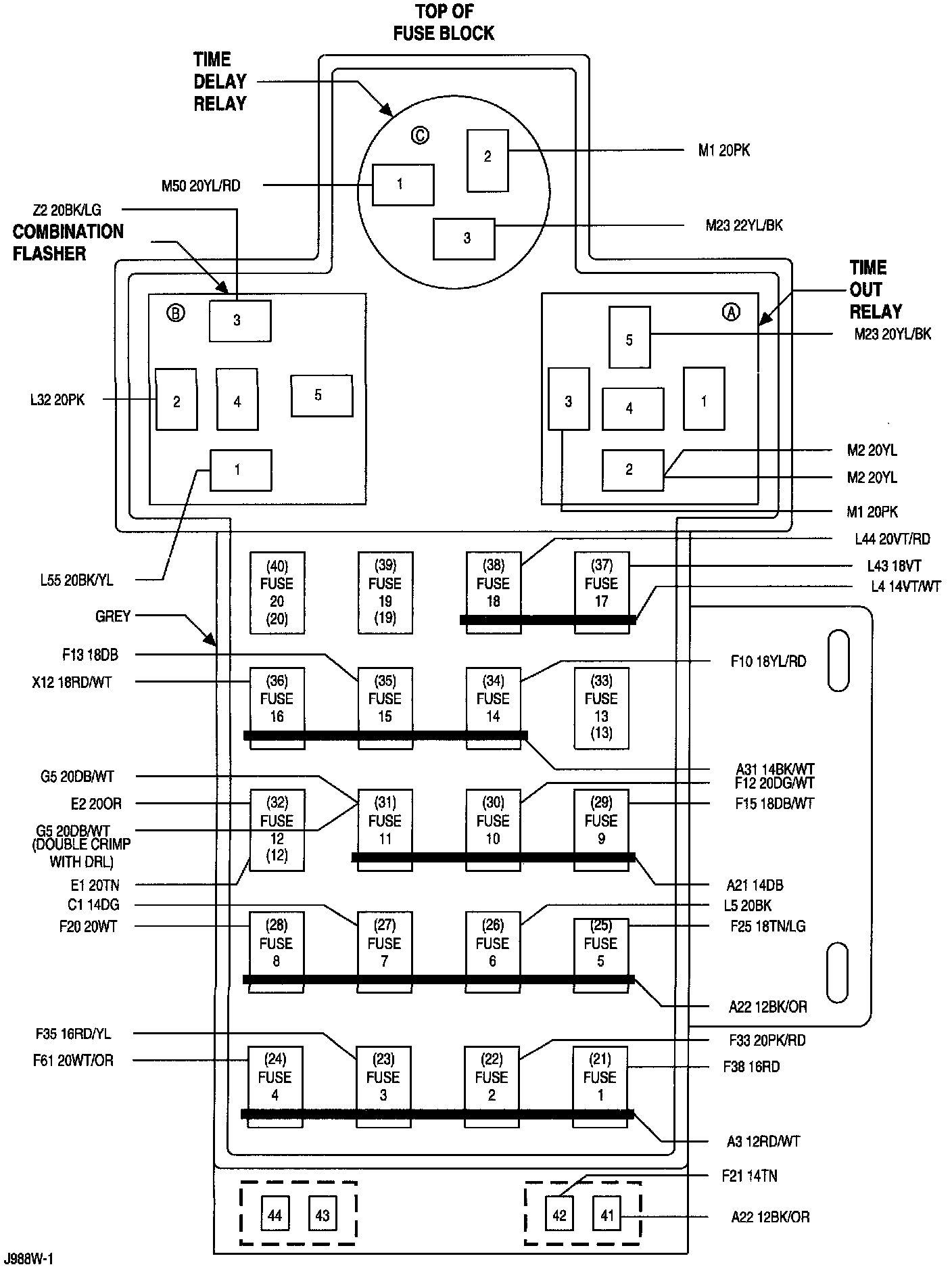

Fuse Block:
