NTC-14A Checking the Timing Belt Alignment
NTC-14A Checking the Timing Belt Alignment

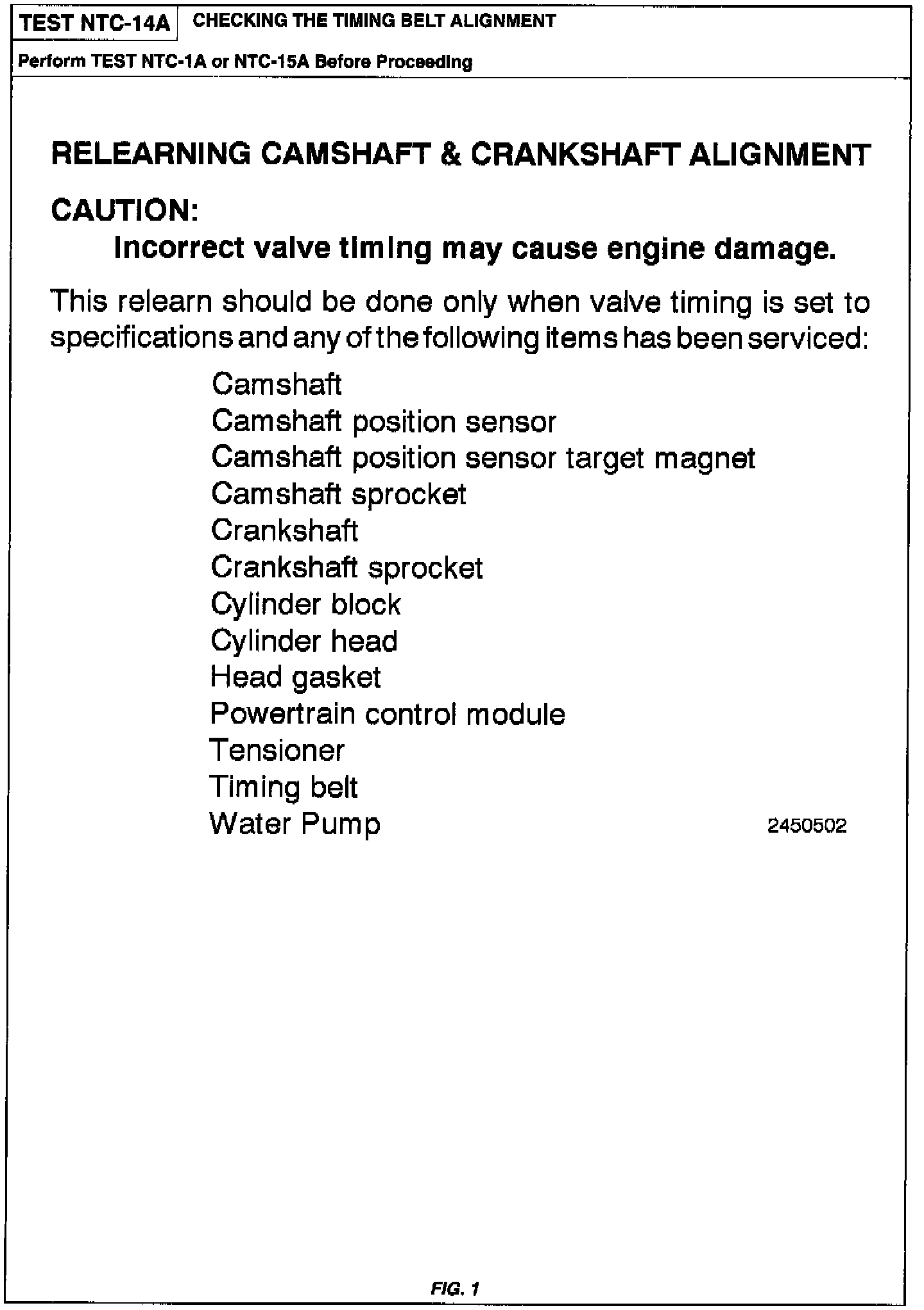

Related Image:

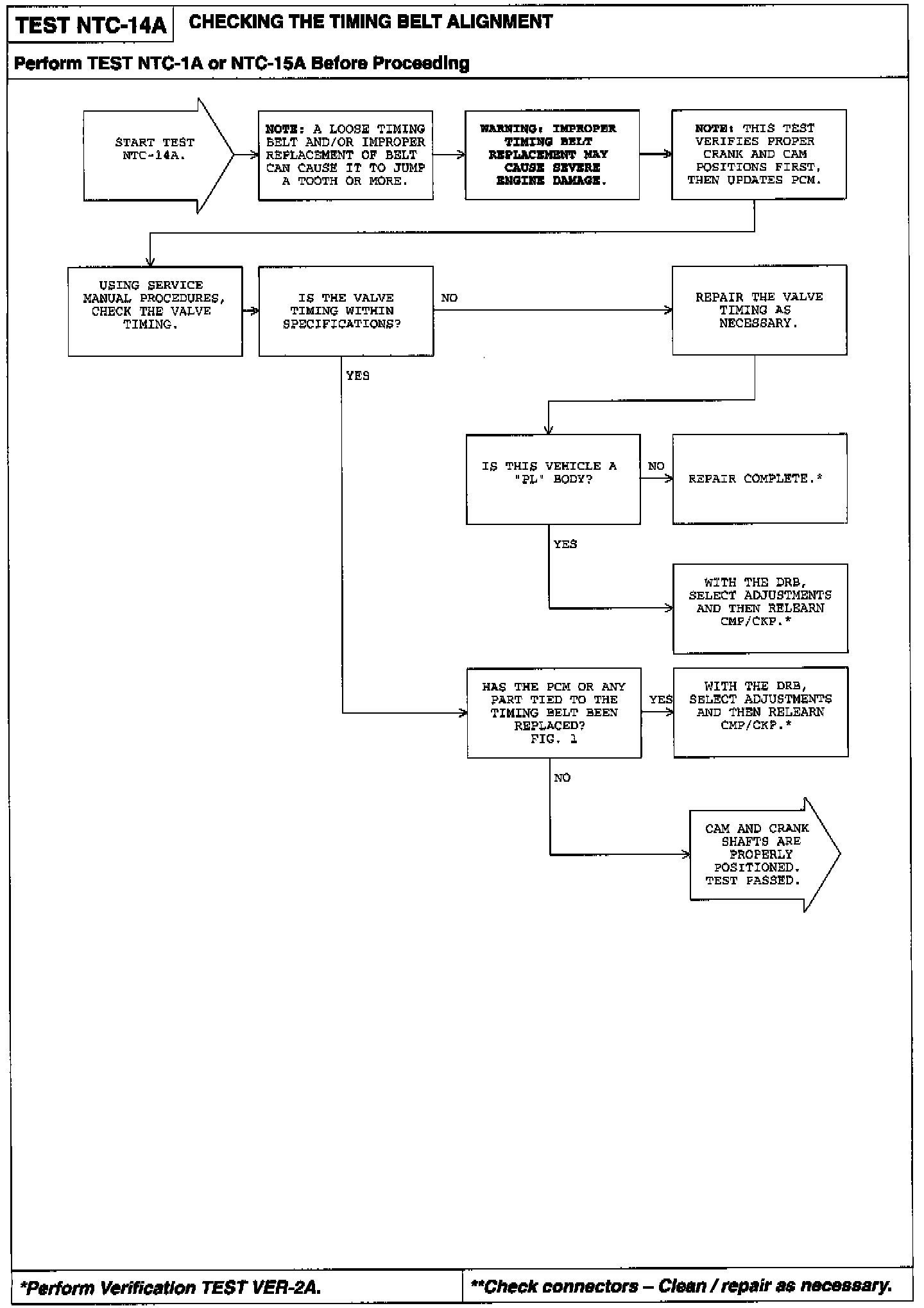

Diagnostic Chart:
