Charging System Tests

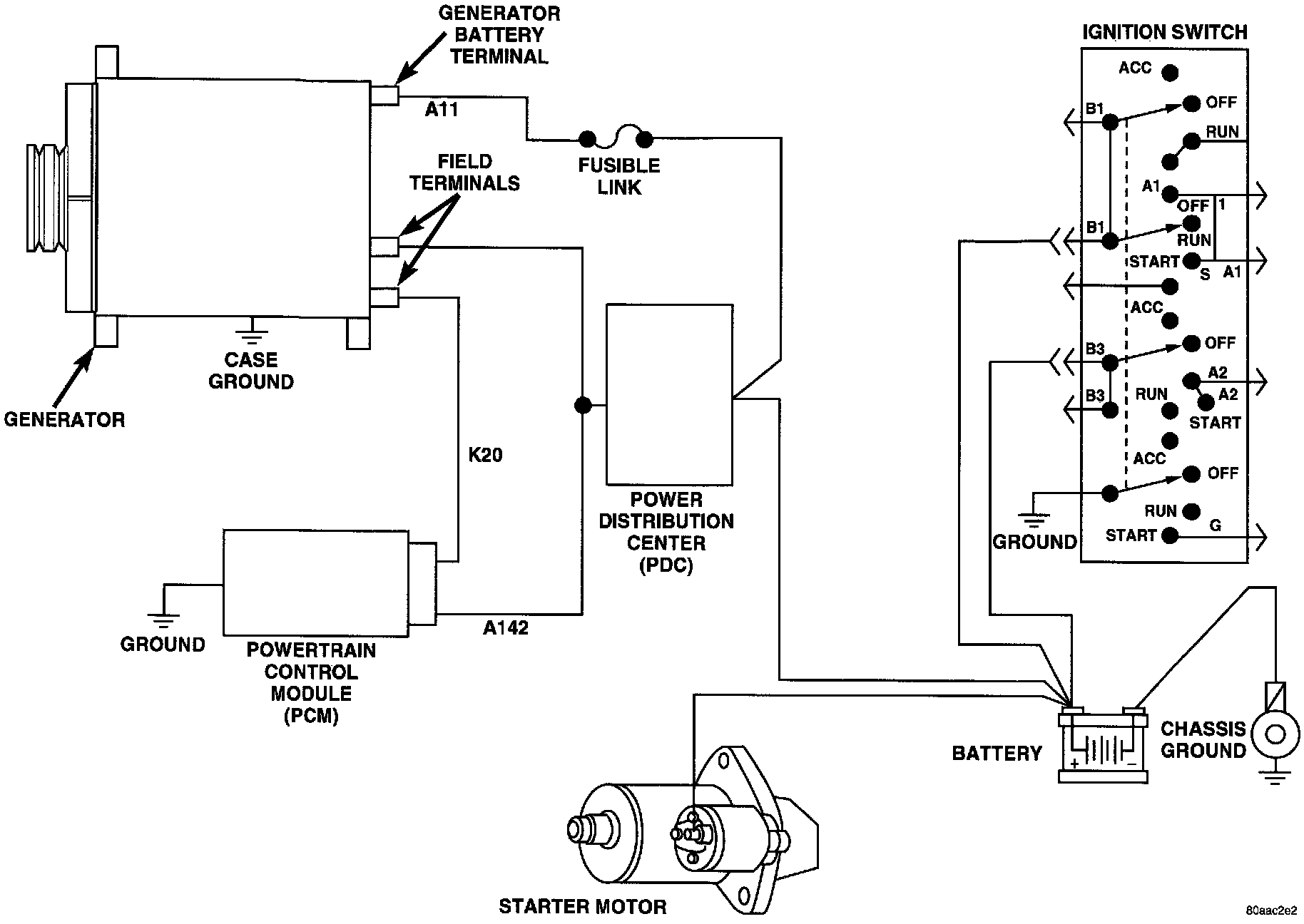

Charging System Schematic - Typical:

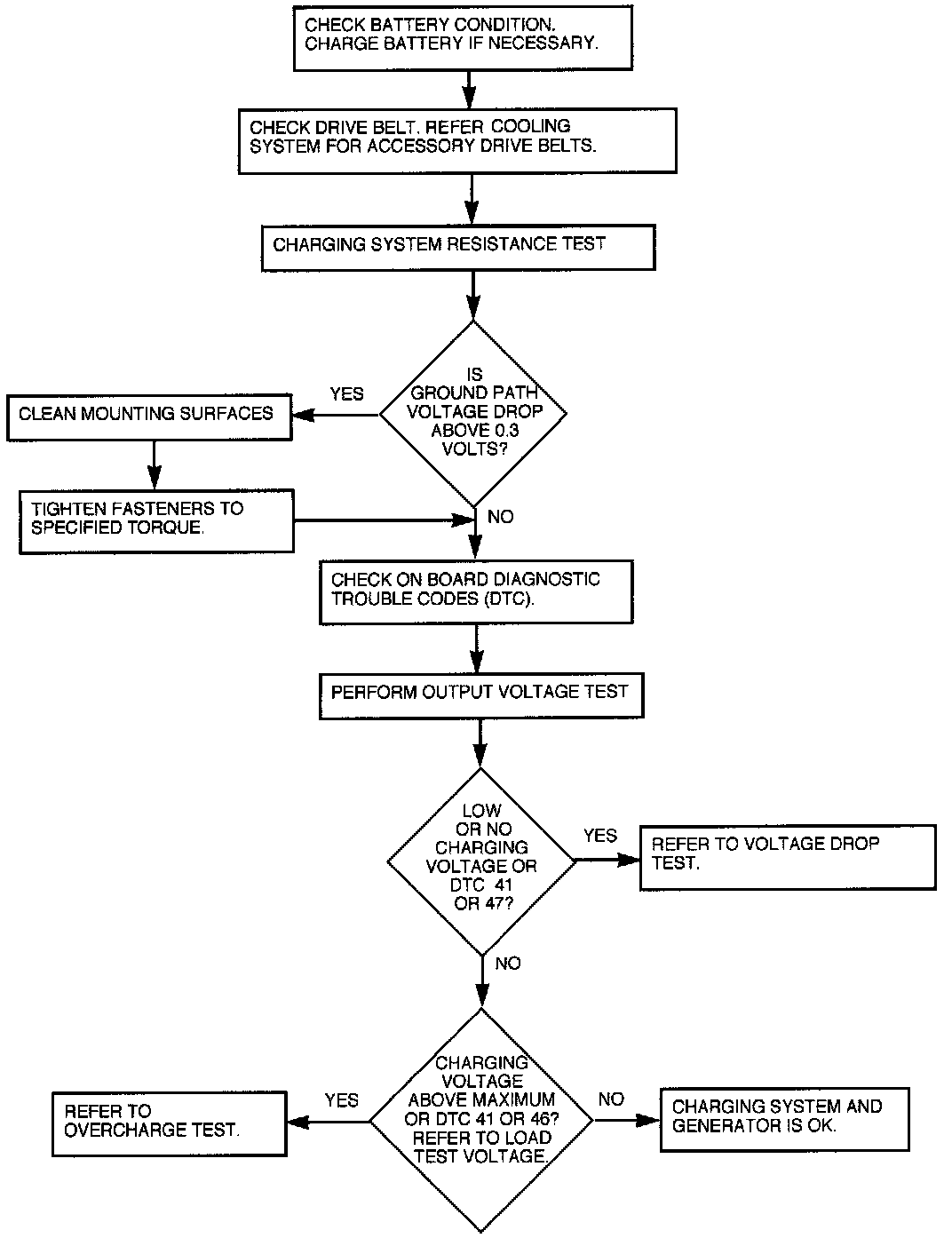

Charging System Resistance Tests:

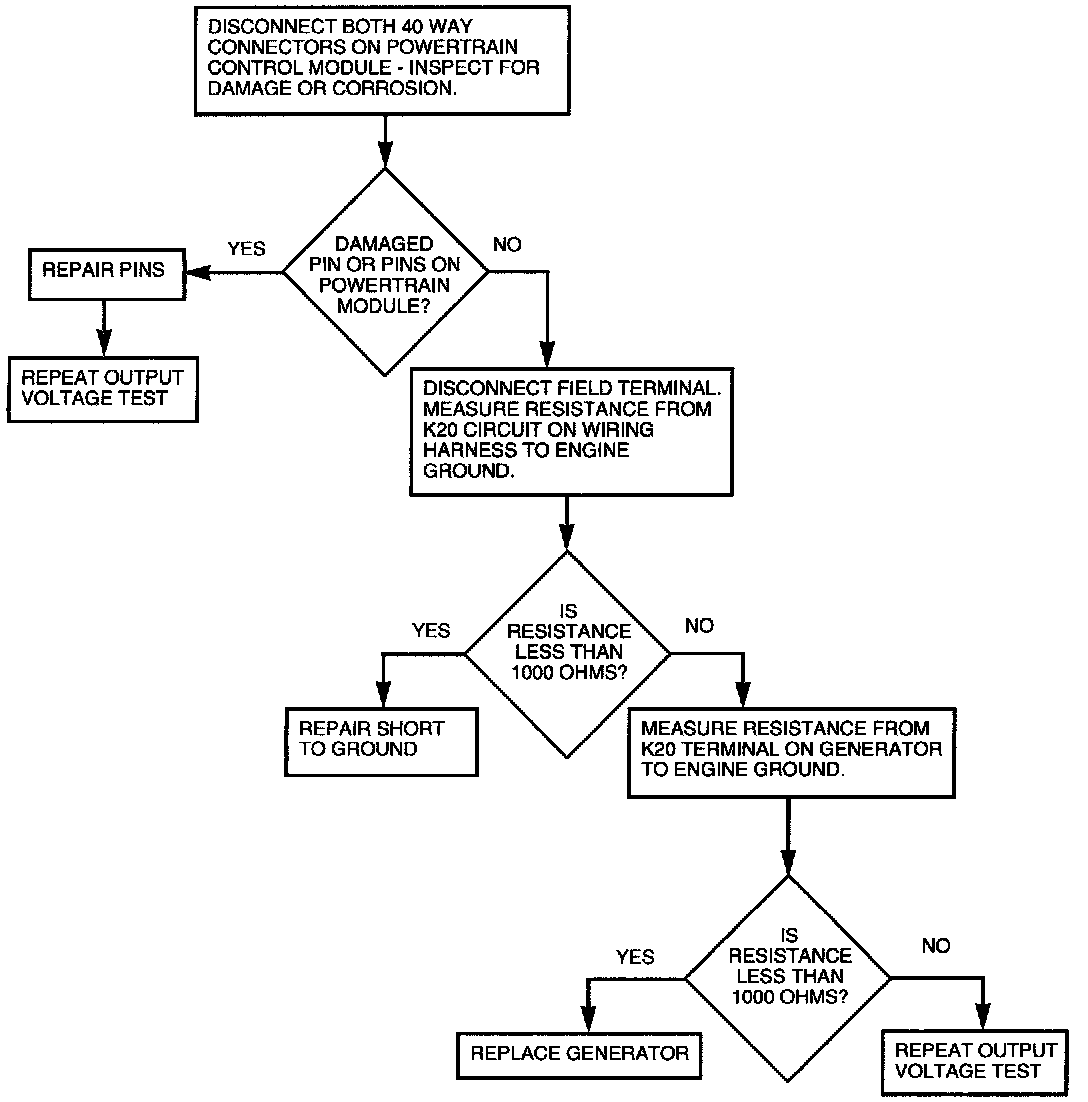

Overcharge Test:

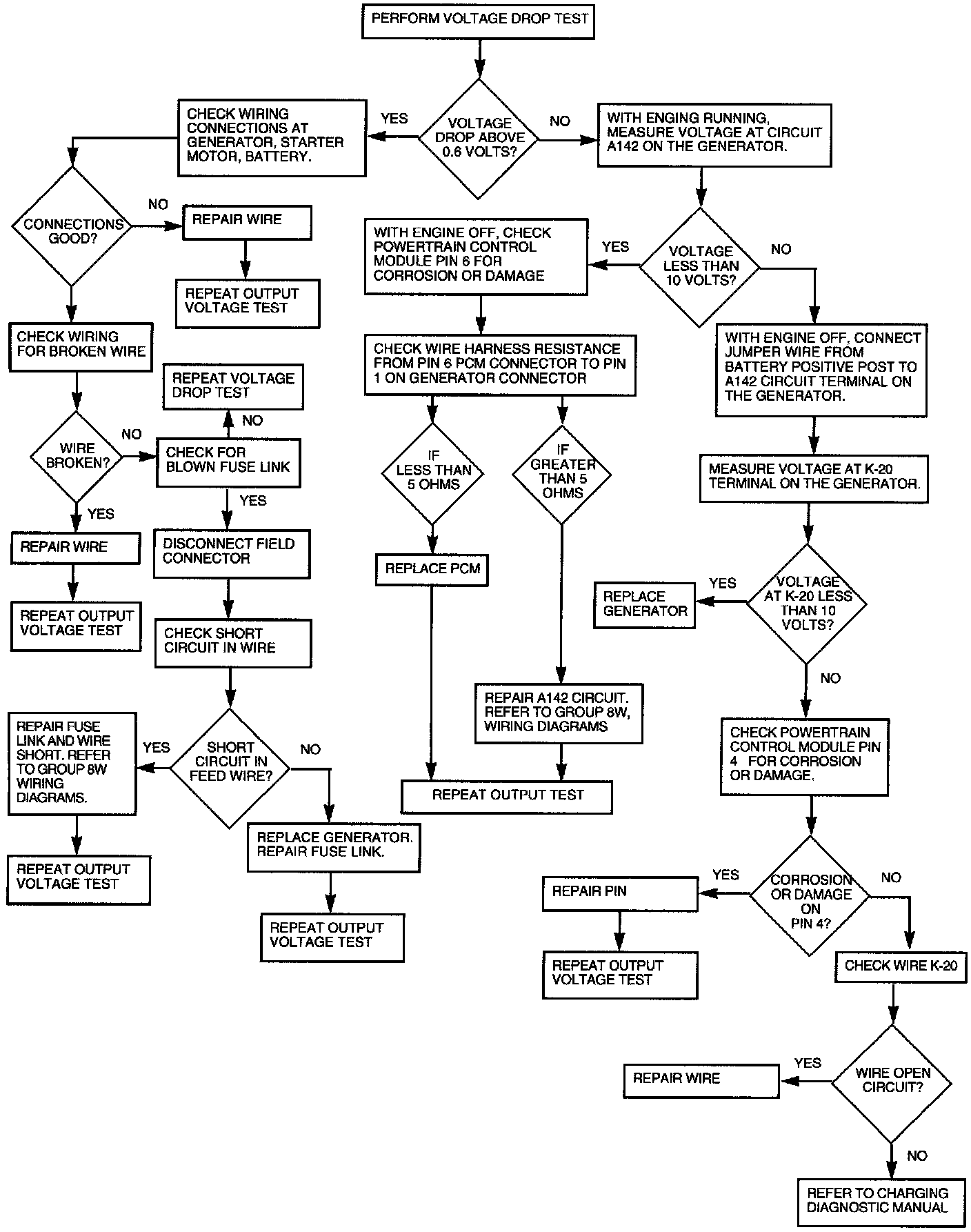

Voltage Drop Test:
