Clockspring Assembly / Spiral Cable, Air Bag

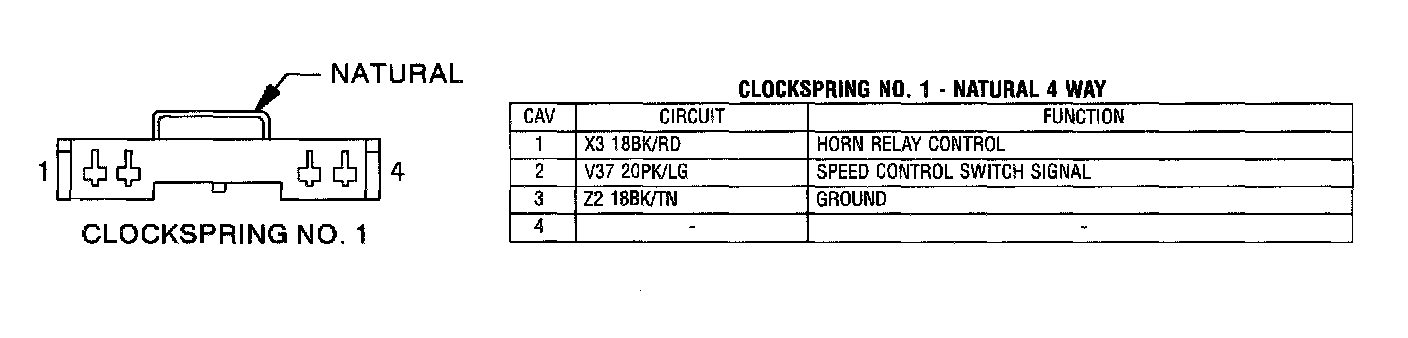

Clockspring No. 1 Natural 4 Way:

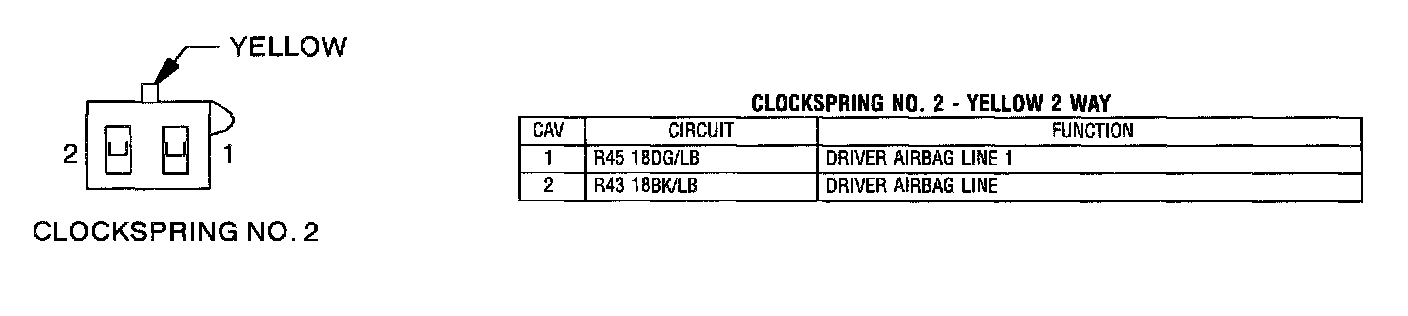

Clockspring No. 2 Yellow 2 Way:
