Plymouth
>>
1999
>>
Neon L4-2.0L VIN C
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Complete Body and Chassis Connector Views
>>
Sheet 8W-80-11
Sheet 8W-80-11

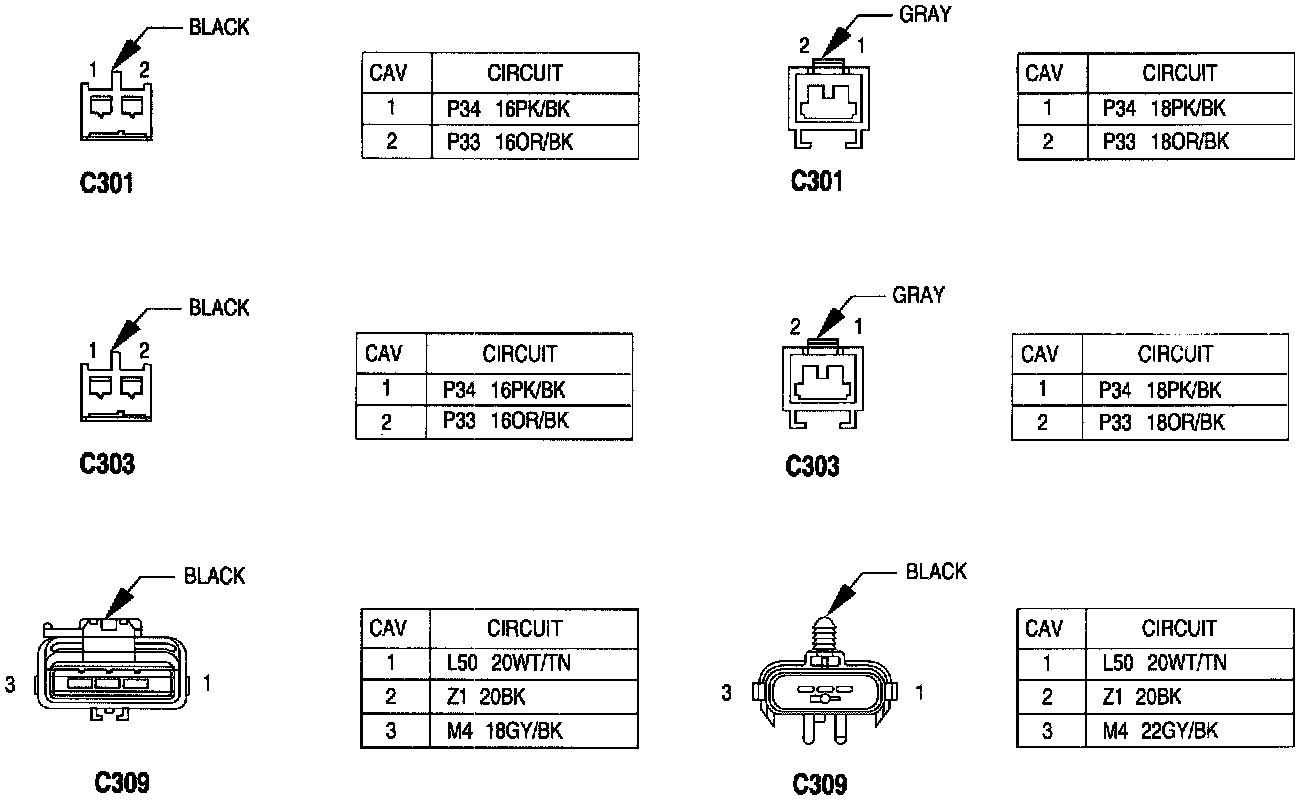

Connector Pinouts -- Sheet 8w-80-11:
