Operation CHARM
: Car repair manuals for everyone.
Home
>>
Plymouth
>>
1999
>>
Neon L4-2.0L VIN C
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Complete Body and Chassis Connector Views
>>
Sheet 8W-80-20
Sheet 8W-80-20

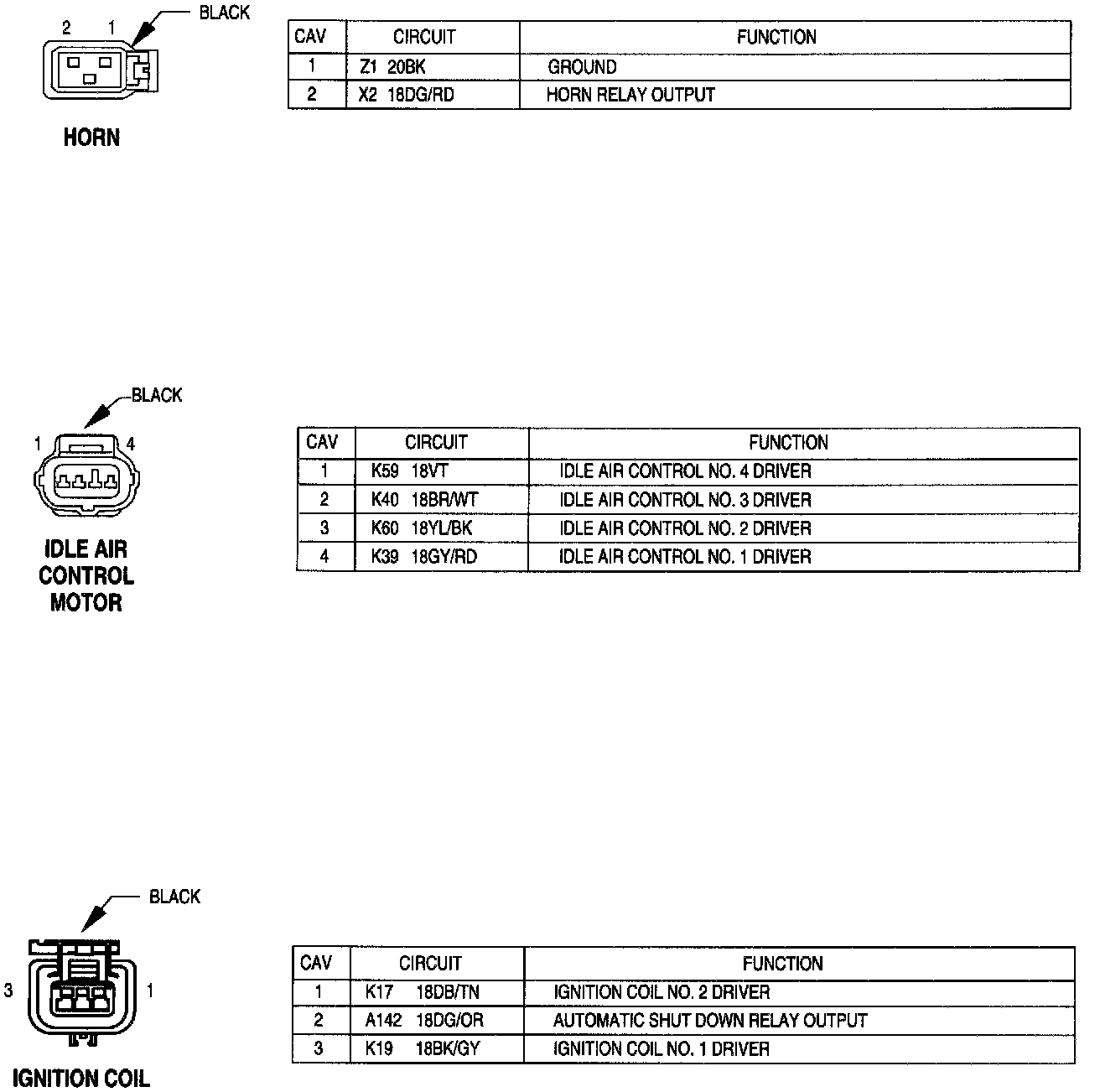

Connector Pinouts -- Sheet 8w-80-20:
