Neon L4-2.0L VIN C
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Complete Body and Chassis Connector Views
>>
Sheet 8W-80-23
Sheet 8W-80-23

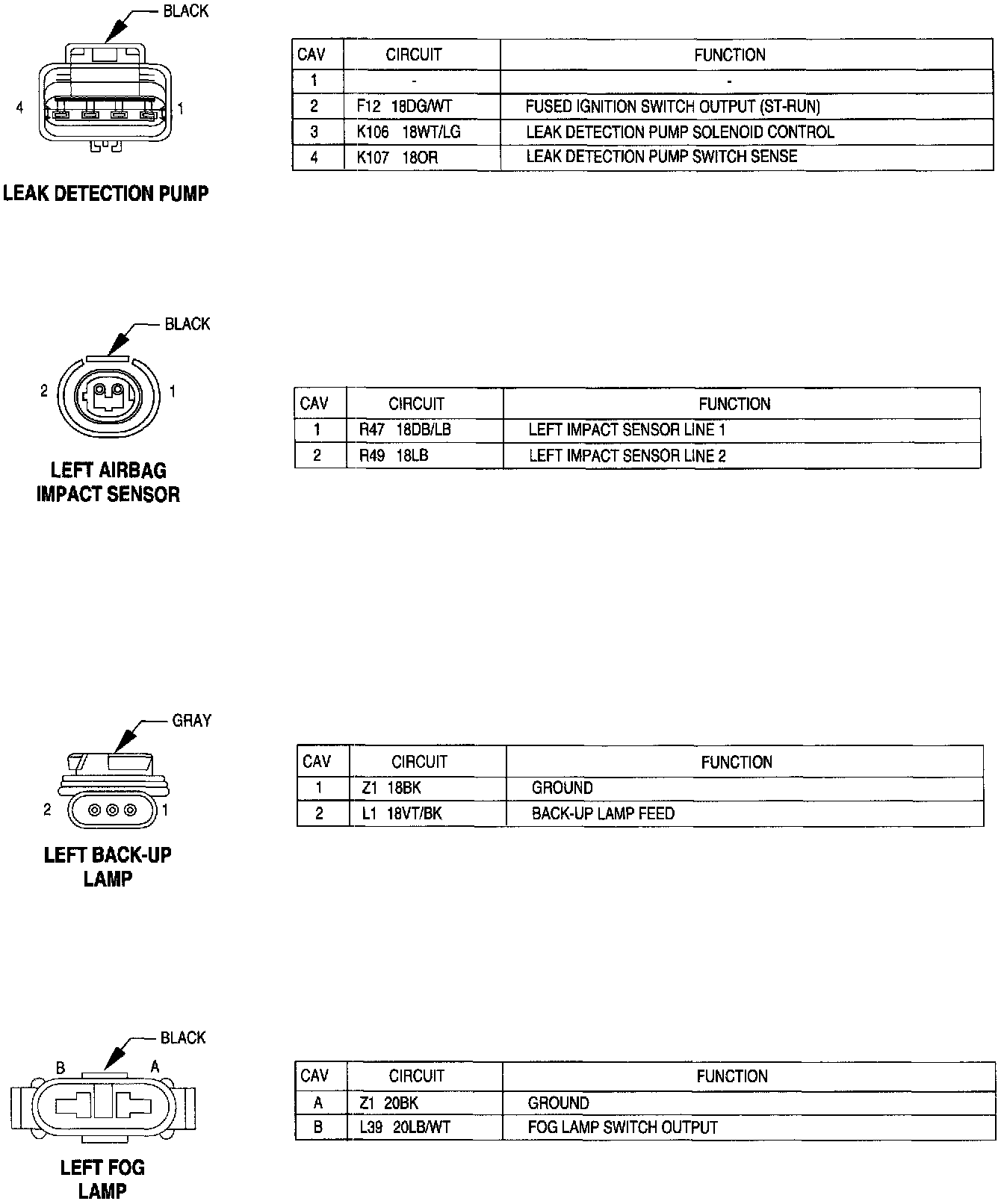

Connector Pinouts -- Sheet 8w-80-23:
