Electrical Accessory Panel

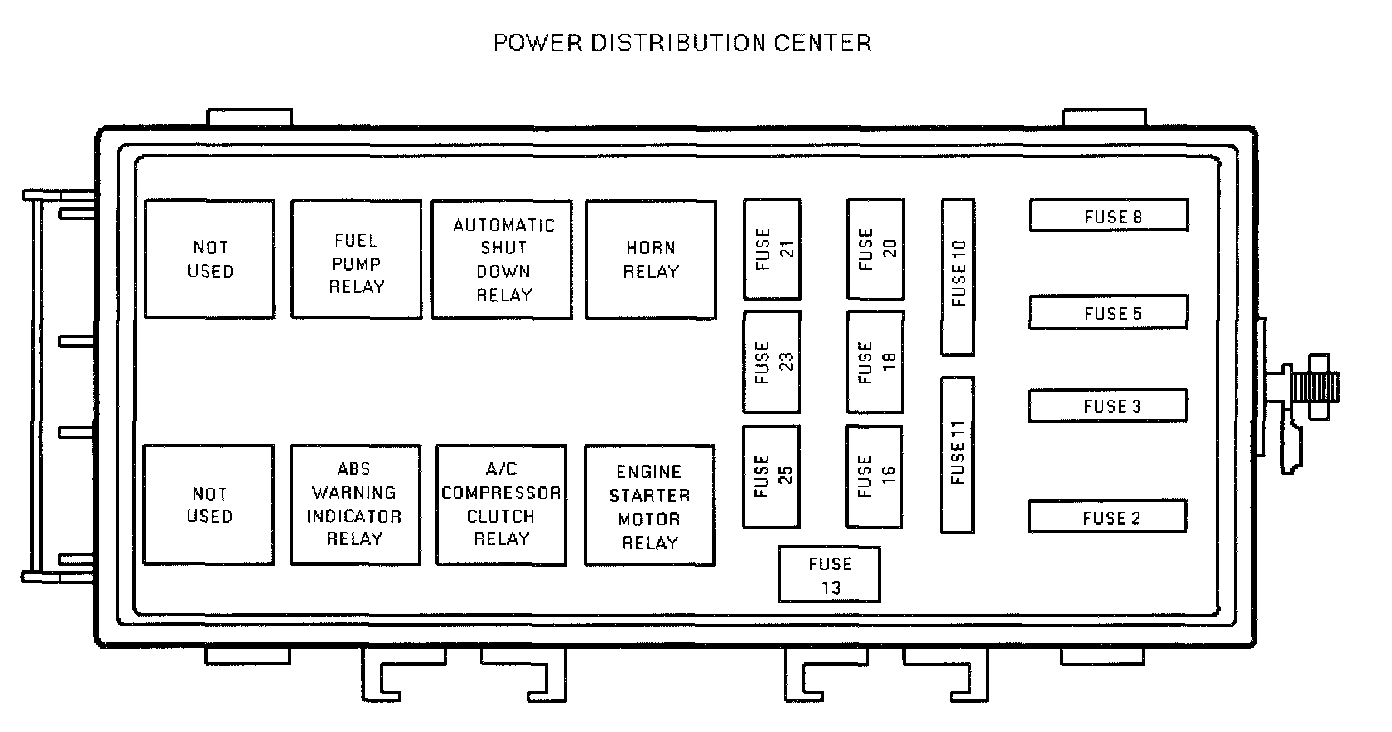

Power Distribution Center

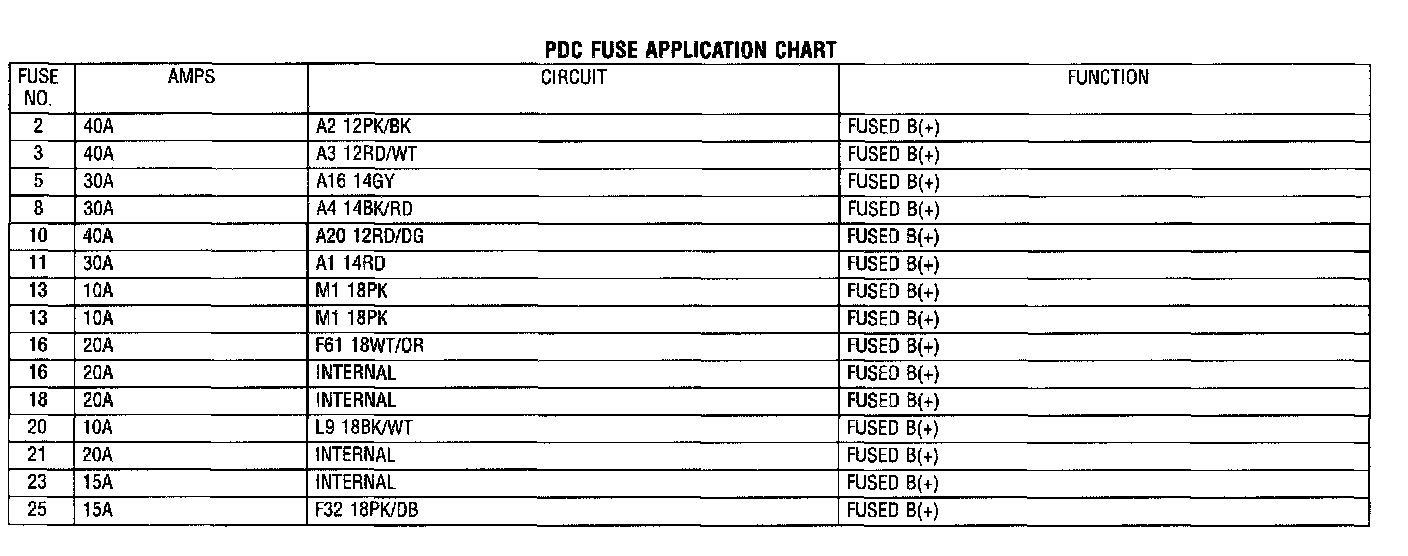

[1][2]PDC Fuse Application Chart

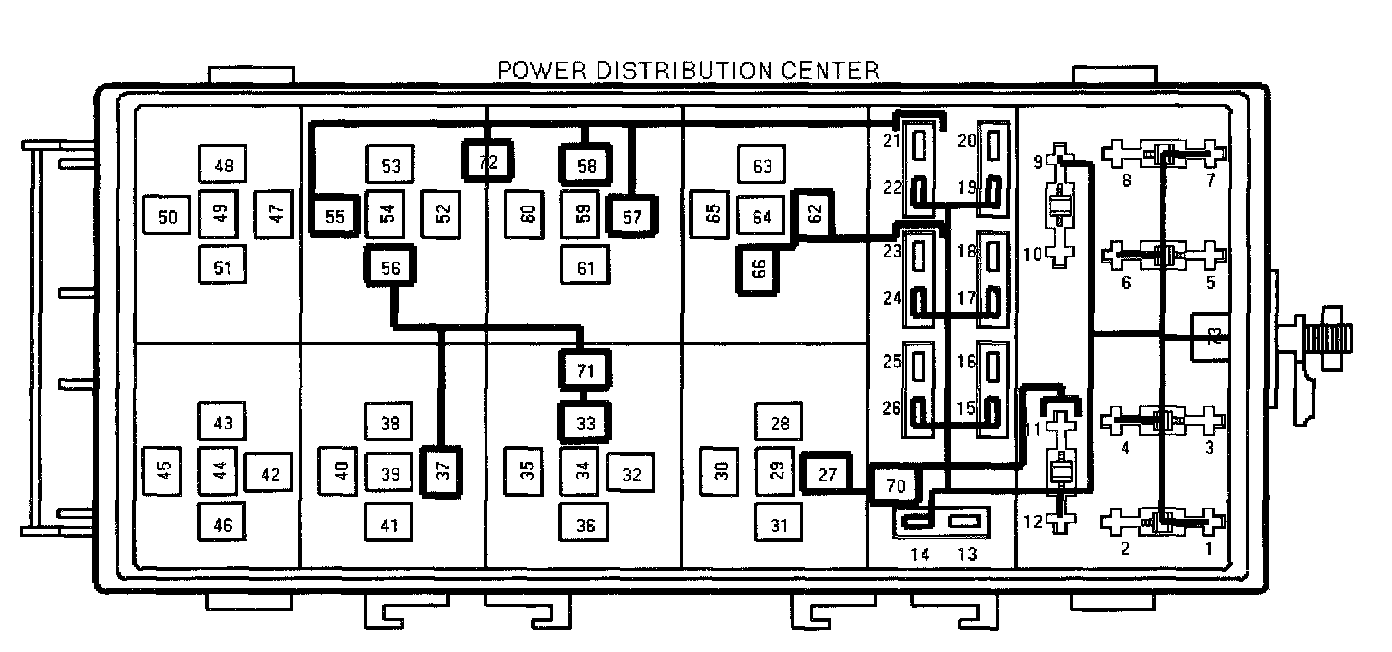

Power Distribution Center

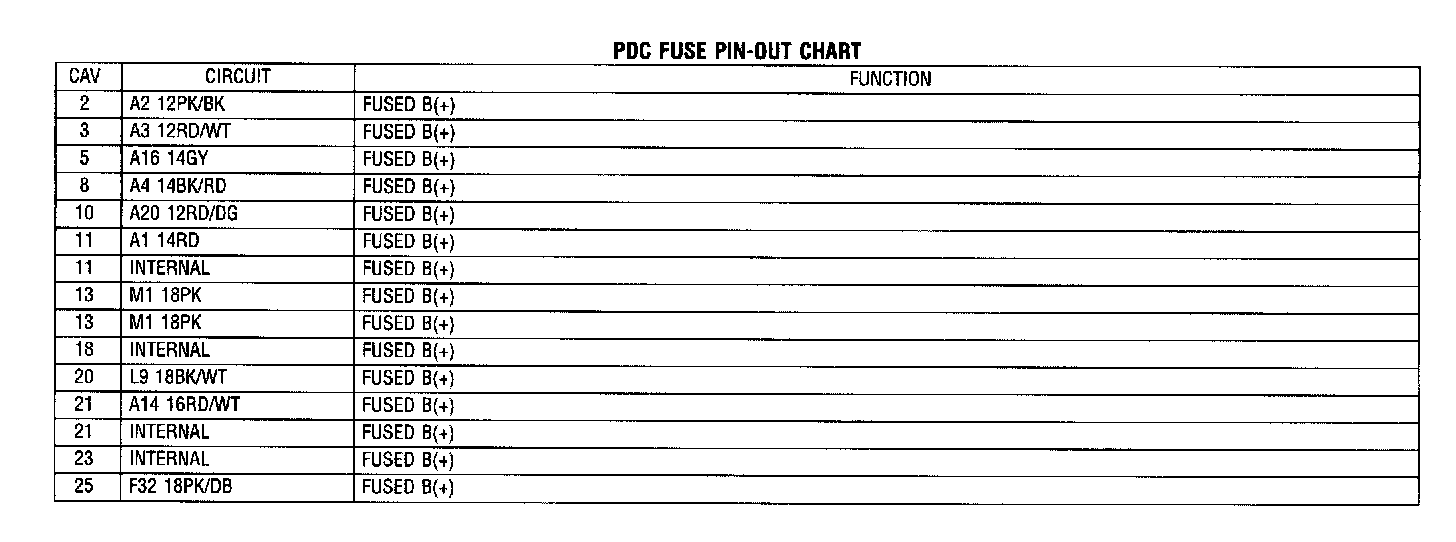

[1][2]PDC Fuse Pin-Out Chart

Power Distribution Center

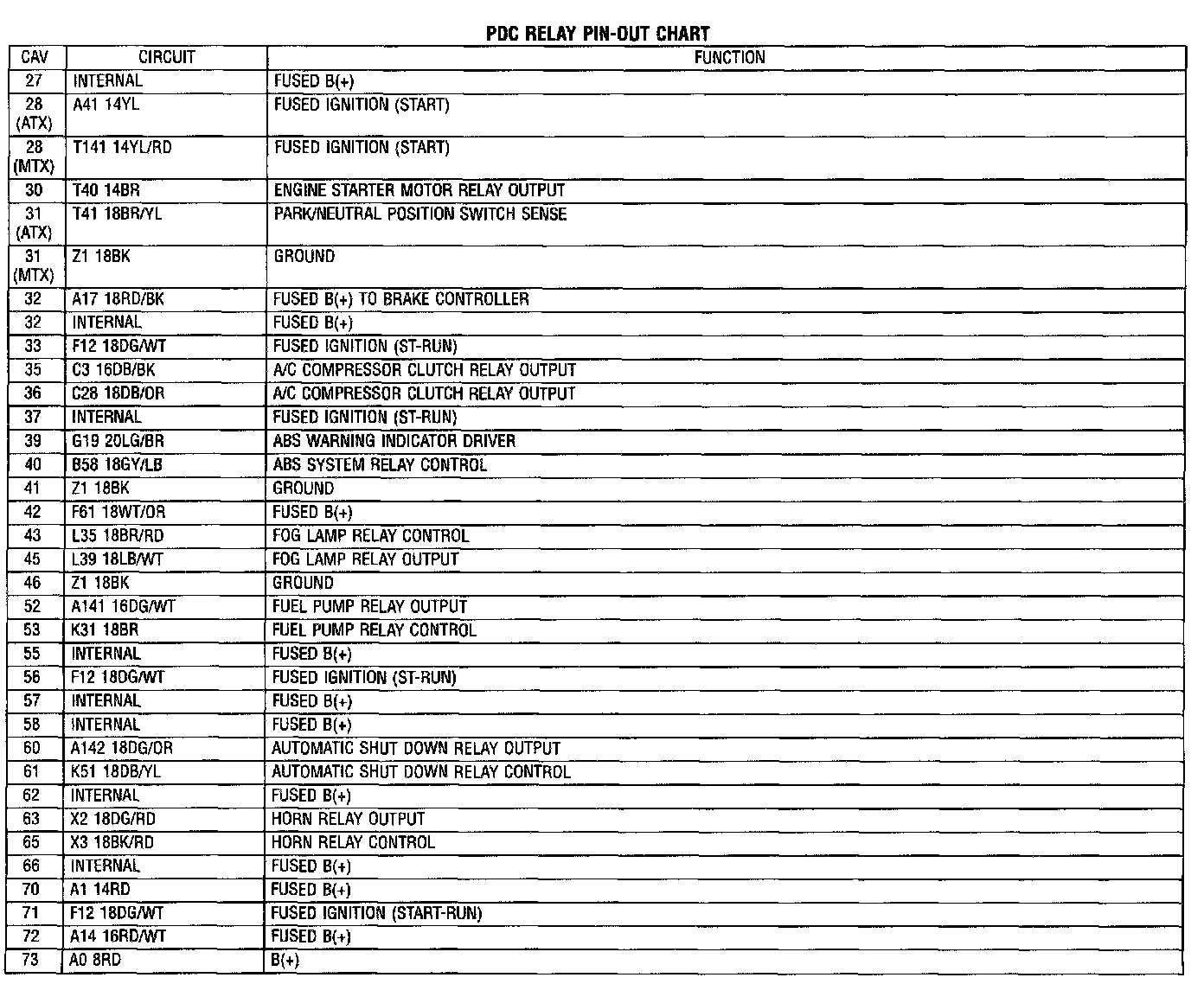

[1][2]PDC Relay Pin-Out Chart
