Home >> Plymouth >> 1999 >> Neon L4-2.0L VIN C >> Repair and Diagnosis >> Diagrams >> Connectors >> Figure 16

Figure 16

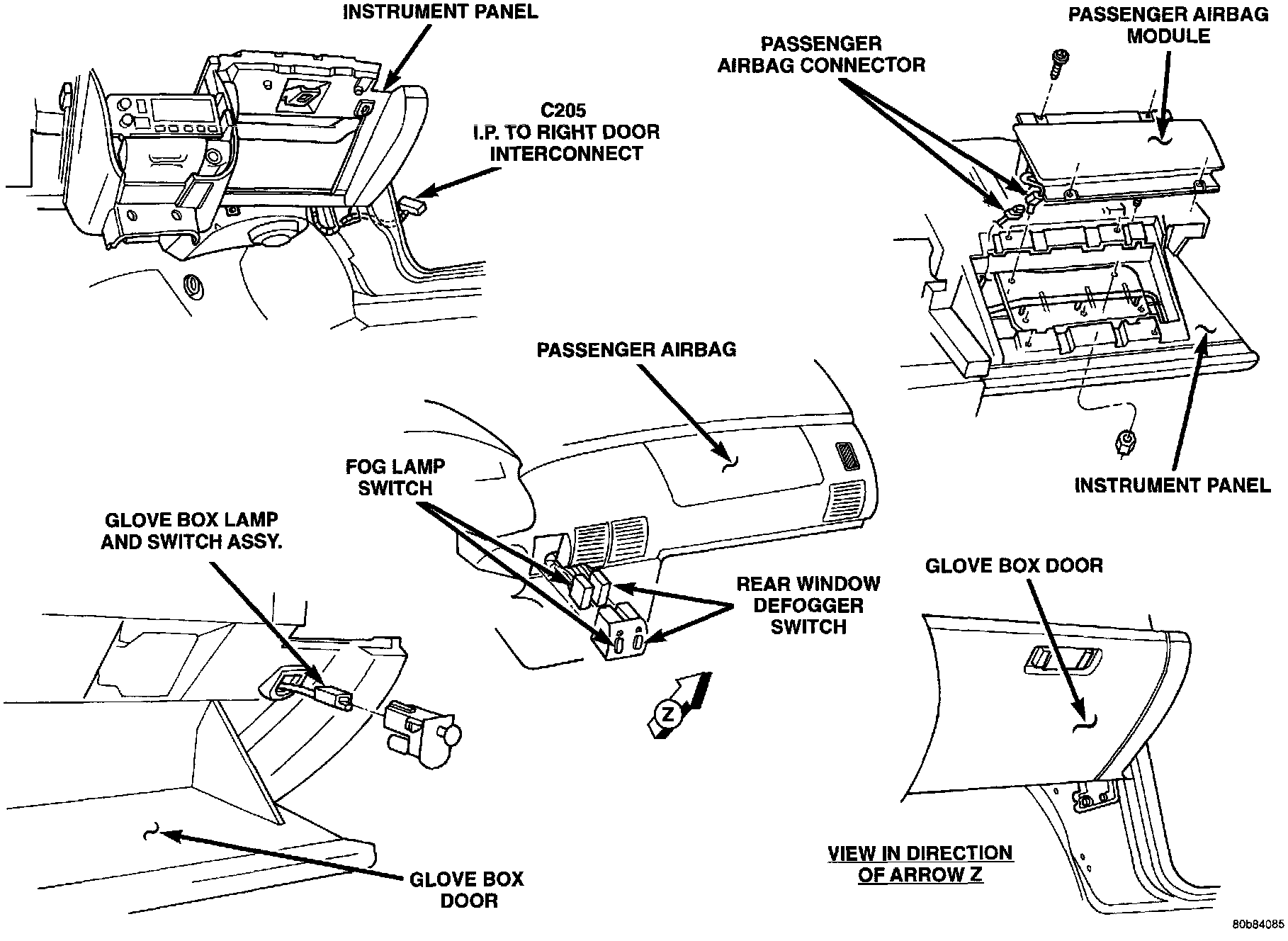

Instrument Panel Connections (Right Side):
