Home >> Plymouth >> 1999 >> Neon L4-2.0L VIN C >> Repair and Diagnosis >> Diagrams >> Connectors >> Figure 5

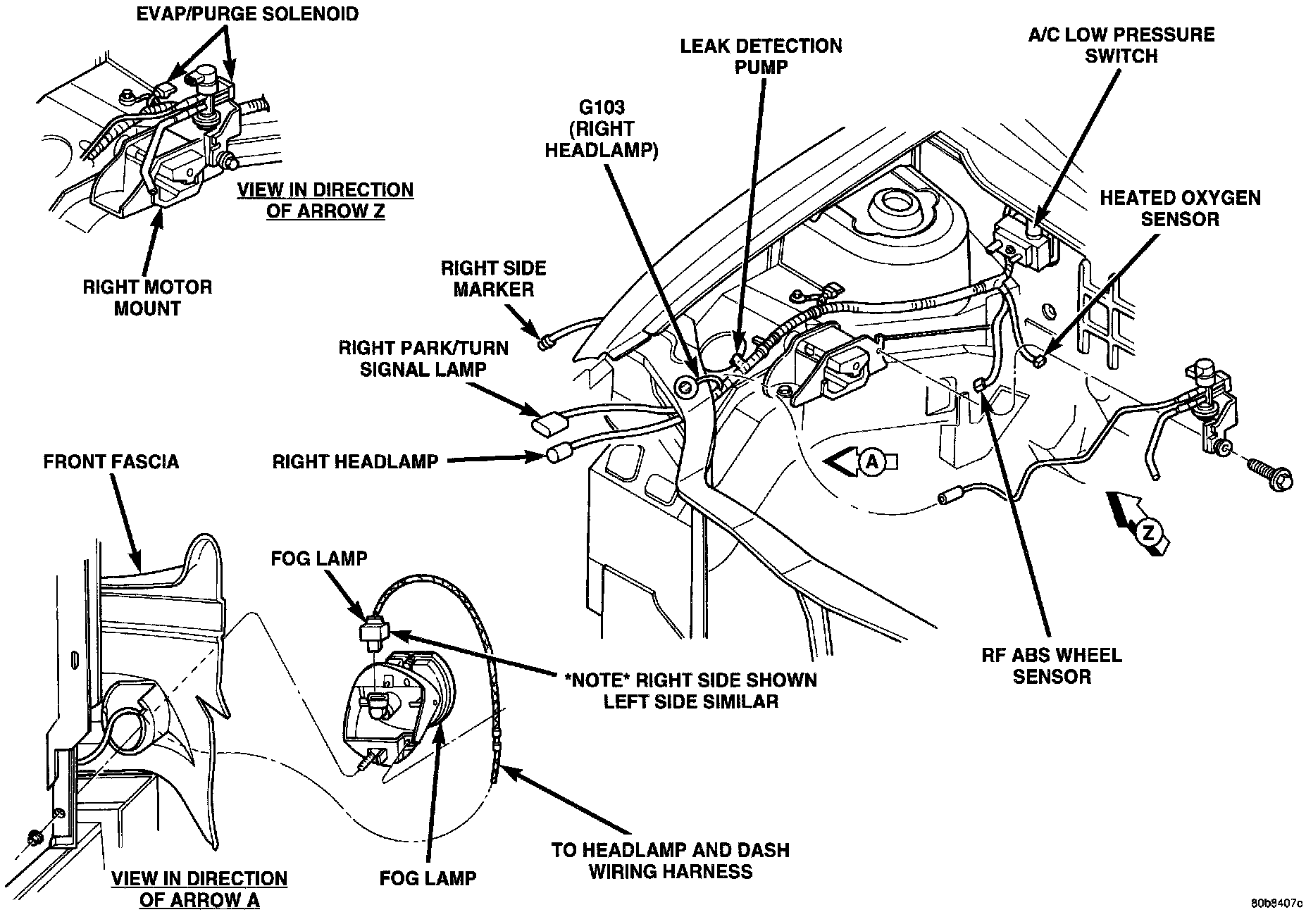

Figure 5

Engine Compartment Connections (Right Side):
