Home >> Plymouth >> 1999 >> Neon L4-2.0L VIN C >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Group Number >> Group 8W-11 Fuse/Fuse Block >> Sheet 8W-11-6

Sheet 8W-11-6

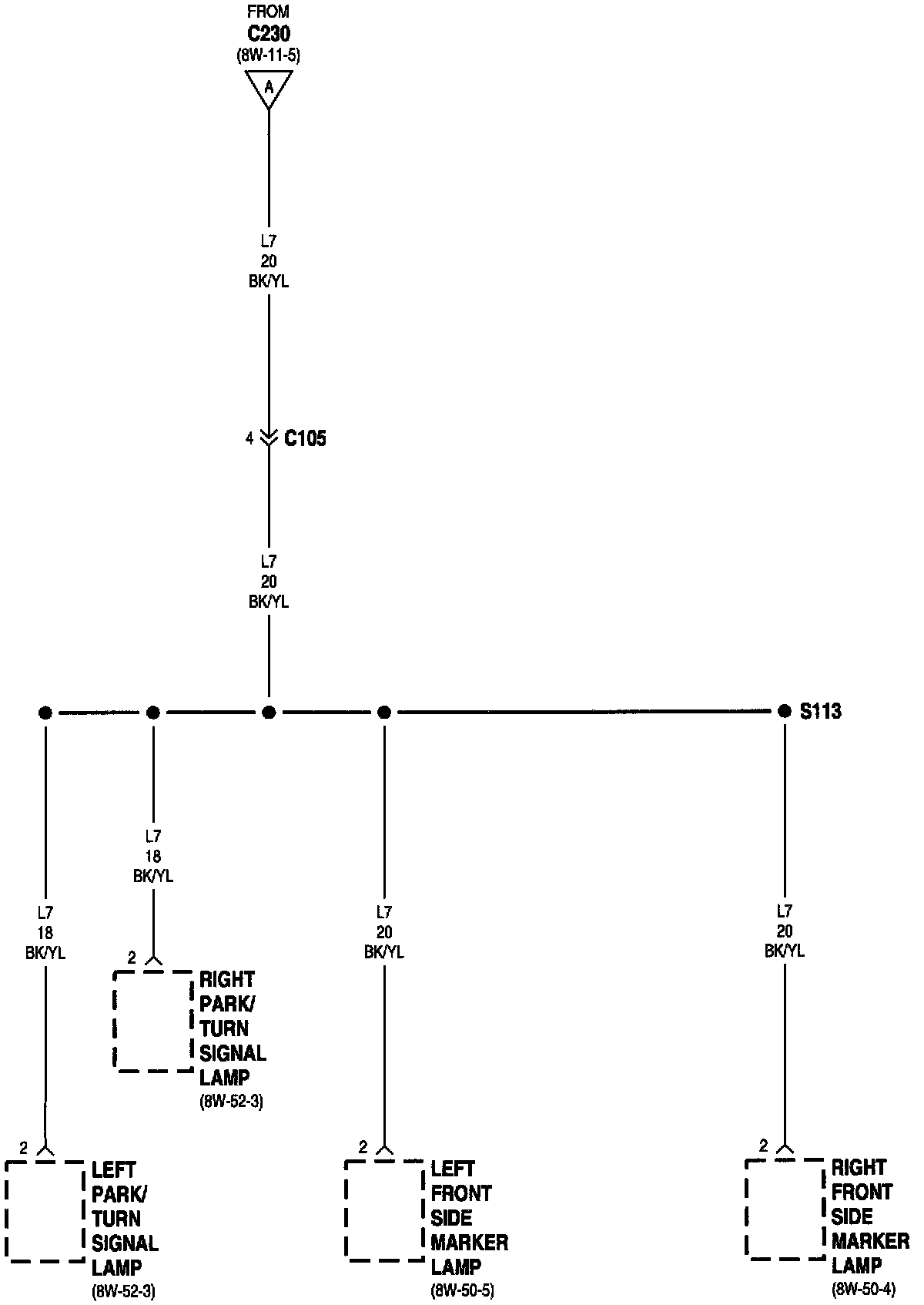

Fuse Block System -- Sheet 8w-11-6:
