Radio/Stereo: Service and Repair

REMOVAL

Center Bezel Removal:

1. Remove center bezel by pulling straight back.

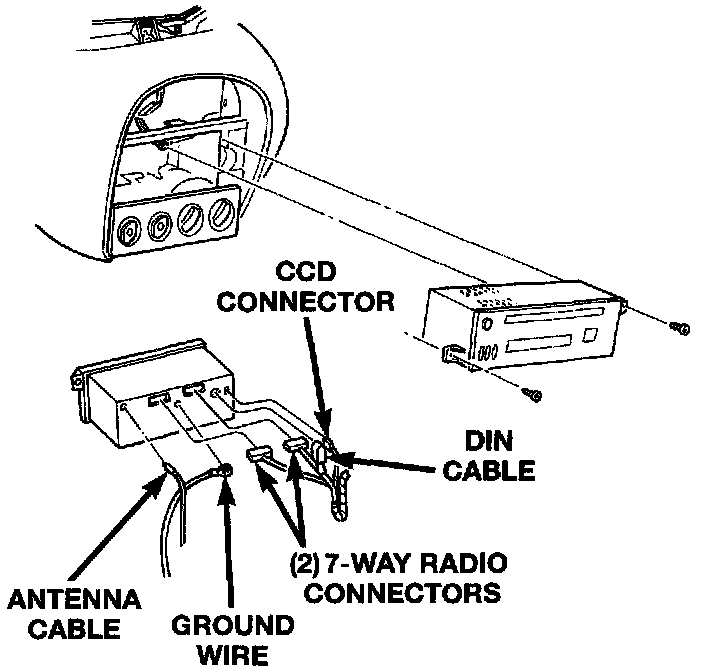

Radio Assembly:

2. Remove two radio mounting screws.
3. Ensure that the radio and ignition switch are OFF. DO NOT disconnect the radio with ignition switch ON.
4. Pull radio from panel and disconnect wire connectors and antenna lead from radio.
5. Remove radio.

INSTALLATION
- For installation, reverse the above procedure.
