Door/Trunk Ajar Indicator/Lamp
Door/Trunk Ajar Indicator/Lamp
Left Door Ajar Switch:

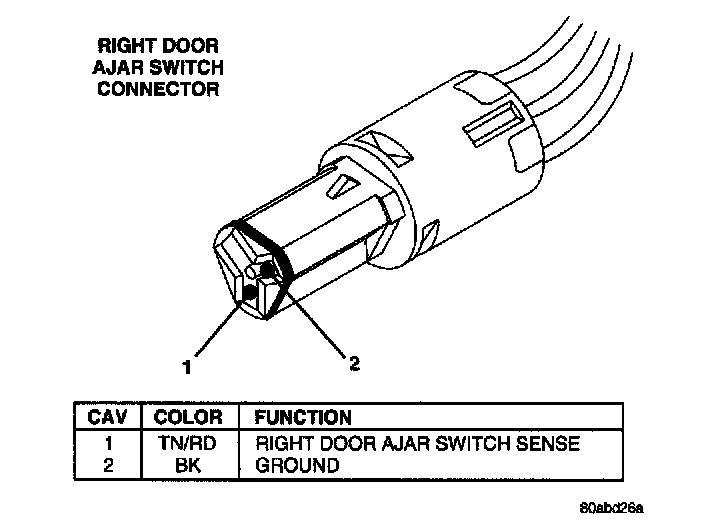

Right Door Ajar Switch:

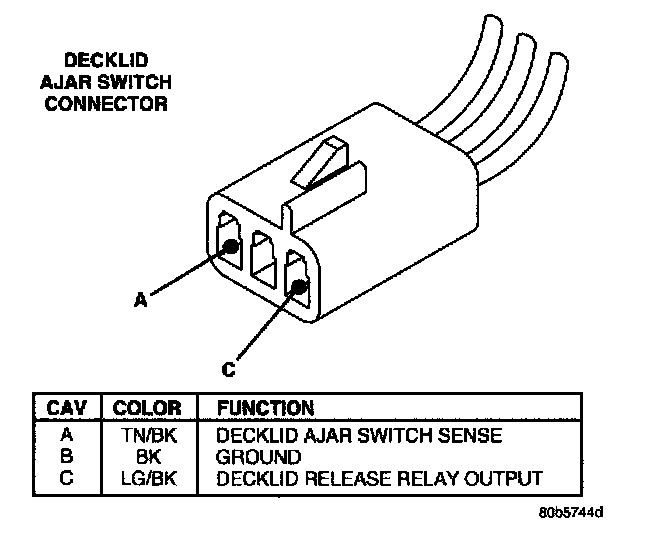

Decklid Ajar Switch:

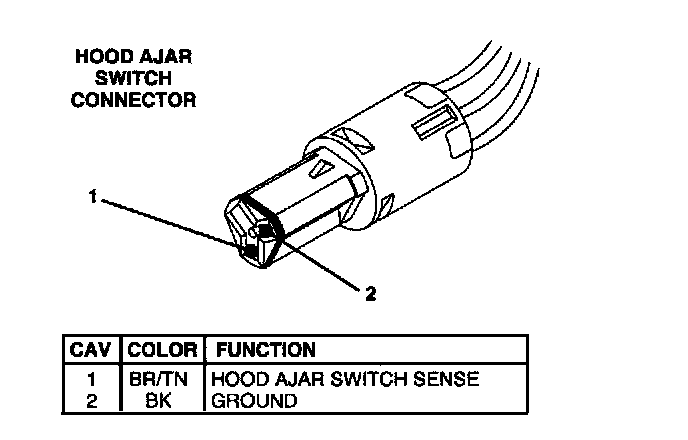

Hood Ajar Switch:
