Home >> Plymouth >> 1999 >> Prowler V6-3.5L VIN G >> Repair and Diagnosis >> Diagrams >> Connectors >> Figure 23

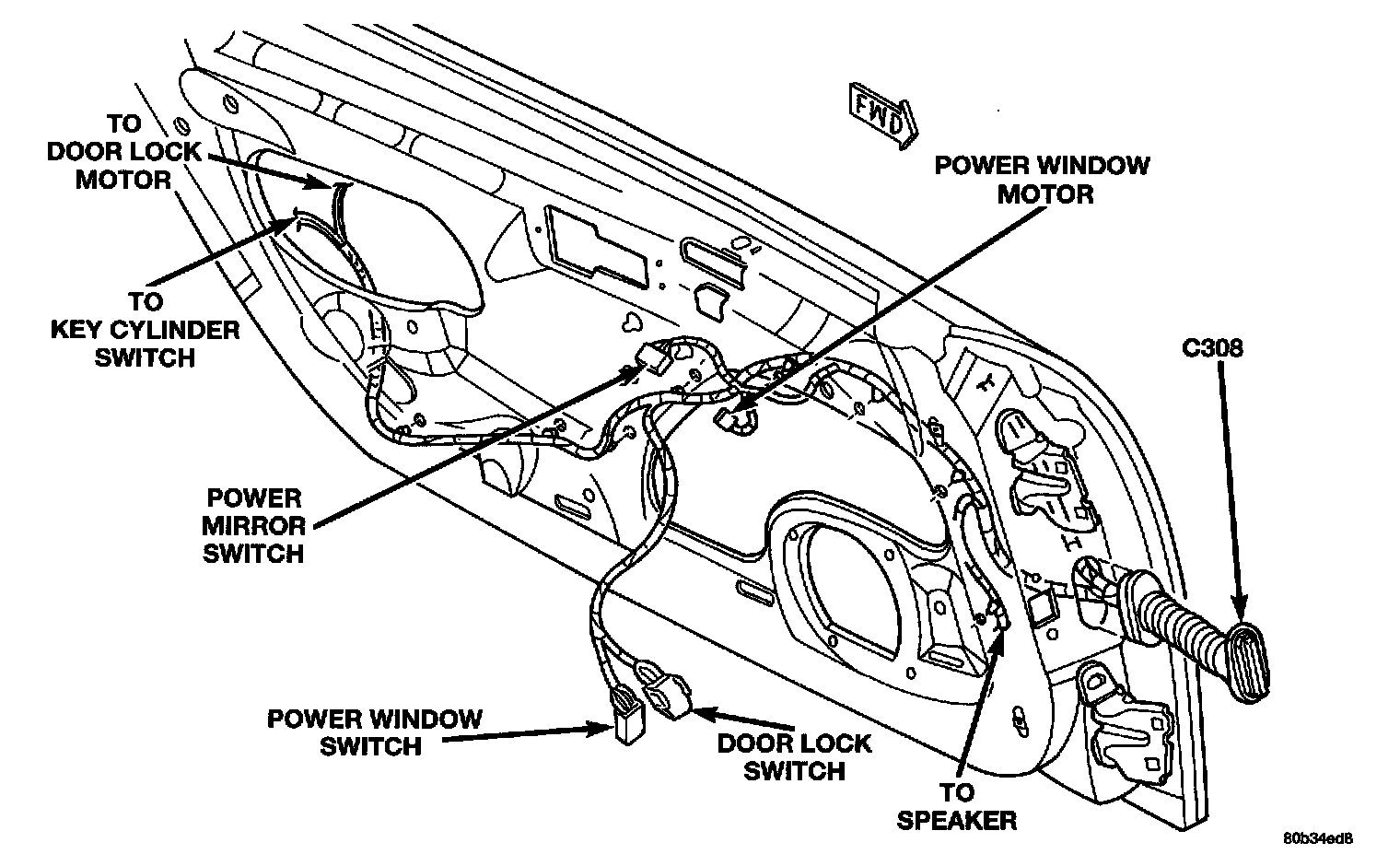

Figure 23

Left Front Door:
