Wiring Diagrams

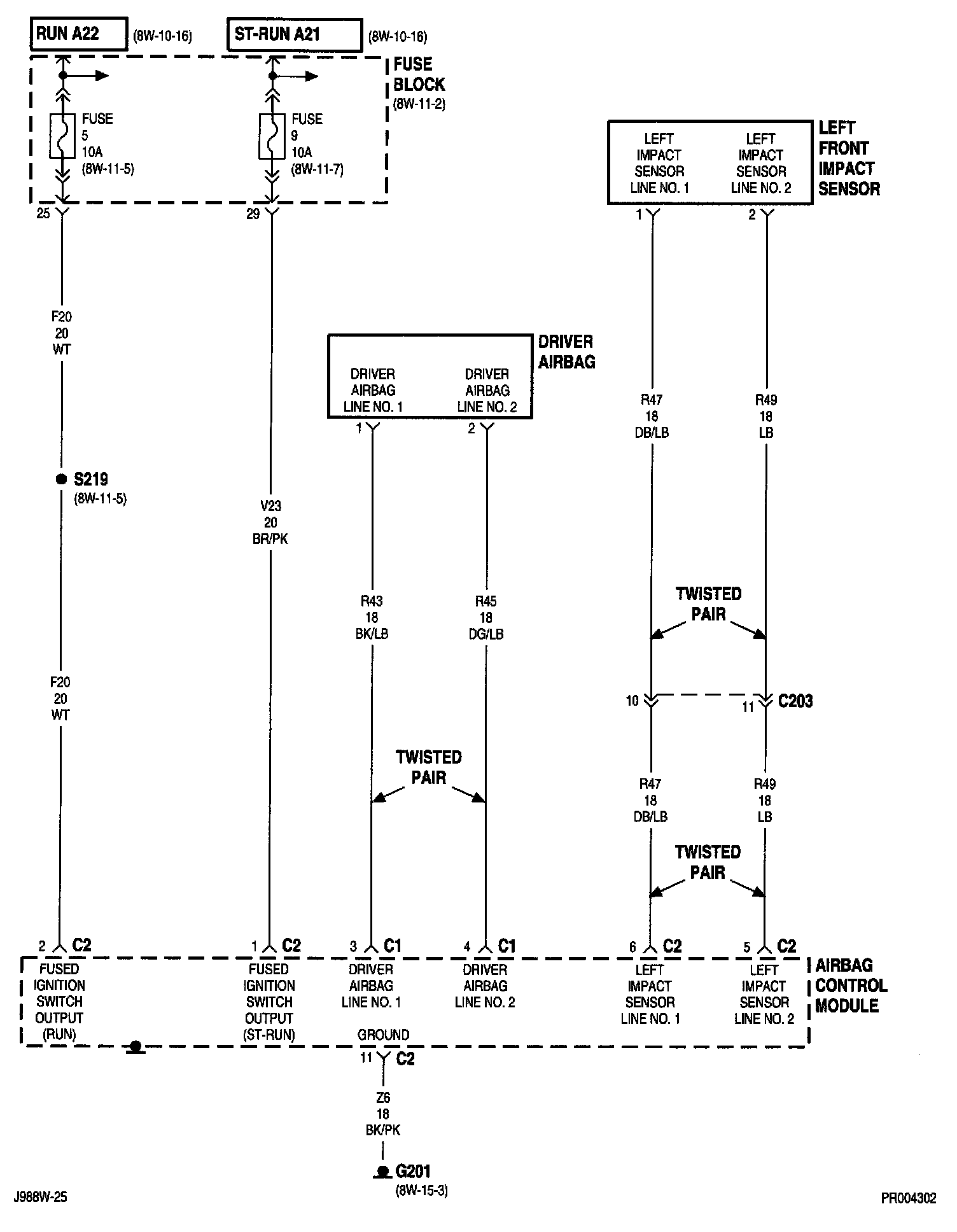

8W-43-02:

Airbag Control Module
Driver Airbag
Fuse 5 (FB)
Fuse 9 (FB)
Fuse Block
G201
Left Front Impact Sensor

8W-43-03:

Airbag Control Module
Airbag Warning Indicator
Body Control Module
Data Link Connector
Fuse 11 (FB)
Fuse Block
Instrument Cluster
Powertrain Control Module

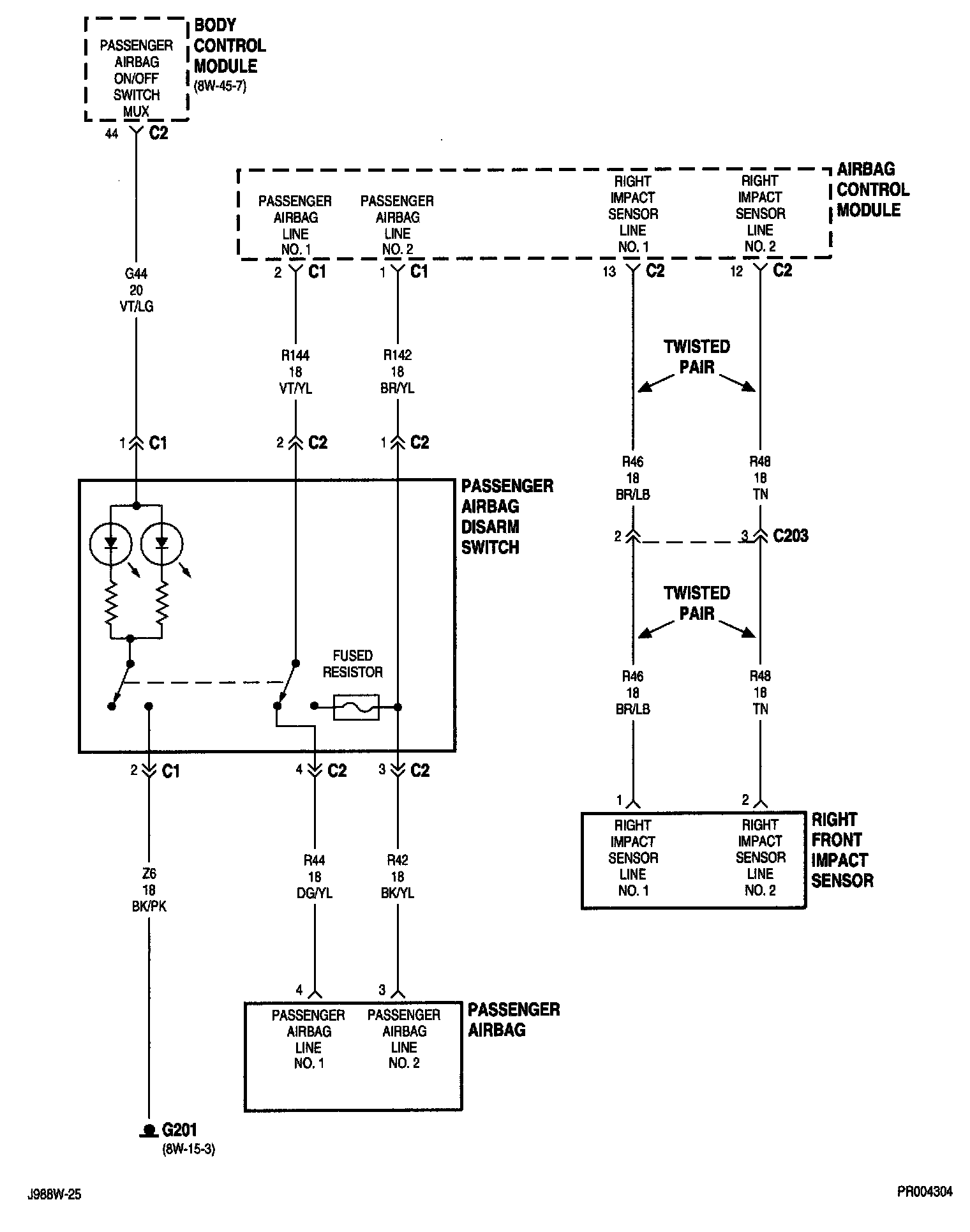

8W-43-04:

Airbag Control Module
Body Control Module
G201
Passenger Airbag Disarm Switch
Right Front Impact Sensor


NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
