Wiring Diagrams

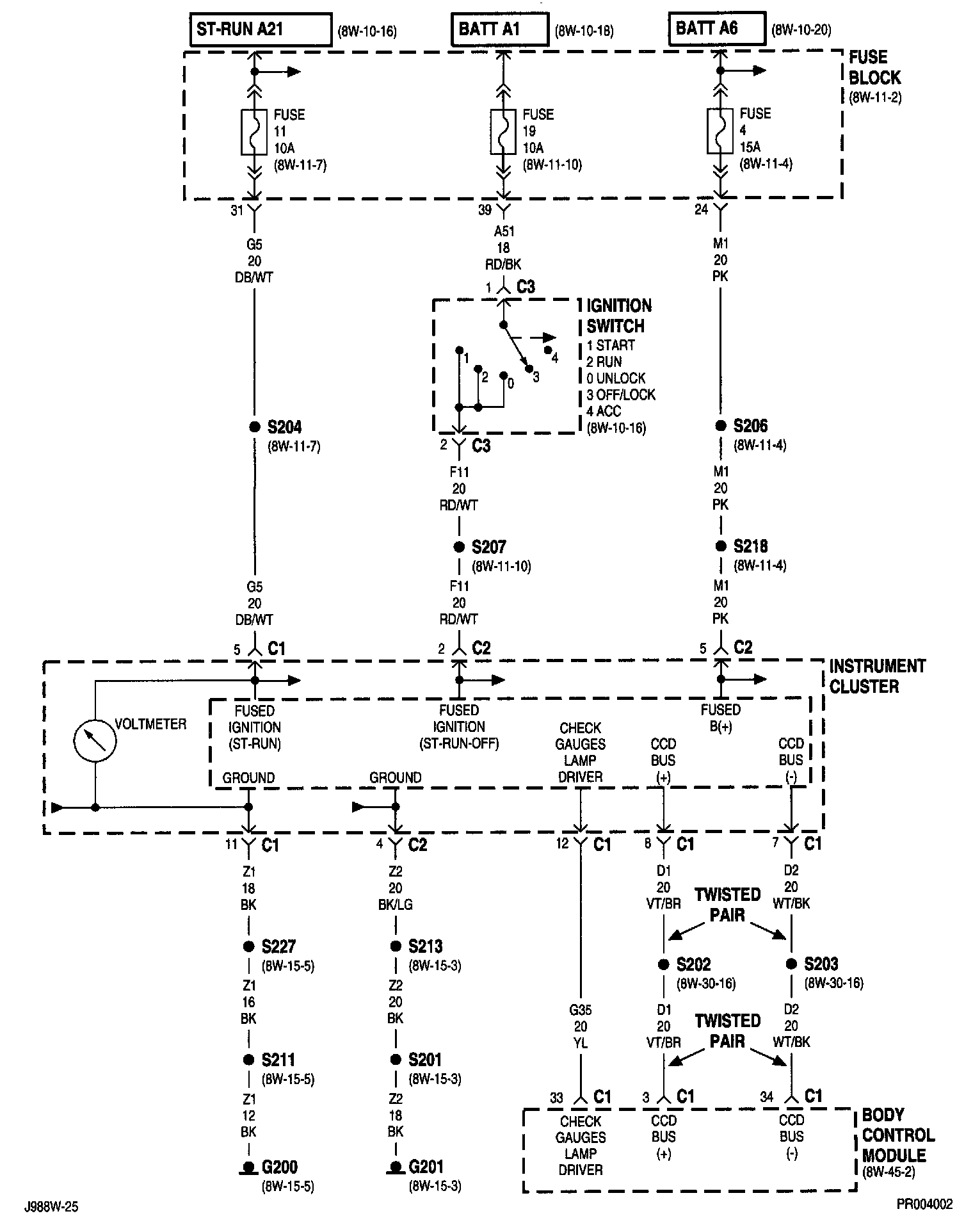

8W-40-02:

Body Control Module
Fuse 4 (FB)
Fuse 11 (FB)
Fuse 19 (FB)
Fuse Block
G200
G201
Ignition Switch
Instrument Cluster
Voltmeter

8W-40-03:

Body Control Module
Check Gauges Warning Indicator
Engine Coolant Temperature Gauge
Instrument Cluster
Malfunction Indicator Lamp
Powertrain Control Module
Speedometer
Transmission Control Module

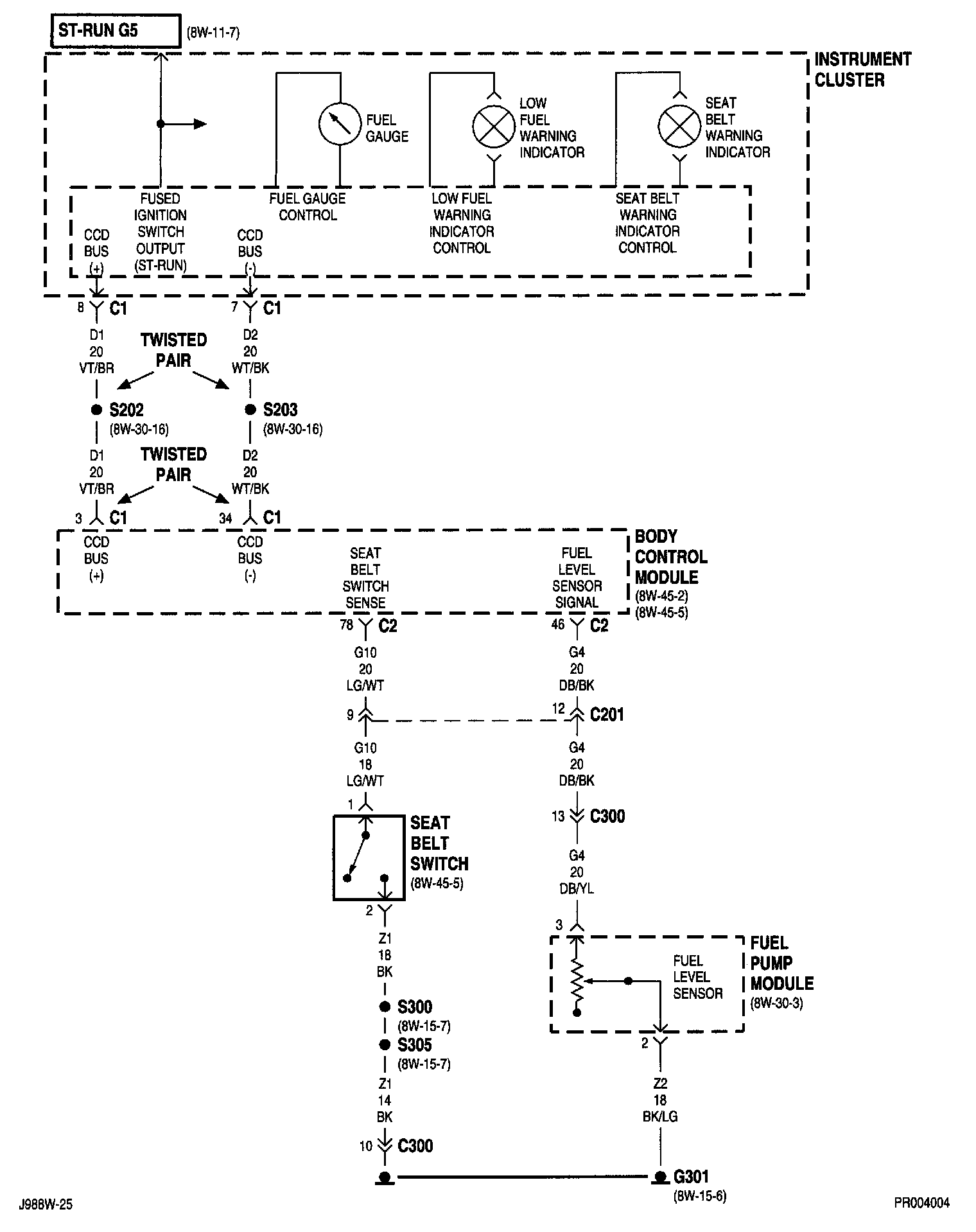

8W-40-04:

Body Control Module
Fuel Gauge
Fuel Level Sensor
Fuel Pump Module
G301
Instrument Cluster
Low Fuel Warning Indicator
Seat Belt Switch
Seat Belt Warning Indicator

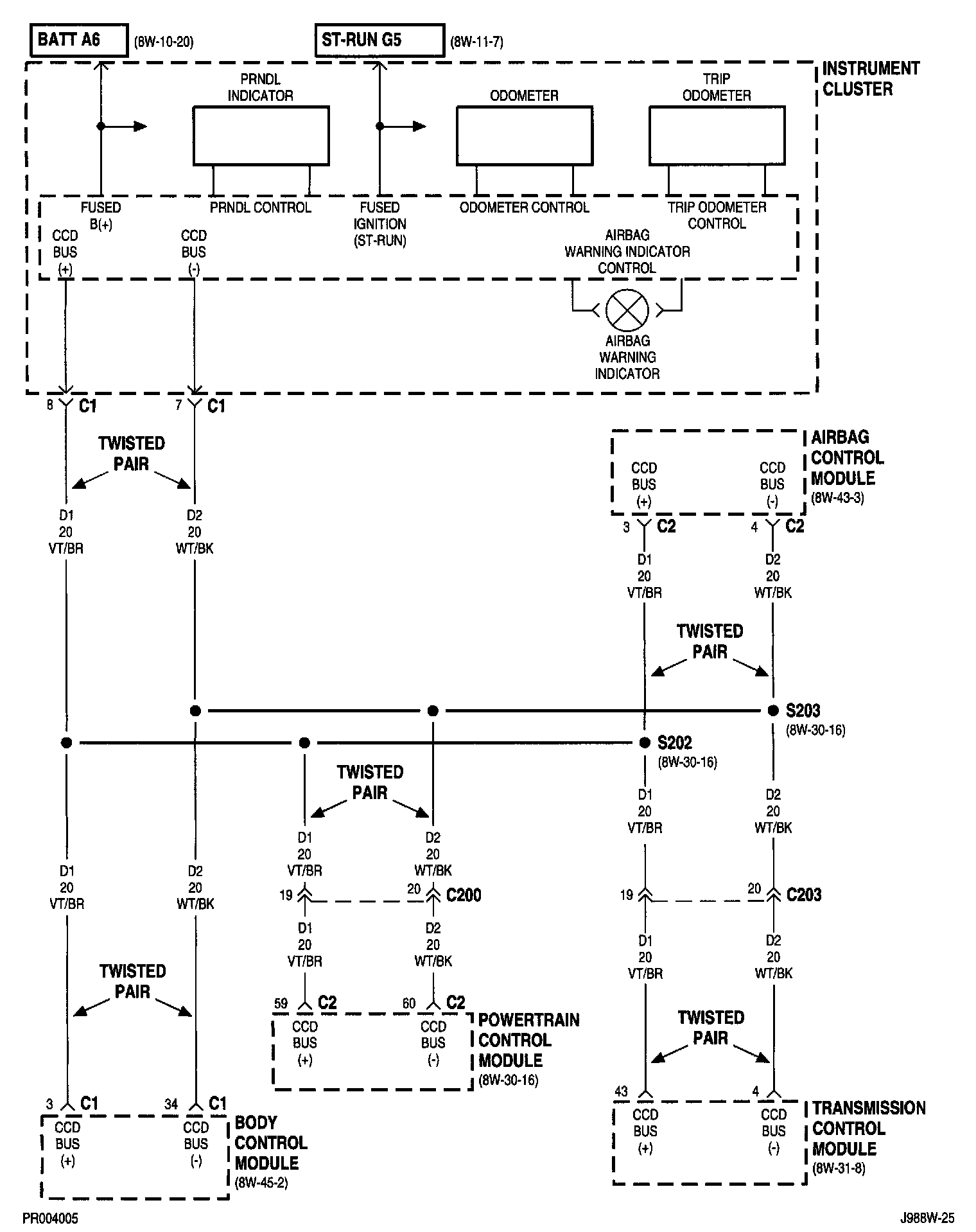

8W-40-05:

Airbag Control Module
Airbag Warning Indicator
Body Control Module
Engine Coolant Temperature Gauge
Instrument Cluster
Odometer
Powertrain Control Module
PRNDL Indicator
Transmission Control Module
Trip Odometer

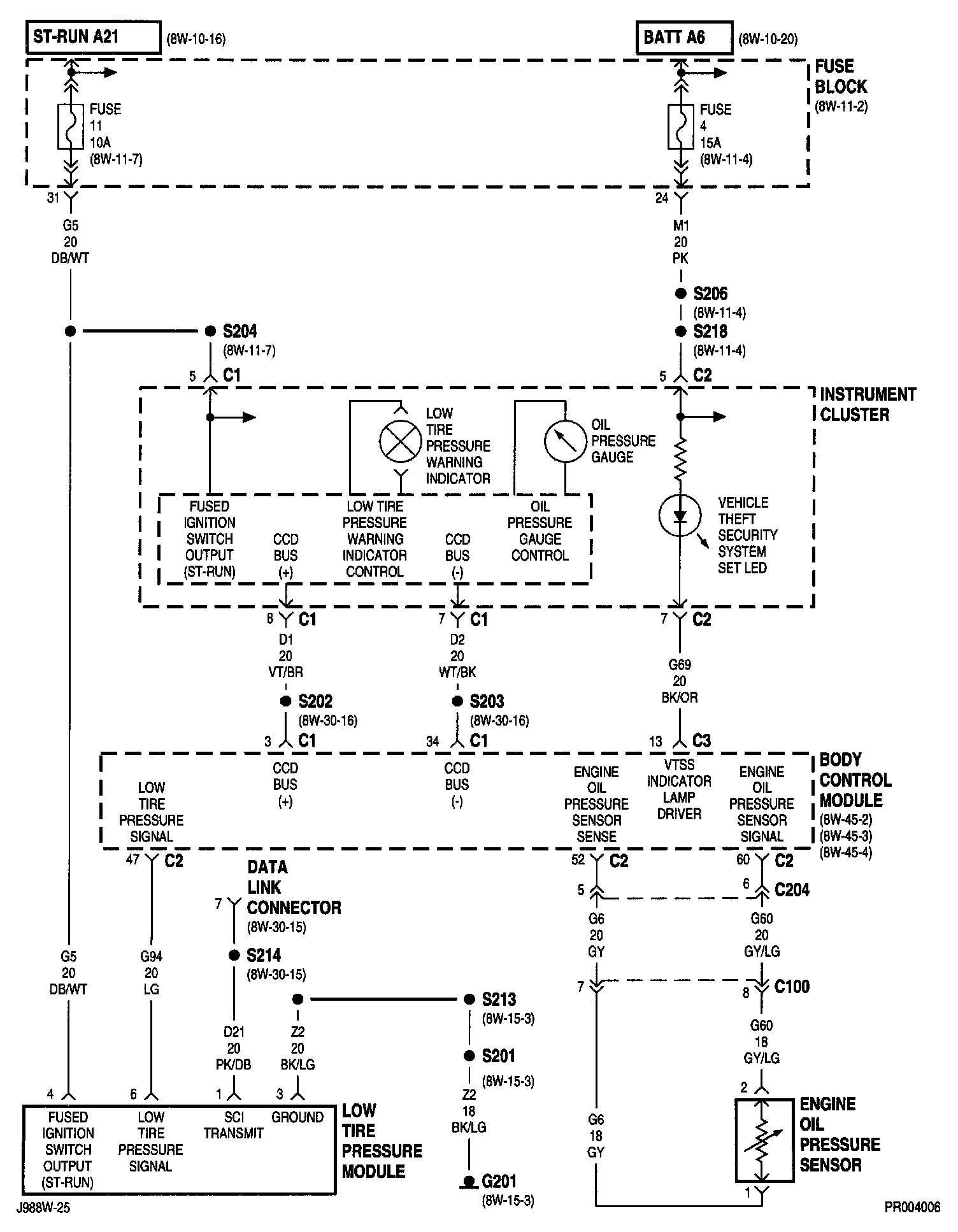

8W-40-06:

Body Control Module
Data Link Connector
Engine Oil Pressure Sensor
Fuse 4 (FB)
Fuse 11 (FB)
Fuse Block
G201
Instrument Cluster
Low Tire Pressure Module
Low Tire Pressure Warning Indicator
Oil Pressure Gauge
Vehicle Theft Security System Set Led

8W-40-07:

Brake Pressure Warning Switch
Brake Warning Indicator
Daytime Running Lamp Module
Ignition Switch
Instrument Cluster
Park Brake Switch

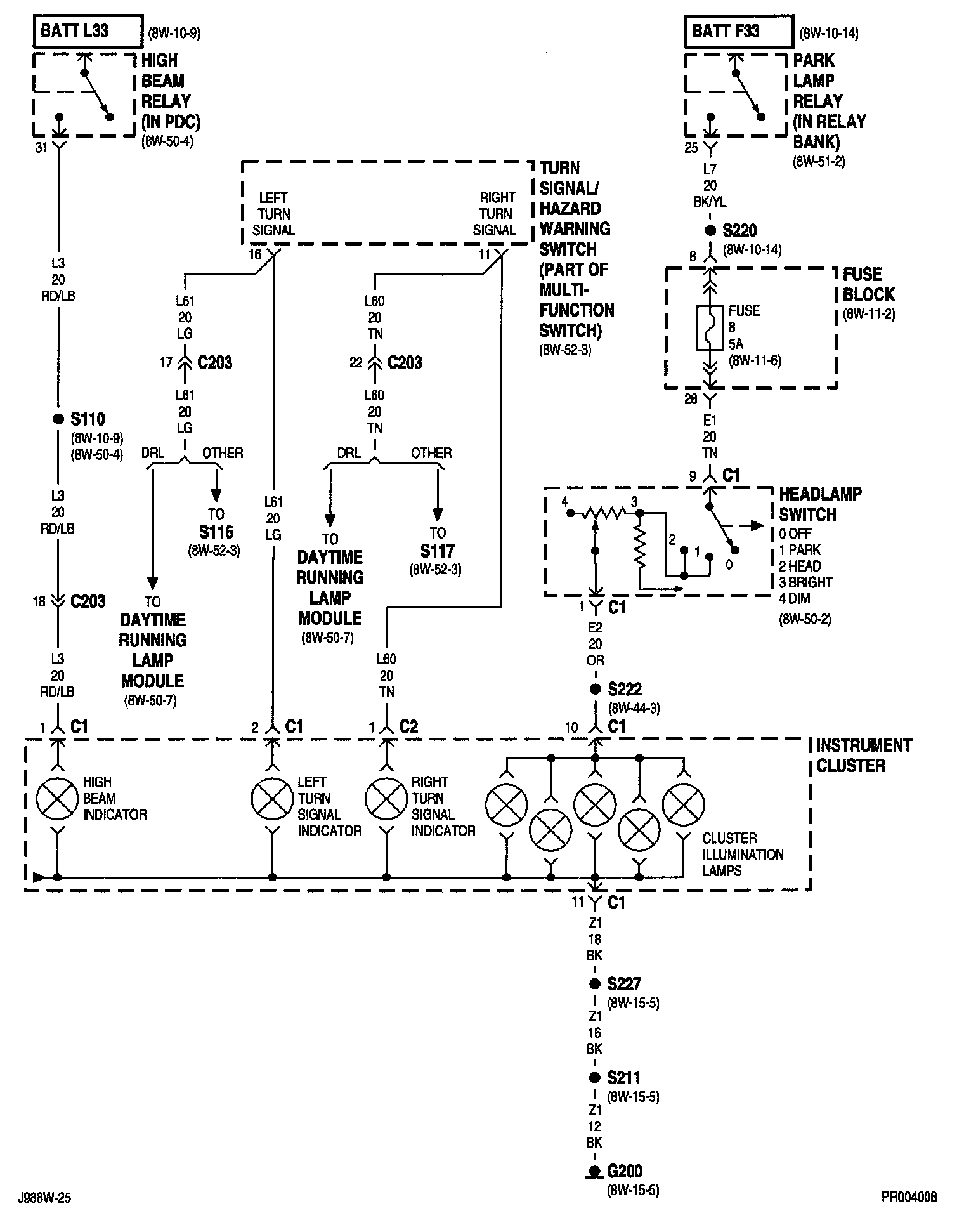

8W-40-08:

Cluster Illumination Lamps
Daytime Running Lamp Module
Fuse 8 (FB)
Fuse Block
G200
Headlamp Switch
High Beam Indicator
High Beam Relay
Instrument Cluster
Left Turn Signal Indicator
Park Lamp Relay
Right Turn Signal Indicator
Turn Signal/Hazard Warning Switch

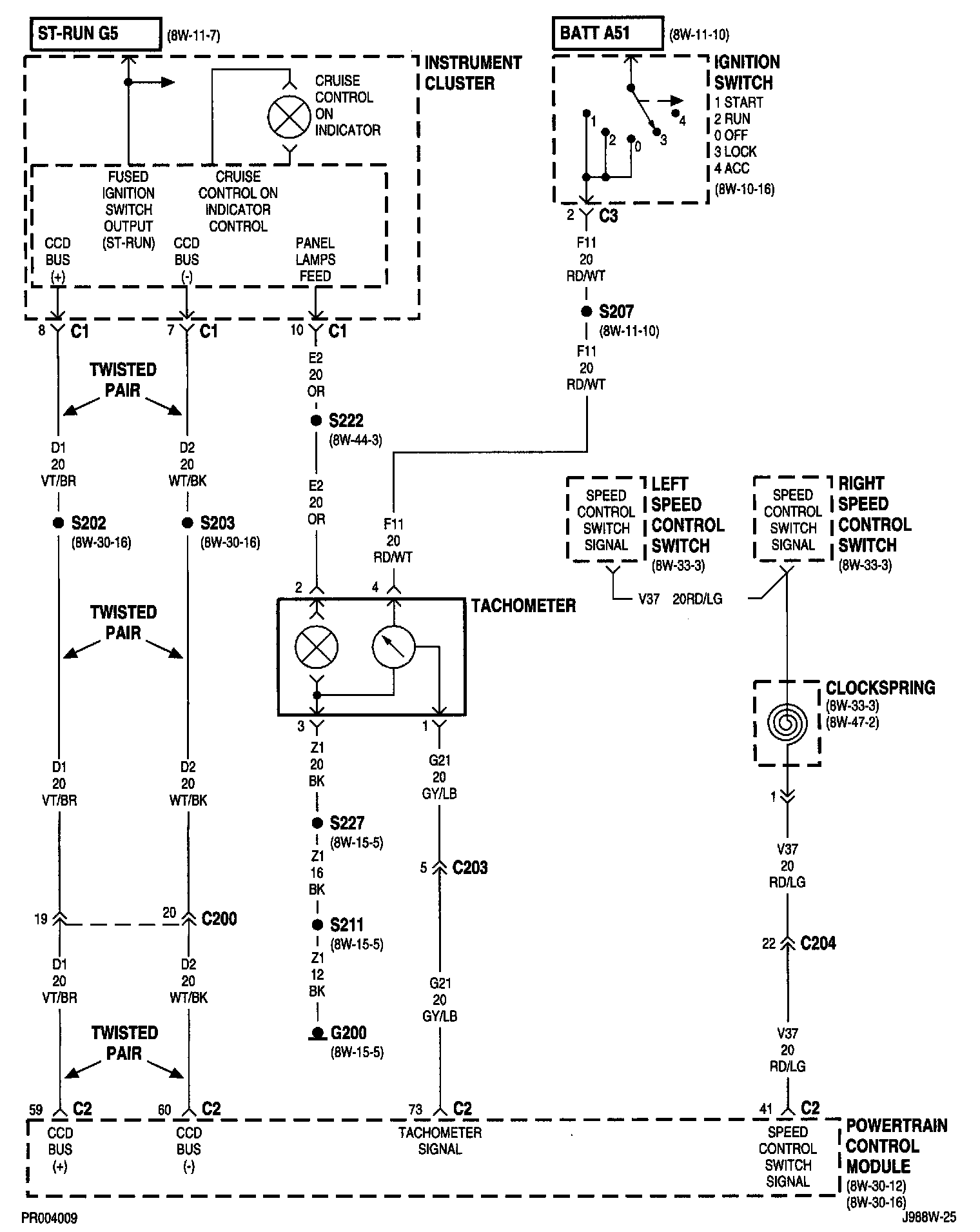

8W-40-09:

Clockspring
Cruise Control On Indicator
G200
Ignition Switch
Instrument Cluster
Left Speed Control Switch
Powertrain Control Module
Right Speed Control Switch
Tachometer

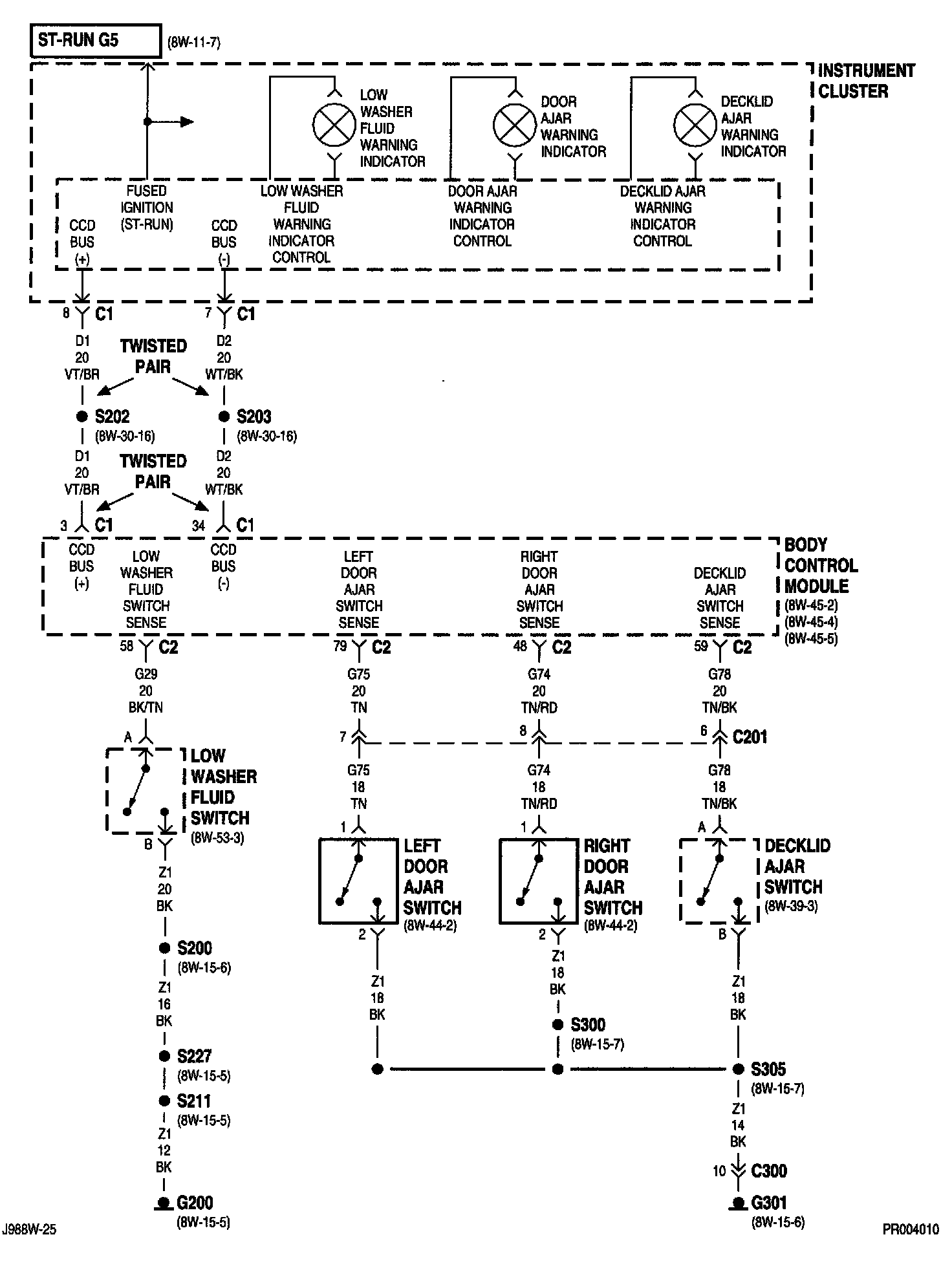

8W-40-10:

Body Control Module
Decklid Ajar Switch
Decklid Ajar Warning Indicator
Door Ajar Warning Indicator
G200
G301
Instrument Cluster
Left Door Ajar Switch
Low Washer Fluid Switch
Low Washer Fluid Warning Indicator
Right Door Ajar Switch


NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
