Turn Signals

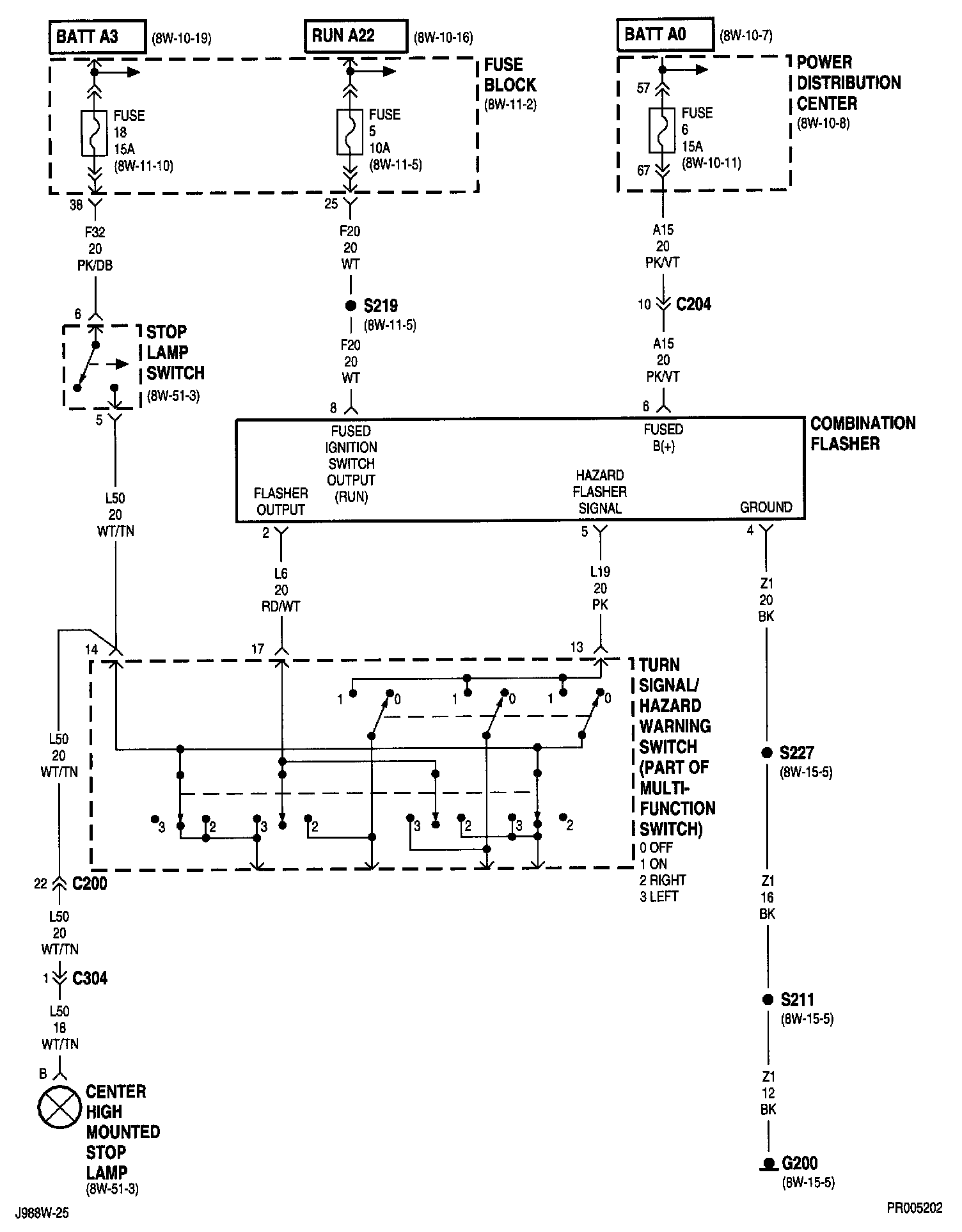

8W-52-02:

Center High Mounted Stop Lamp
Combination Flasher
Fuse 5 (FB)
Fuse 6 (PDC)
Fuse 18 (FB)
Fuse Block
G200
Power Distribution Center
Stop Lamp Switch
Turn Signal/Hazard Warning Switch

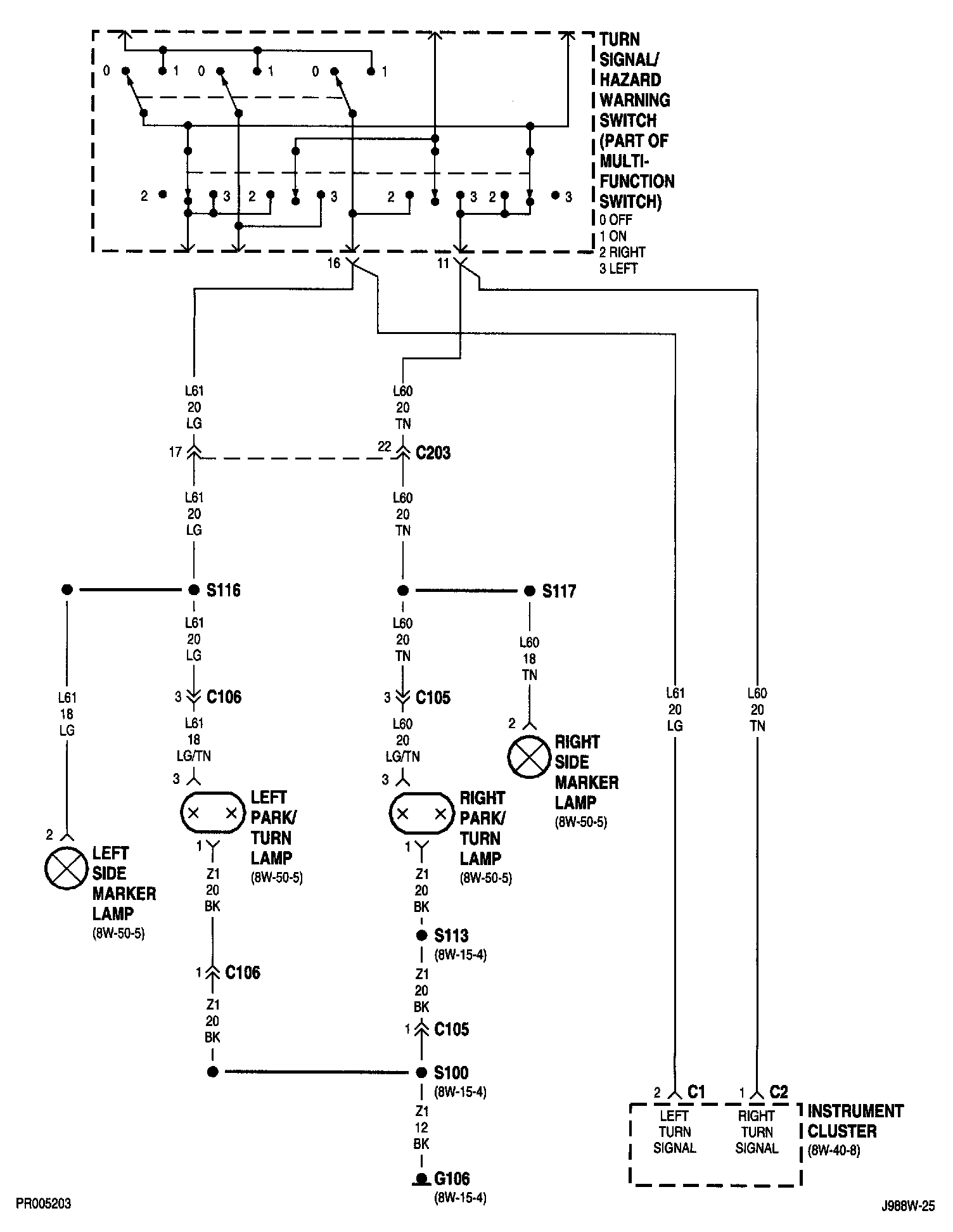

8W-52-03:

G106
Instrument Cluster
Left Park/Turn Lamp
Left Side Marker Lamp
Right Park/Turn Lamp
Right Side Marker Lamp
Turn Signal/Hazard Warning Switch

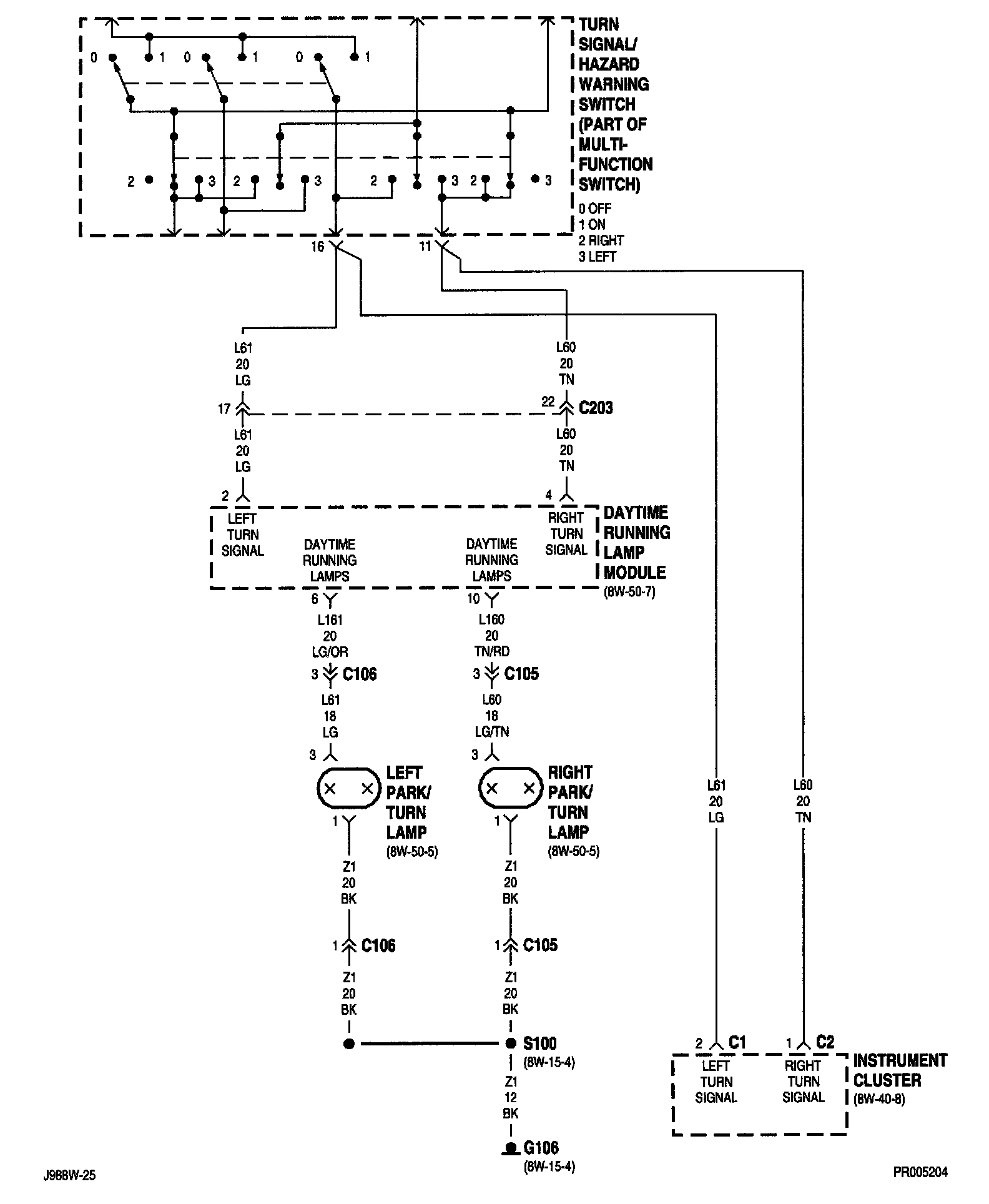

8W-52-04 (DRL):

Daytime Running Lamp Module
G106
Instrument Cluster
Left Park/Turn Lamp
Right Park/Turn Lamp
Turn Signal/Hazard Warning Switch

8W-52-05:

Center High Mounted Stop Lamp
Combination Flasher
G301
Left Tail/Stop/Turn Lamp
Right Tail/Stop/Turn Lamp
Stop Lamp Switch
Turn Signal/Hazard Warning Switch


NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
