Wiring Diagrams

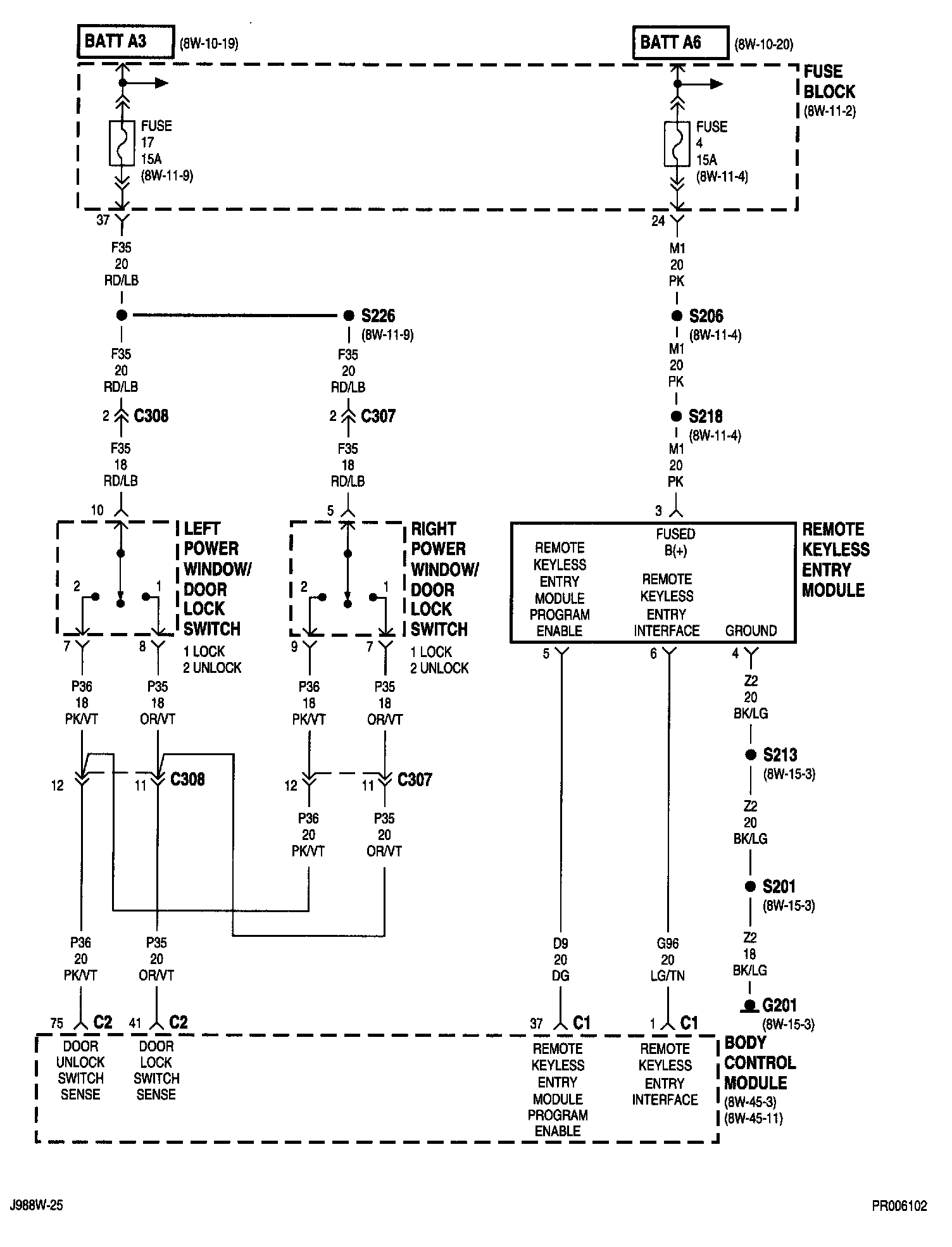

8W-61-02:

Body Control Module
Fuse 4 (FB)
Fuse 17 (FB)
Fuse Block
G201
Left Power Window/Door Lock Switch
Remote Keyless Entry Module
Right Power Window/Door Lock Switch

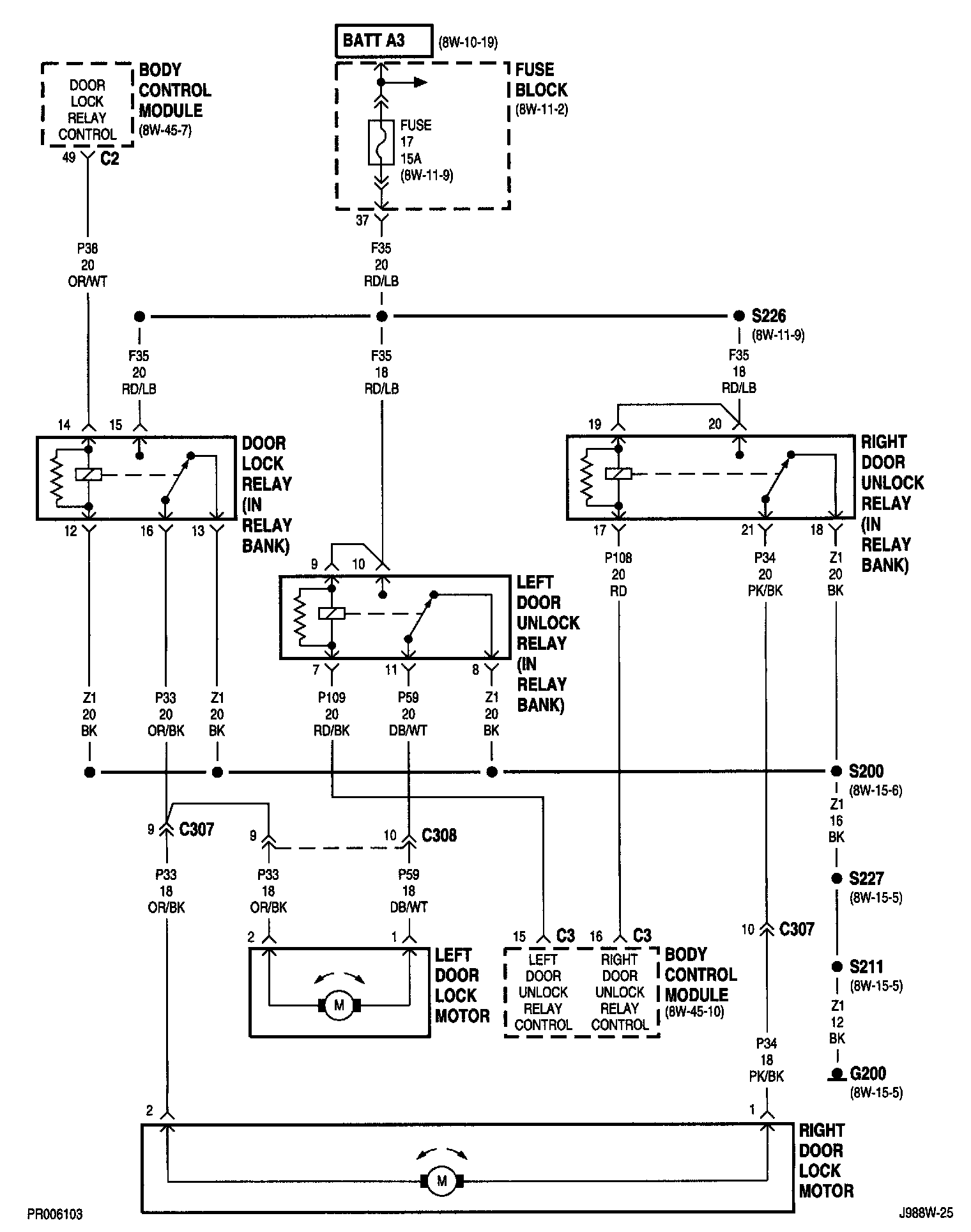

8W-61-03:

Body Control Module
Door Lock Relay
Fuse 17 (FB)
Fuse Block
G200
Left Door Lock Motor
Left Door Unlock Relay
Right Door Lock Motor
Right Door Unlock Relay

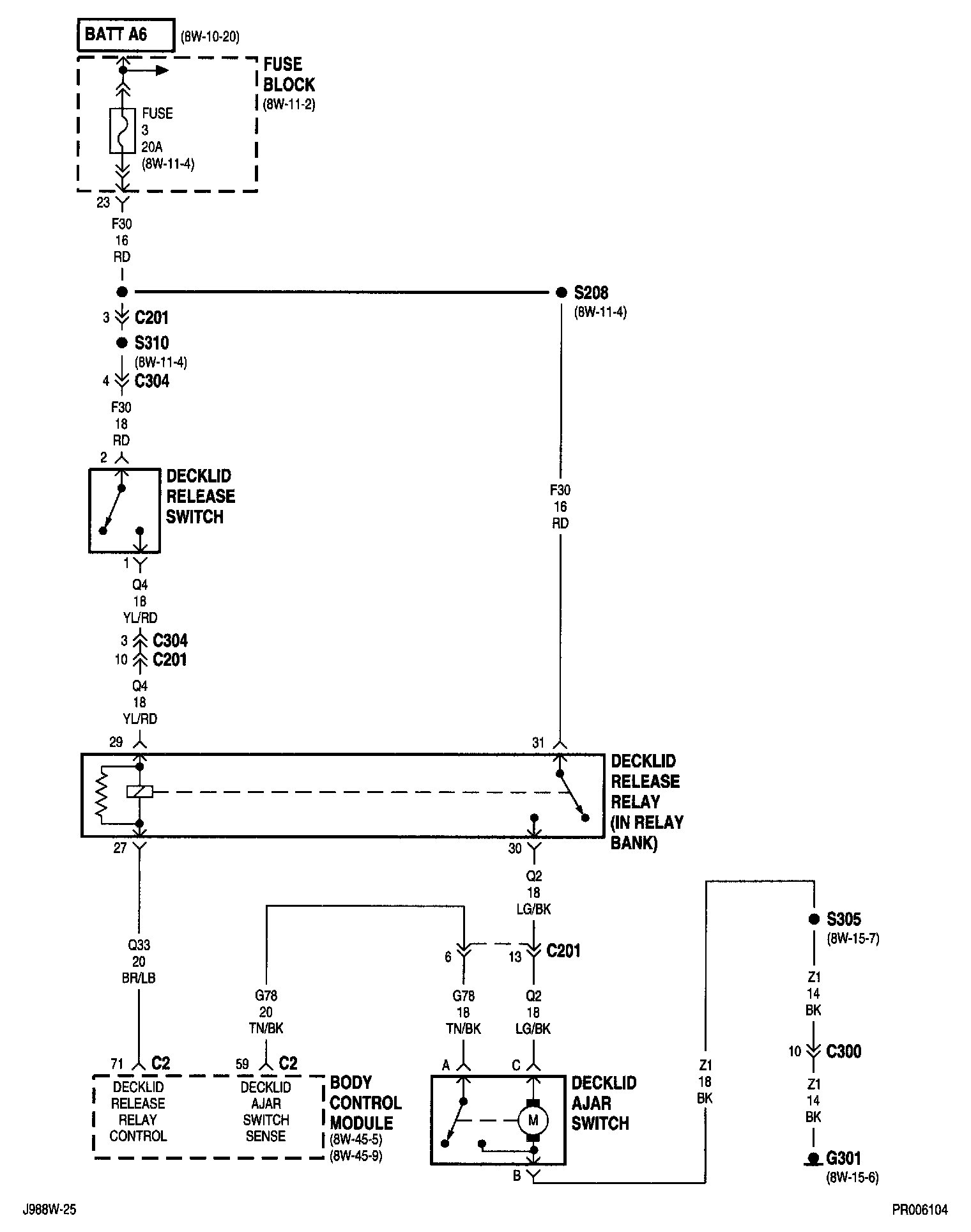

8W-61-04:

Body Control Module
Decklid Ajar Switch
Decklid Release Relay
Decklid Release Switch
Fuse 3 (FB)
Fuse Block
G301


NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams Diagrams By Group Number
