Fuse Block

8W-11-04:

Body Control Module
Cigar Lighter/Power Outlet
Data Link Connector
Decklid Ajar Switch
Decklid Release Relay
Decklid Release Switch
Front Reading Lamp/Switch
Fuse 3 (FB)
Fuse 4 (FB)
Fuse Block
Glove Box Lamp/Switch
Ignition Switch
Instrument Cluster
Left Footwell Lamp
Power Amplifier
Power Mirror Switch
Radio
Remote Keyless Entry Module
Right Footwell Lamp

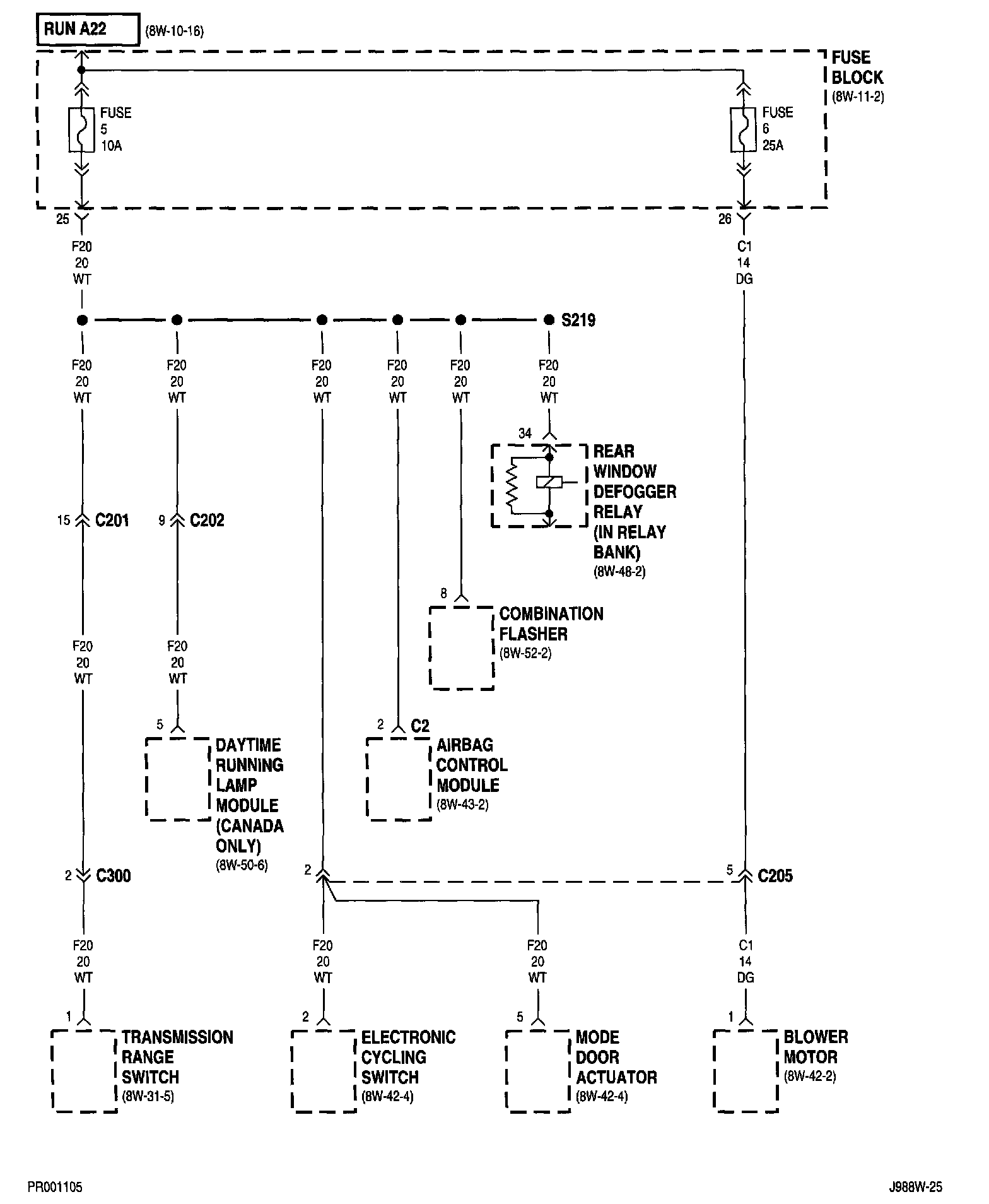

8W-11-05:

Airbag Control Module
Blower Motor
Combination Flasher
Daytime Running Lamp Module
Electronic Cycling Switch
Fuse 5 (FB)
Fuse 6 (FB)
Fuse Block
Mode Door Actuator
Rear Window Defogger Relay
Transmission Range Switch

8W-11-06:

Fuse 8 (FB)
Fuse 8 (PDC)
Fuse Block
Headlamp Switch
Park Lamp Relay
Power Distribution Center

8W-11-07:

A/C Compressor Clutch Relay
Airbag Control Module
Body Control Module
Fuel Pump Relay
Fuse 9 (FB)
Fuse 10 (FB)
Fuse 11 (FB)
Fuse Block
High Speed Radiator Fan Relay
Instrument Cluster
Leak Detection Pump
Low Speed Radiator Fan Relay
Low Tire Pressure Module
Powertrain Control Module
Transmission Fan Relay

8W-11-08:

Body Control Module
Circuit Breaker
Engine Starter Motor Relay
Fuse 13 (FB)
Fuse 15 (FB)
Fuse 16 (FB)
Fuse Block
Intermittent Wiper Relay
Radio
Transmission Control Module
Wiper Motor
Wiper Switch

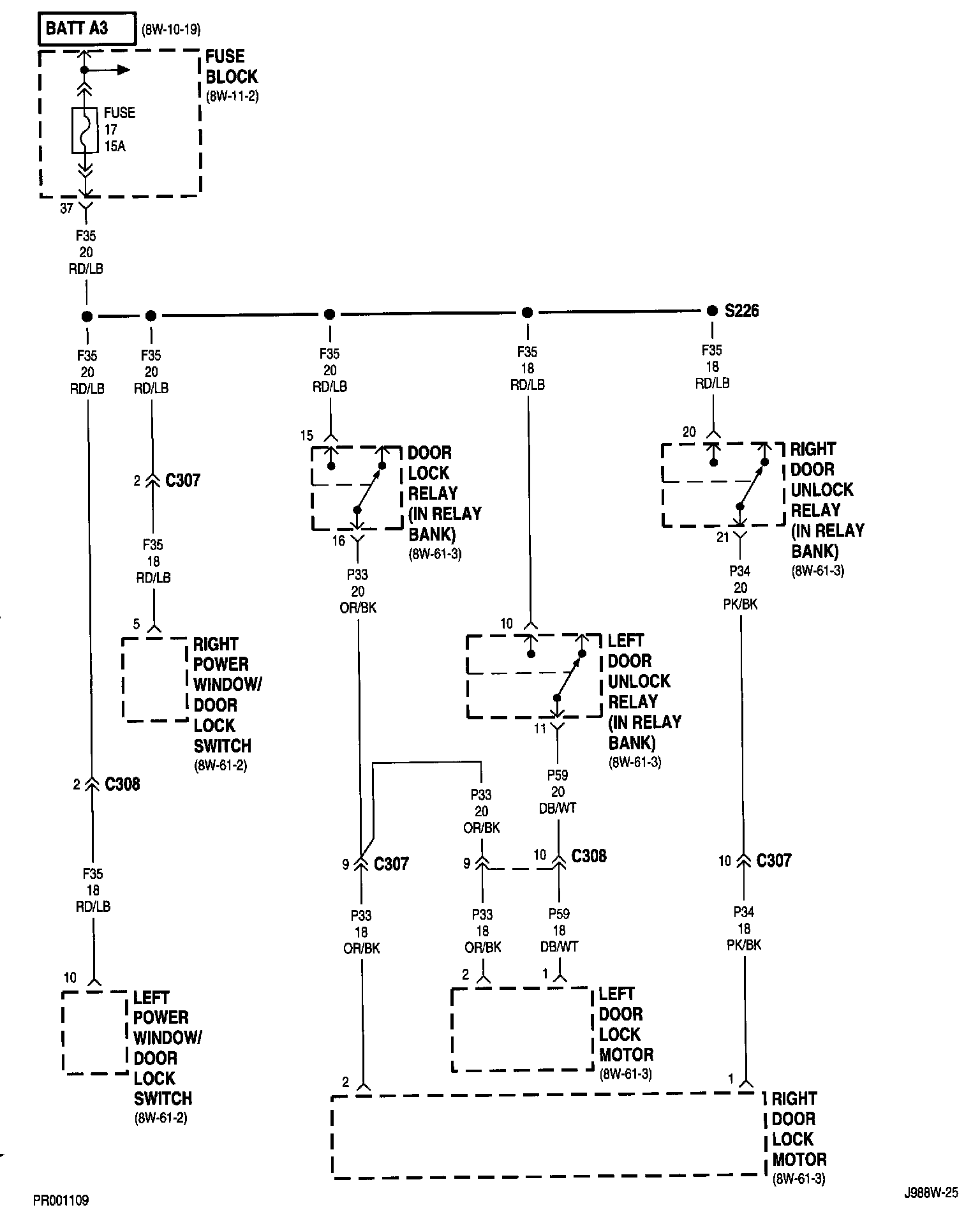

8W-11-09:

Door Lock Relay
Fuse 17 (FB)
Fuse Block
Left Door Lock Motor
Left Door Unlock Relay
Left Power Window/Door Lock Switch
Right Door Lock Motor
Right Door Unlock Relay
Right Power Window/Door Lock Switch

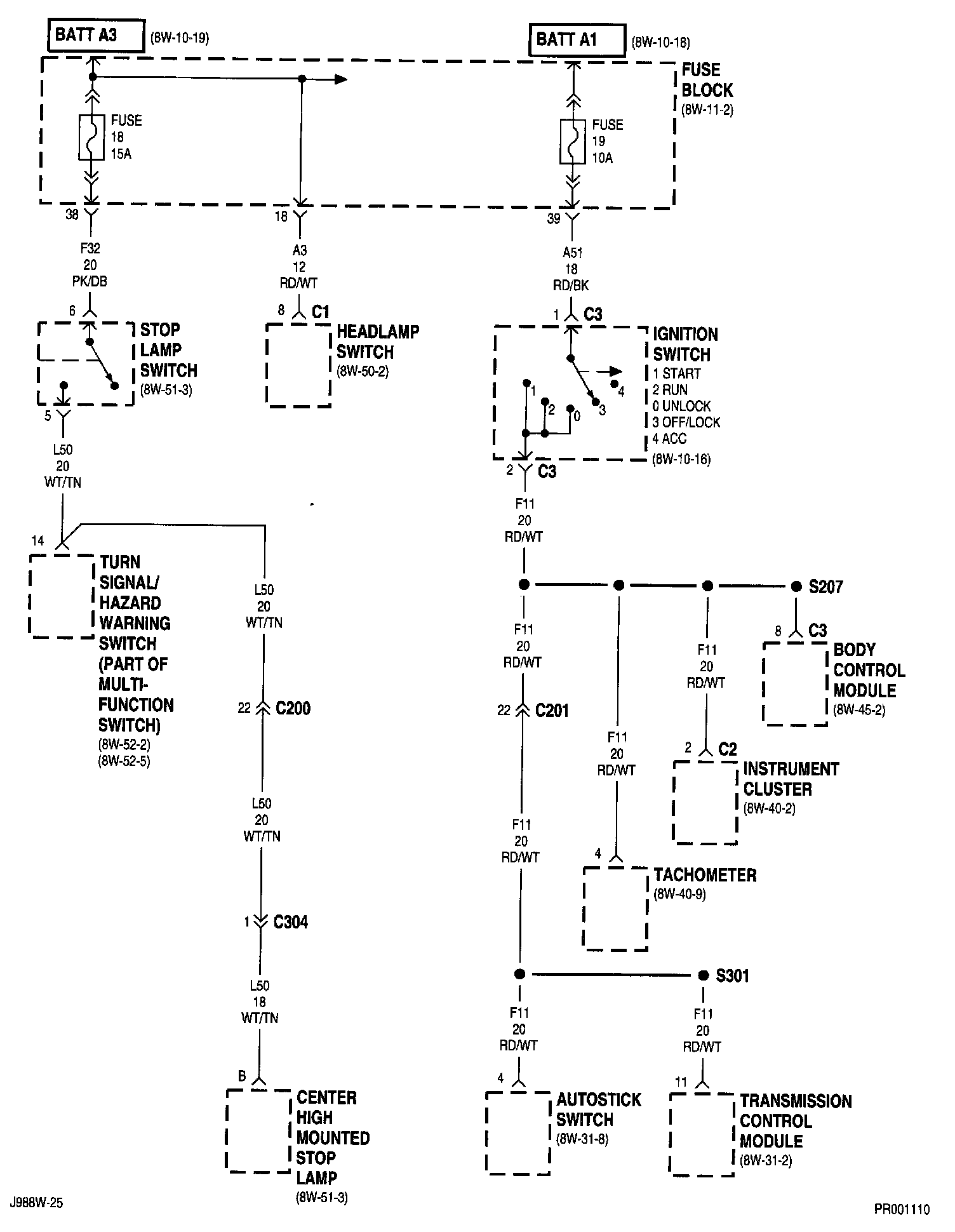

8W-11-10:

Autostick Switch
Body Control Module
Center High Mounted Stop Lamp
Fuse 18 (FB)
Fuse 19 (FB)
Fuse Block
Headlamp Switch
Ignition Switch
Instrument Cluster
Stop Lamp Switch
Tachometer
Transmission Control Module
Turn Signal/Hazard Warning Switch

NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams Diagrams By Group Number.
