Engine Lubrication: Description and Operation

Oil Lubrication System:

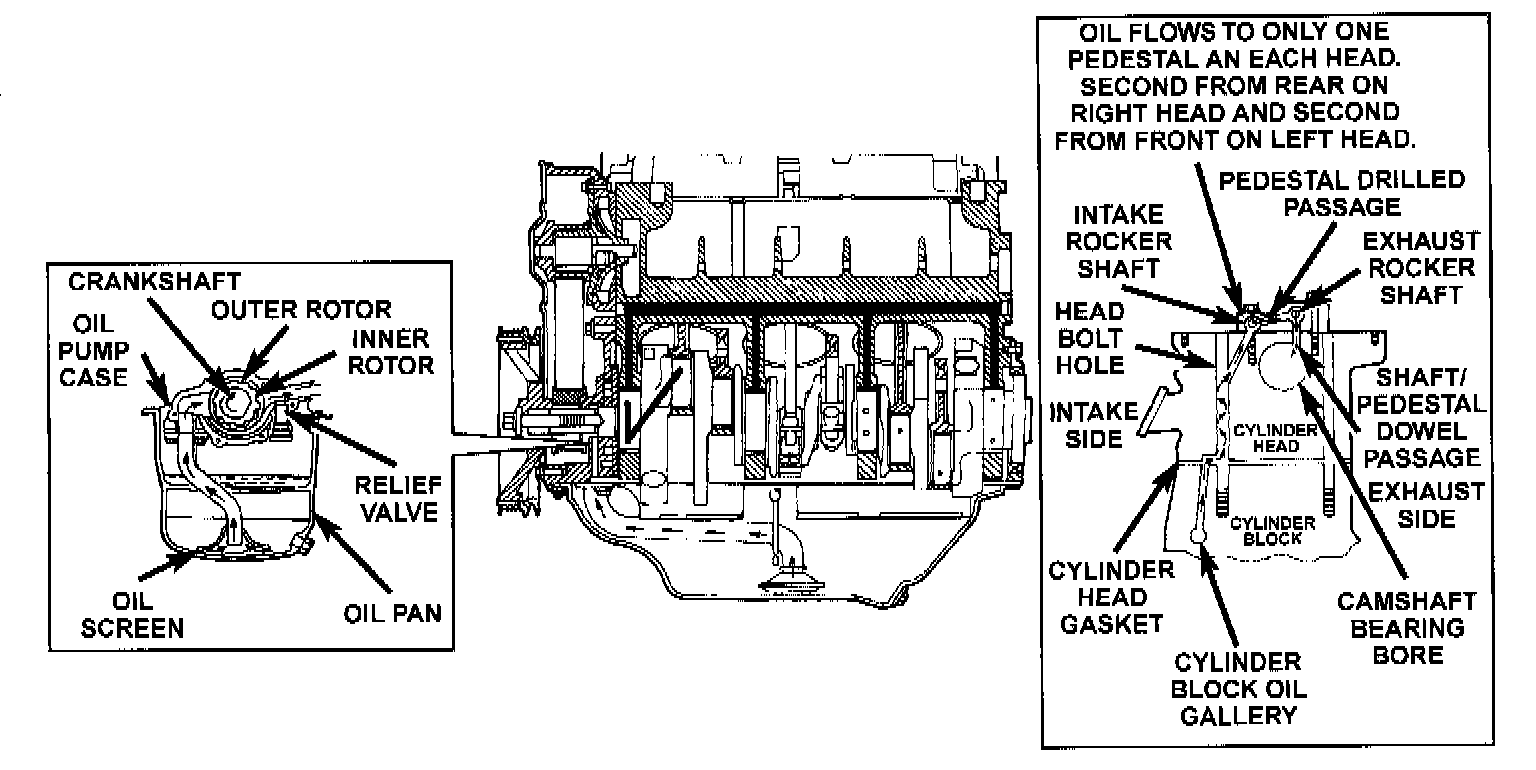

The lubrication system is a full flow filtration pressure feed type. Oil, stored in the oil pan, is taken in and discharged by a gerotor type oil pump directly coupled to the crankshaft and its pressure is regulated by a relief valve. The oil is fed through an oil filter and to the crankshaft journals from the oil gallery in the cylinder block. This gallery also feeds oil under pressure to the cylinder heads. At each cylinder head, the oil flows through passages to the rocker shafts which then feed the camshaft journals, rocker arms, and hydraulic lash adjusters.
