Wiring Diagrams

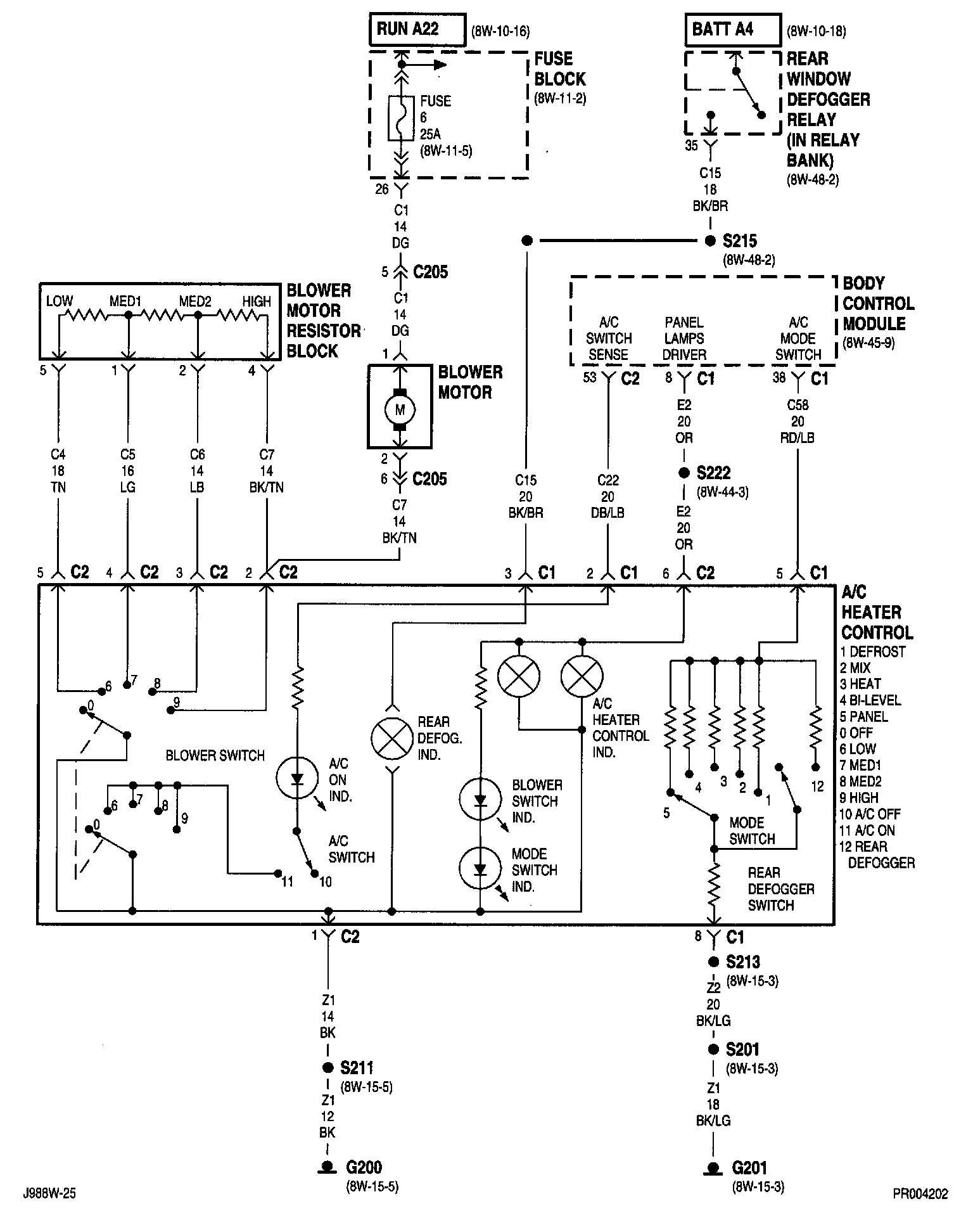

8W-42-02:

A/C Heater Control
Blower Motor
Blower Motor Resistor Block
Body Control Module
Fuse 6 (FB)
Fuse Block
G200
G201
Rear Window Defogger Relay

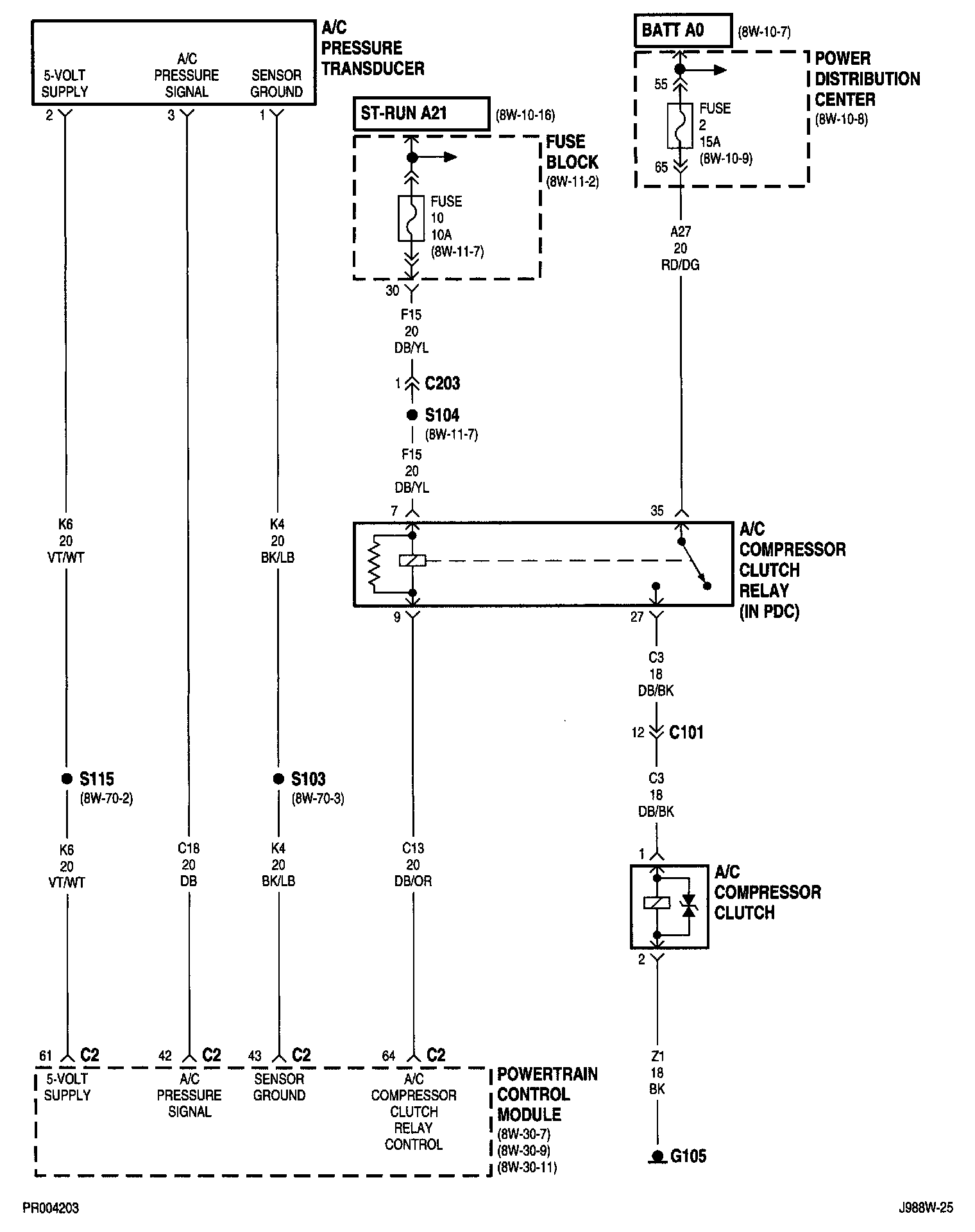

8W-42-03:

A/C Compressor Clutch
A/C Compressor Clutch Relay
A/C Pressure Transducer
Fuse 2 (PDC)
Fuse 10 (FB)
Fuse Block
G105
Power Distribution Center
Powertrain Control Module

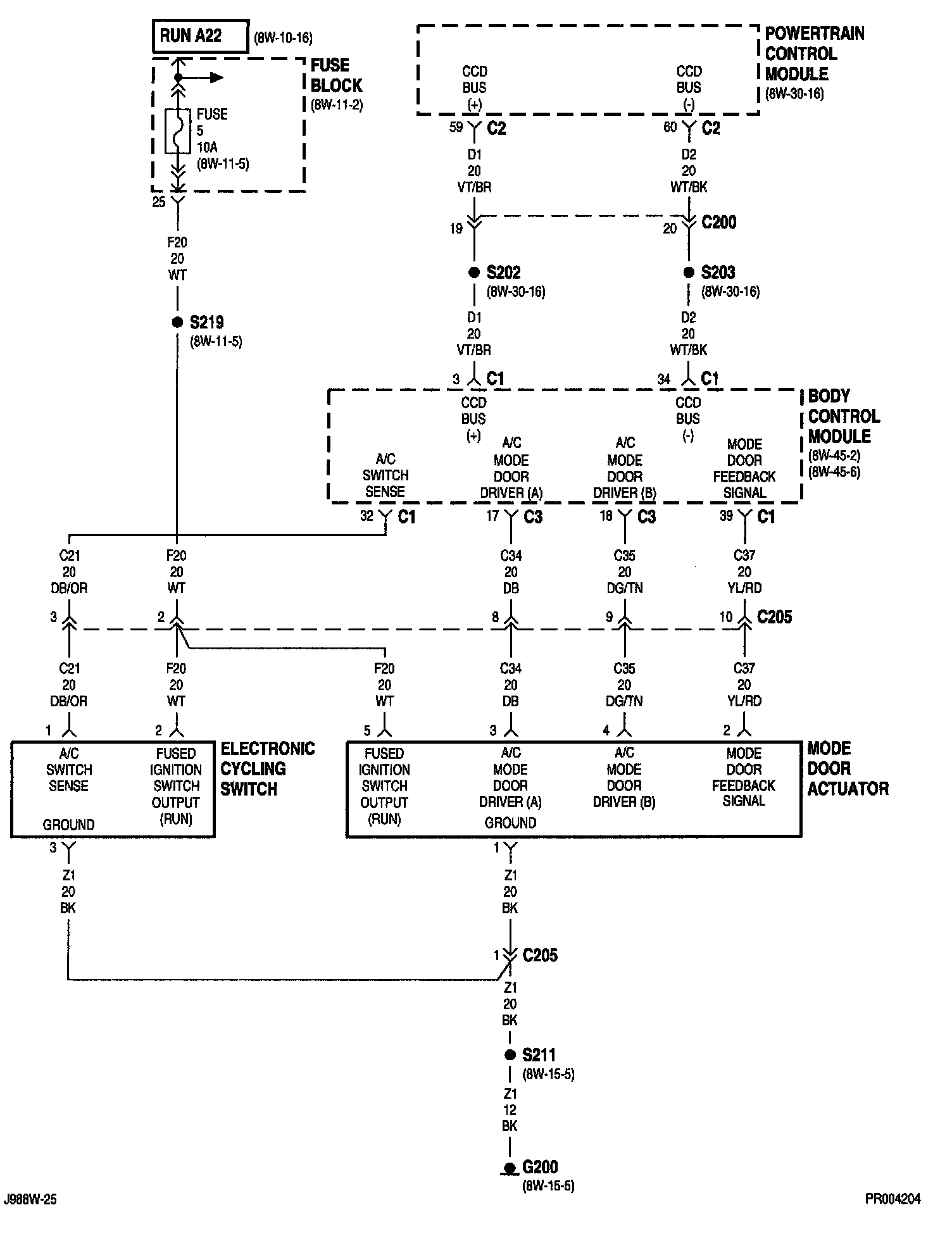

8W-42-04:

Body Control Module
Electronic Cycling Switch
Fuse 5 (FB)
Fuse Block
G200
Mode Door Actuator
Powertrain Control Module

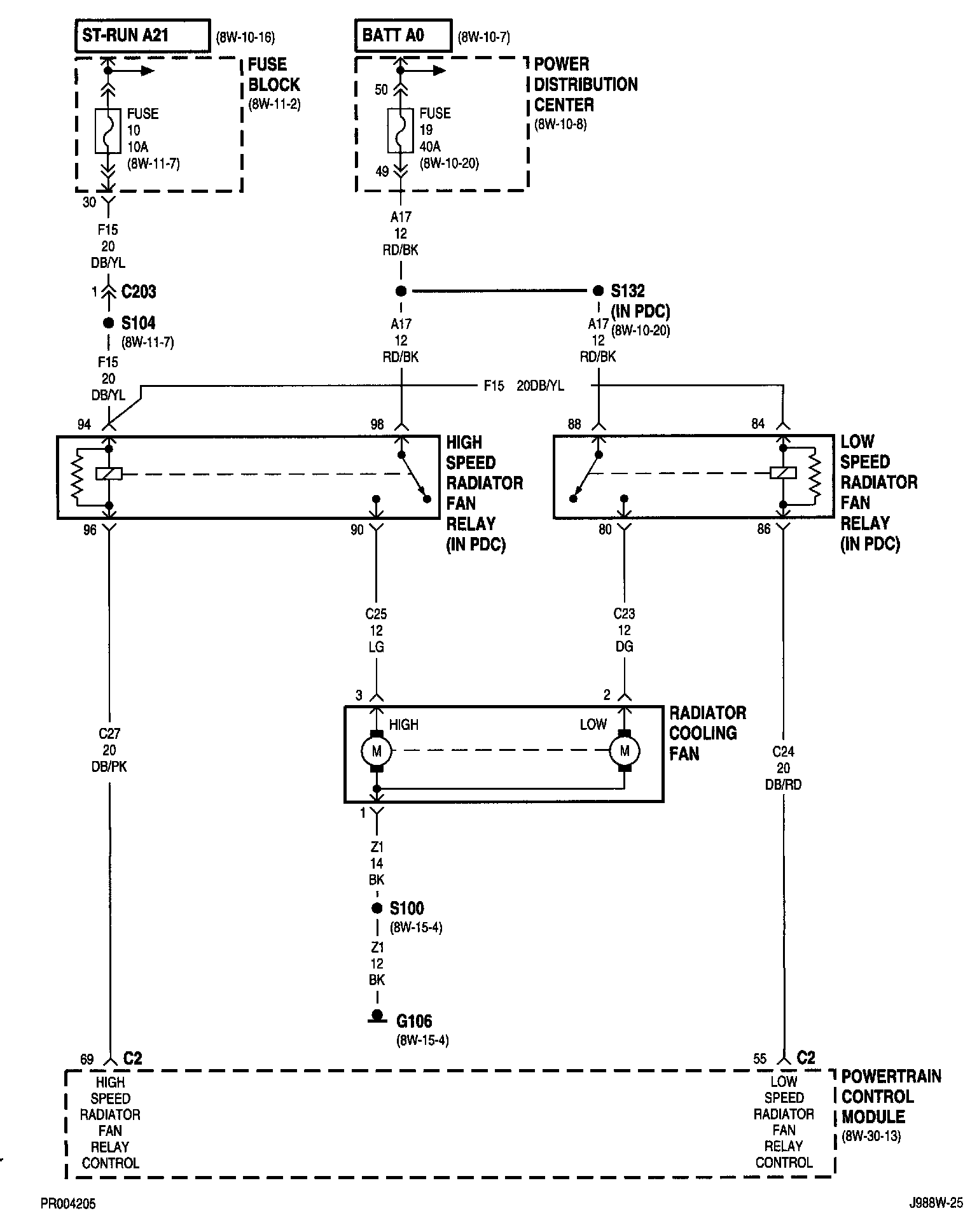

8W-42-05:

Fuse 10 (FB)
Fuse 19 (PDC)
Fuse Block
G106
High Speed Radiator Fan Relay
Low Speed Radiator Fan Relay
Power Distribution Center
Powertrain Control Module
Radiator Cooling Fan


NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams Diagrams By Group Number
