Instrument Cluster Lamp Replacement

1. Disconnect and isolate the negative battery cable.

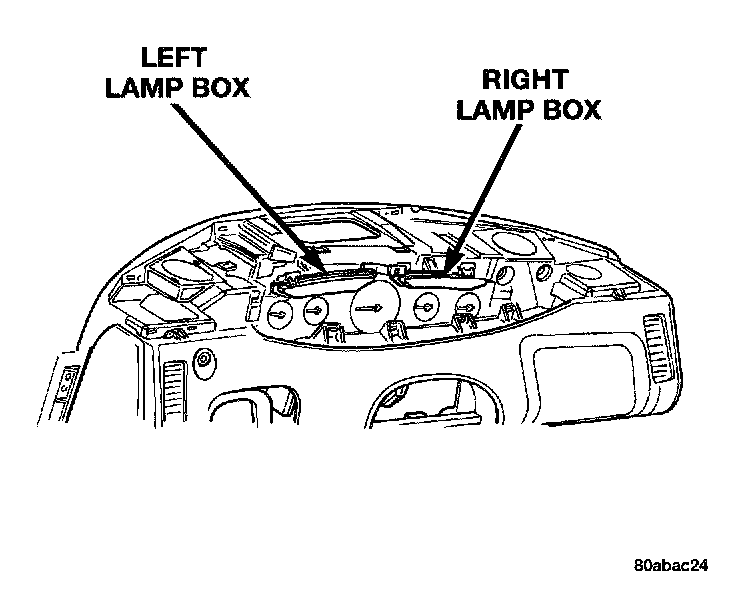

Lamp Boxes:

2. Remove the instrument panel top cover. To service lamps, remove the lamp boxes.

Lamps Located In The Right And Left Lamp Boxes:

3. Refer to and Cluster Lamp Location table for appropriate lamp locations. The indicator lamps use a 103 lamp, and the illumination lamps use a 194 lamp.
4. To service the vehicle theft LED, the mask/lens needs to be removed. The vehicle theft LED is a socket/lamps unit.

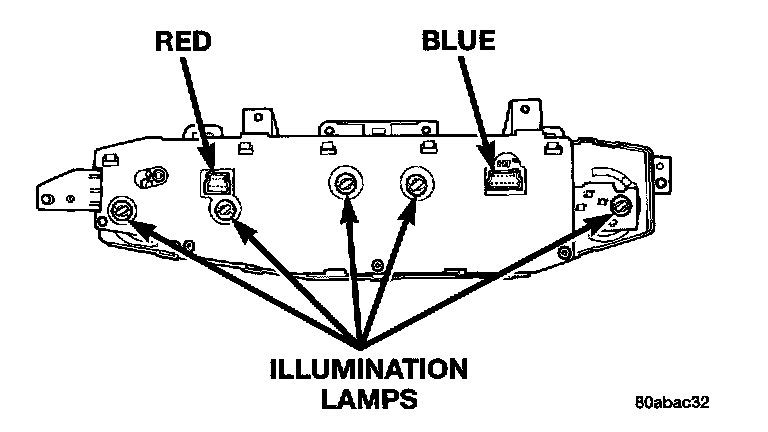

Illumination Lamps Location:

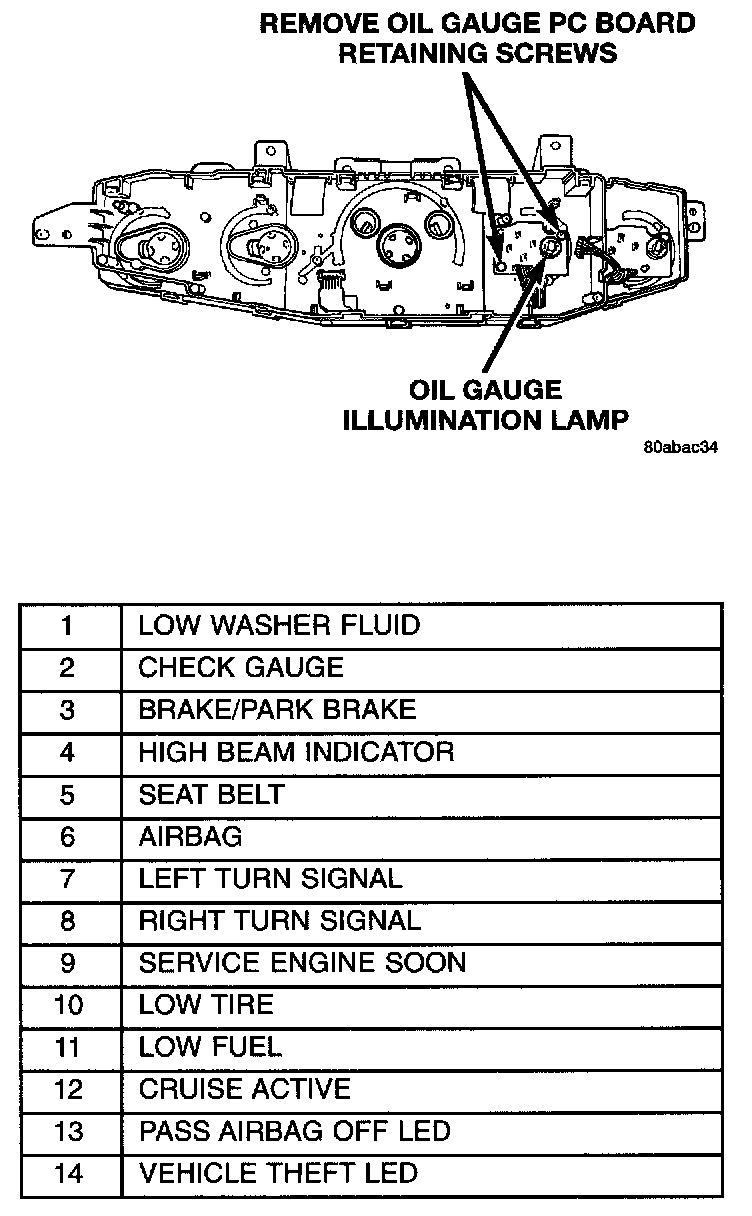

Oil Gauge Lamp:

5. Remove cluster to service illumination lamps. The lamps can be remove from the rear of the cluster. To remove the oil gauge illumination lamp, the speedometer PC board will have to be removed.
