Tachometer: Service and Repair

REMOVAL
1. Open hood.
2. Disconnect and isolate negative battery cable.

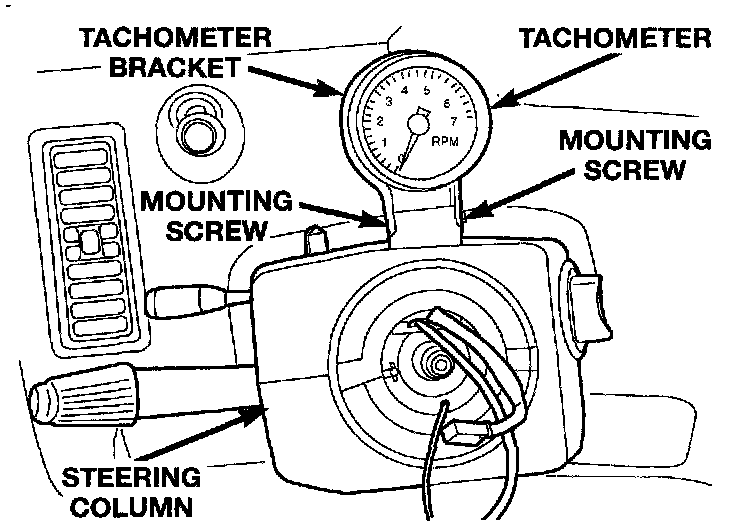

Tachometer Mounting:

3. Remove two torx head screws. One to each side of the tachometer mounting bracket.
4. Unplug the tachometer wiring connector.
5. Remove tachometer from vehicle.

INSTALLATION
- For installation, reverse the above procedures.
