Front End Lighting

8W-50-02:

Body Control Module
Fuse 15 (PDC)
Fuse 8 (FB)
Fuse 8 (PDC)
Fuse Block
G200
Headlamp Switch
Park Lamp Relay
Power Distribution Center
Radio

8W-50-03:

Body Control Module
Daytime Running Lamp Module
Fuse 10 (PDC)
Fuse 15 (PDC)
Fuse 9 (PDC)
G102
G106
Left Low Beam Lamp
Low Beam Relay
Power Distribution Center
Right Low Beam Lamp

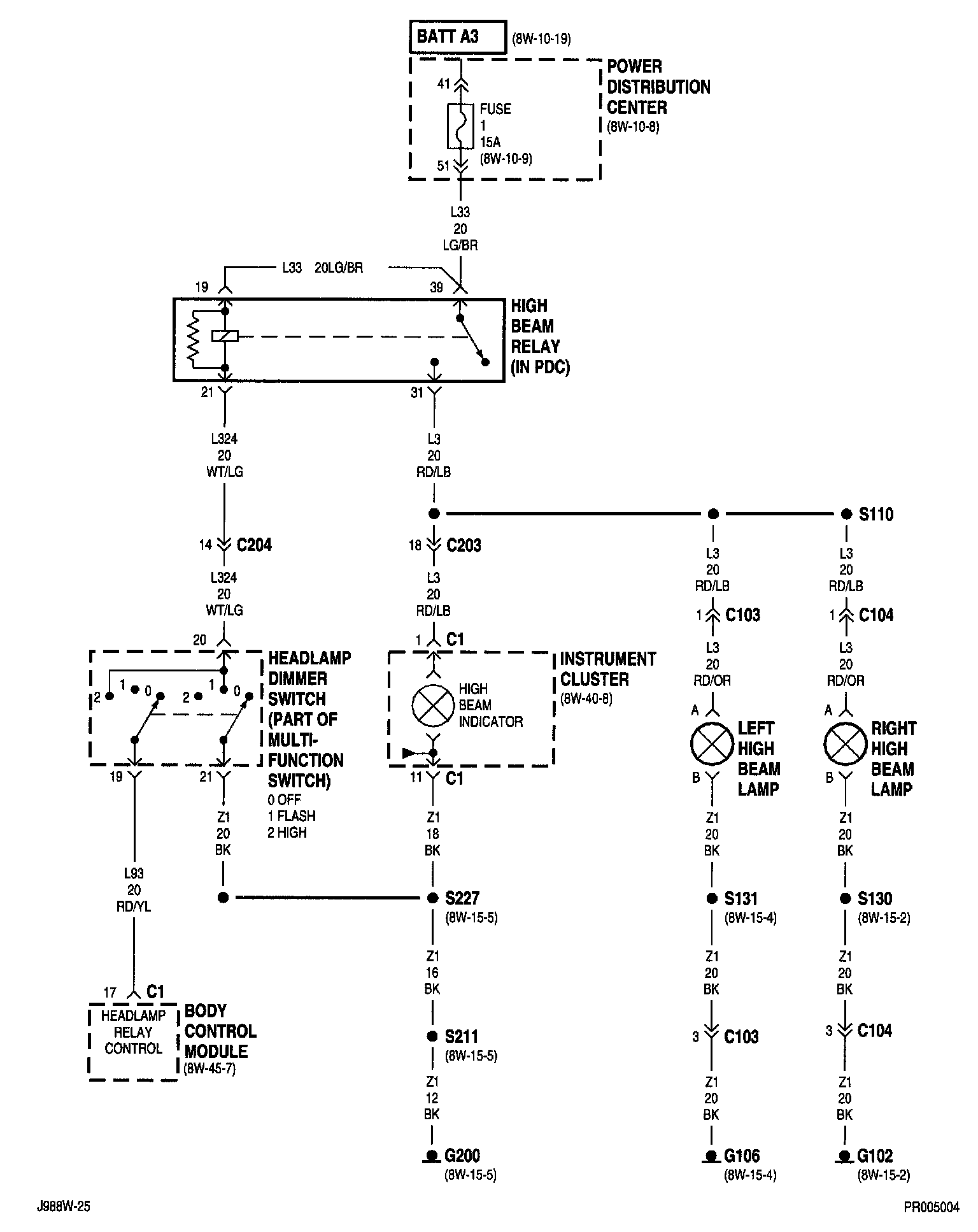

8W-50-04:

Body Control Module
Fuse 1 (PDC)
G102
G106
G200
Headlamp Dimmer Switch
High Beam Indicator
High Beam Relay
Instrument Cluster
Left High Beam Lamp
Power Distribution Center
Right High Beam Lamp

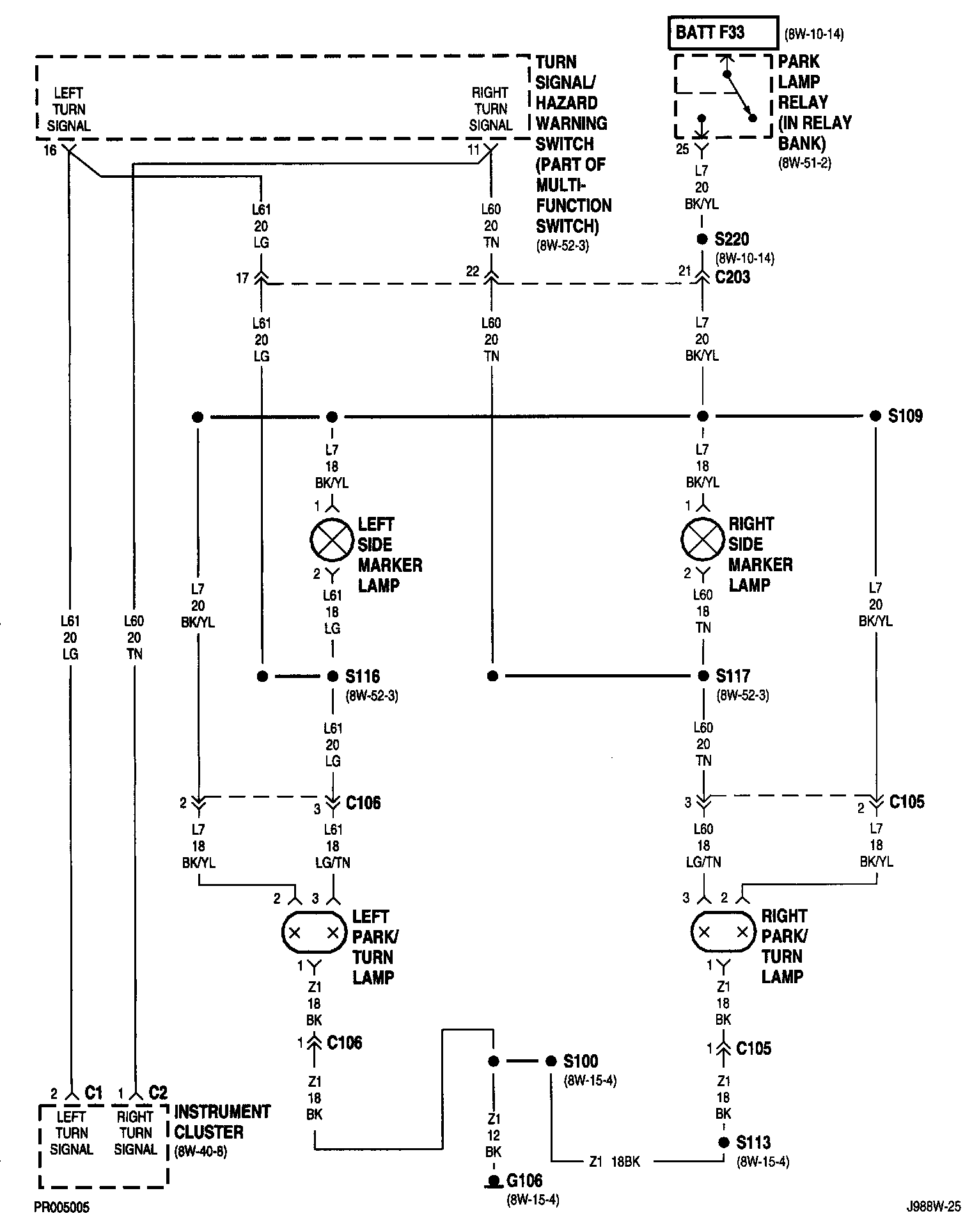

8W-50-05:

G106
Instrument Cluster
Left Park/Turn Lamp
Left Side Marker Lamp
Park Lamp Relay
Right Park/Turn Lamp
Right Side Marker Lamp
Turn Signal/Hazard Warning Switch

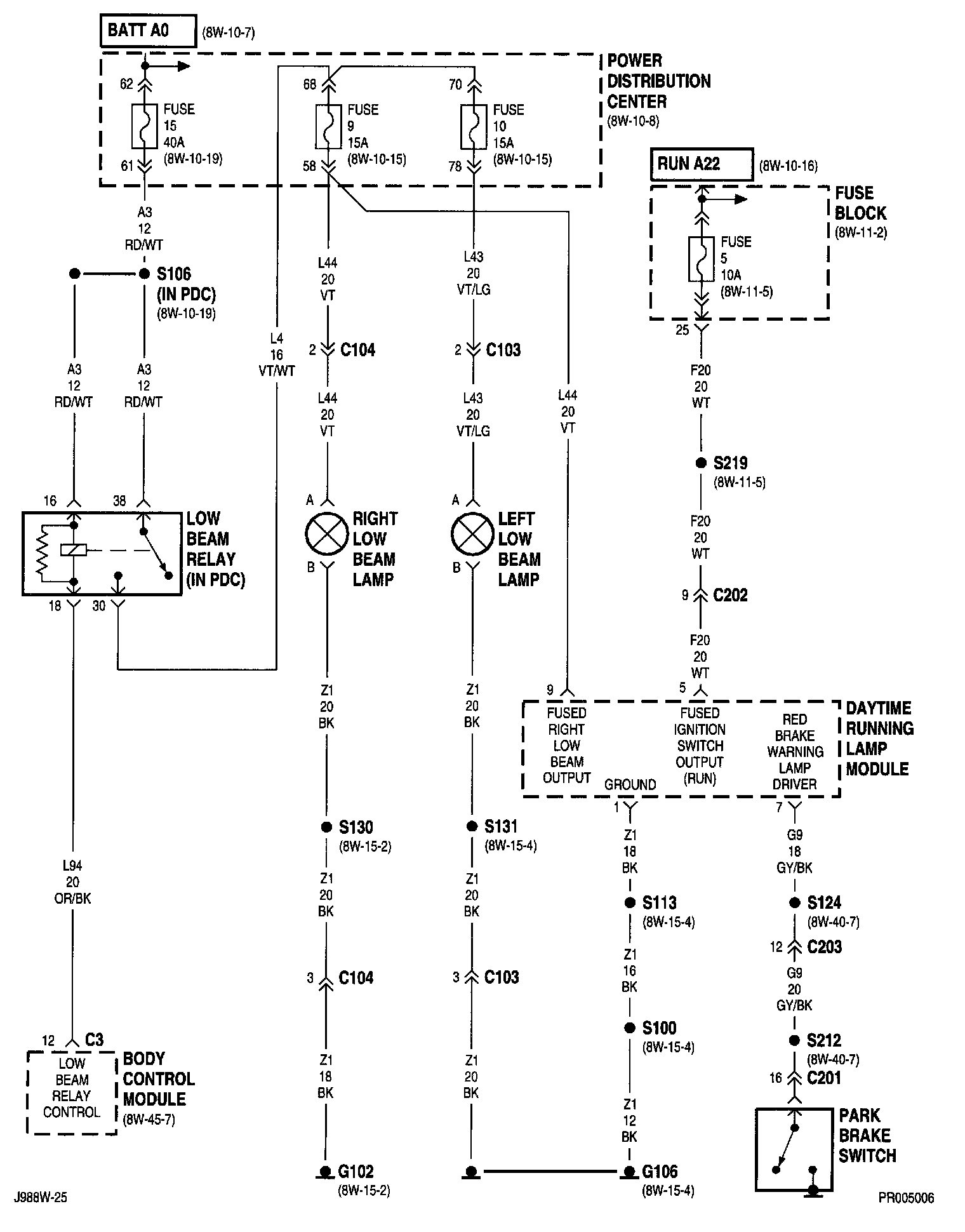

8W-50-06 (DRL):

Body Control Module
Daytime Running Lamp Module
Fuse 10 (PDC)
Fuse 15 (PDC)
Fuse 5 (FB)
Fuse 9 (PDC)
Fuse Block
G102
G106
Left Low Beam Lamp
Low Beam Relay
Park Brake Switch
Power Distribution Center
Right Low Beam Lamp

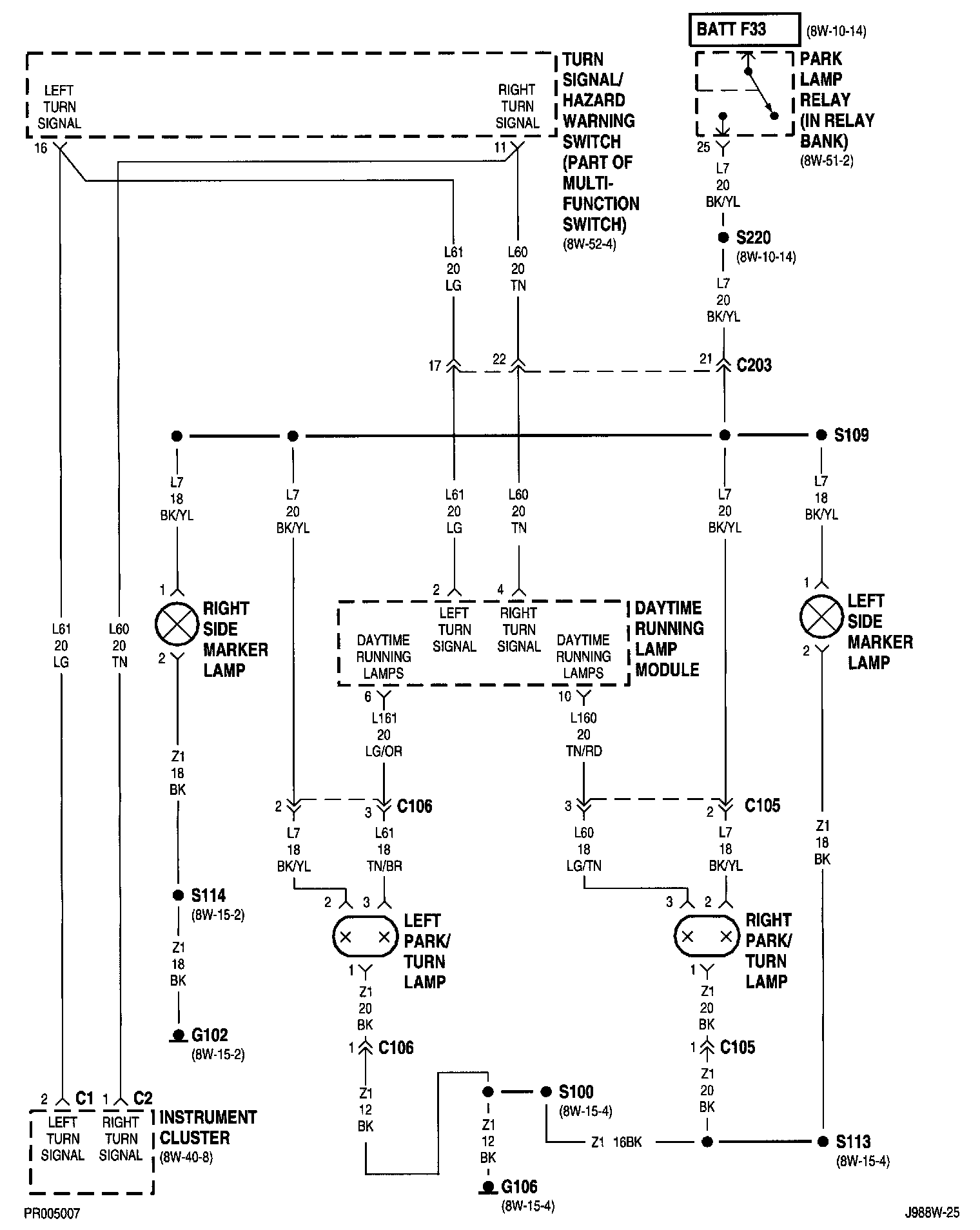

8W-50-07 (DRL):

Daytime Running Lamp Module
G102
G106
Instrument Cluster
Left Park/Turn Lamp
Left Side Marker Lamp
Park Lamp Relay
Right Park/Turn Lamp
Right Side Marker Lamp
Turn Signal/Hazard Warning Switch


NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
