Ground Distribution

8W-15-02:

Battery
G100
G101
G102
Knock Sensor
Powertrain Control Module
Right Downstream Heated Oxygen Sensor
Right High Beam Lamp
Right Low Beam Lamp
Right Side Marker Lamp
Right Upstream Heated Oxygen Sensor

8W-15-03:

A/C Compressor Clutch
A/C Heater Control
Airbag Control Module
Body Control Module
Clockspring
Data Link Connector
G103
G104
G105
G201
Instrument Cluster
Left Speed Control Switch
Low Tire Pressure Module
Powertrain Control Module
Remote Keyless Entry Module
Remote Radio Control Switches
Right Speed Control Switch

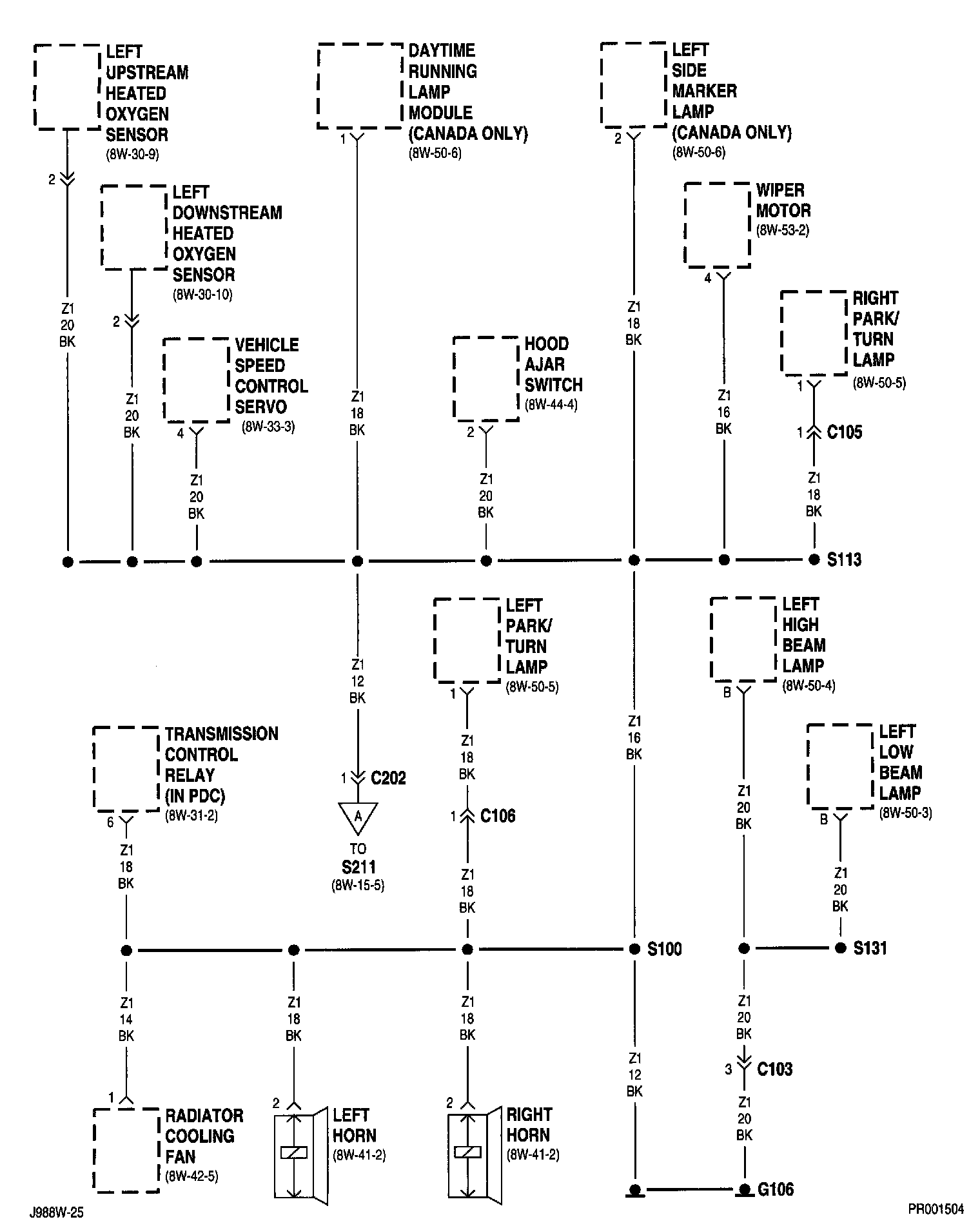

8W-15-04:

Daytime Running Lamp Module
G106
Hood Ajar Switch
Left Downstream Heated Oxygen Sensor
Left High Beam Lamp
Left Horn
Left Low Beam Lamp
Left Park/Turn Lamp
Left Side Marker Lamp
Left Upstream Heated Oxygen Sensor
Radiator Cooling Fan
Right Horn
Right Park/Turn Lamp
Transmission Control Relay
Vehicle Speed Control Servo
Wiper Motor

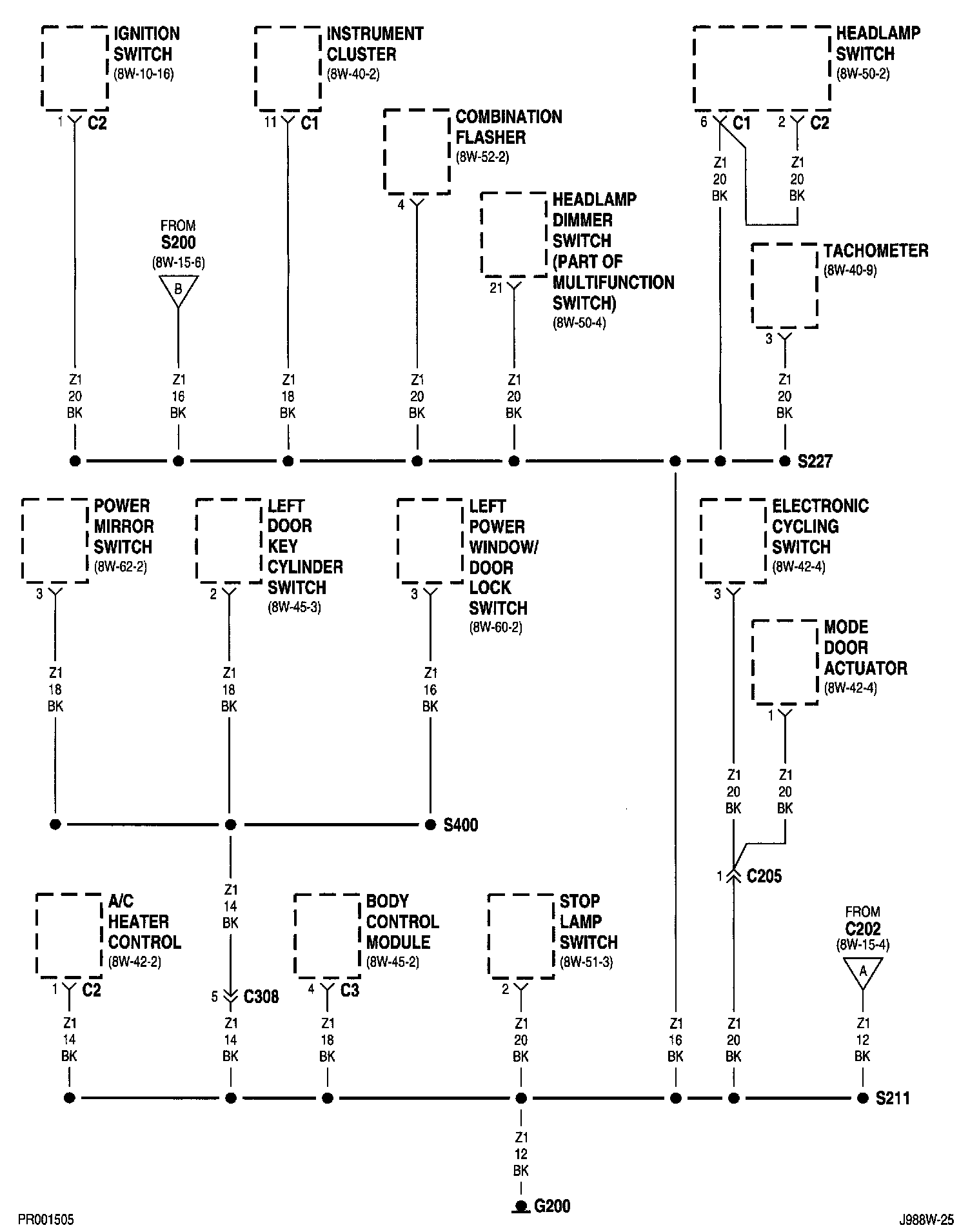

8W-15-05:

A/C Heater Control
Body Control Module
Combination Flasher
Electronic Cycling Switch
G200
Headlamp Dimmer Switch
Headlamp Switch
Ignition Switch
Instrument Cluster
Left Door Key Cylinder Switch
Left Power Window/Door Lock Switch
Mode Door Actuator
Power Mirror Switch
Stop Lamp Switch
Tachometer

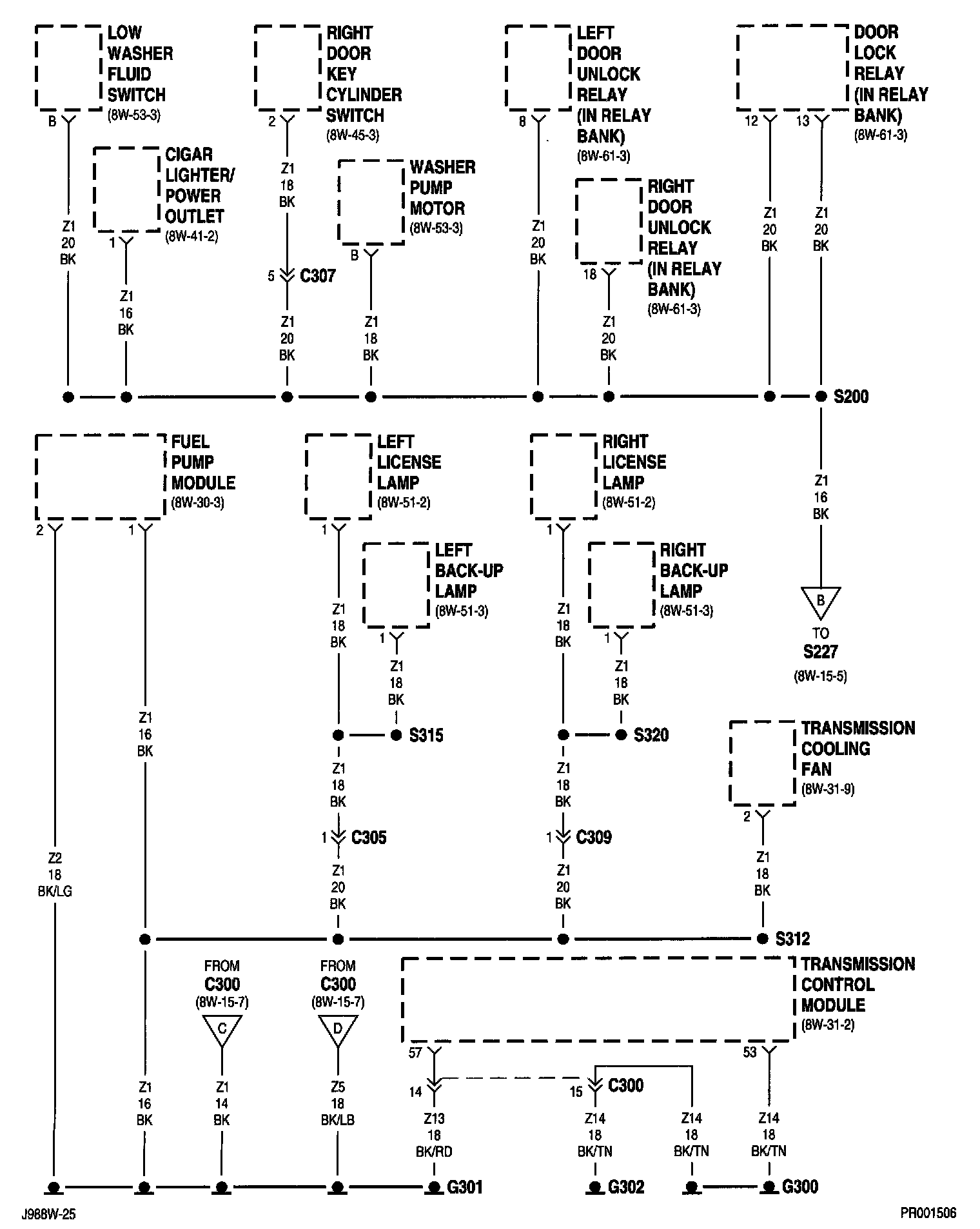

8W-15-06:

Cigar Lighter/Power Outlet
Door Lock Relay
Fuel Pump Module
G300
G301
G302
Left Back-Up Lamp
Left Door Unlock Relay
Left License Lamp
Low Washer Fluid Switch
Right Back-Up Lamp
Right Door Key Cylinder Switch
Right Door Unlock Relay
Right License Lamp
Transmission Control Module
Transmission Cooling Fan
Washer Pump Motor

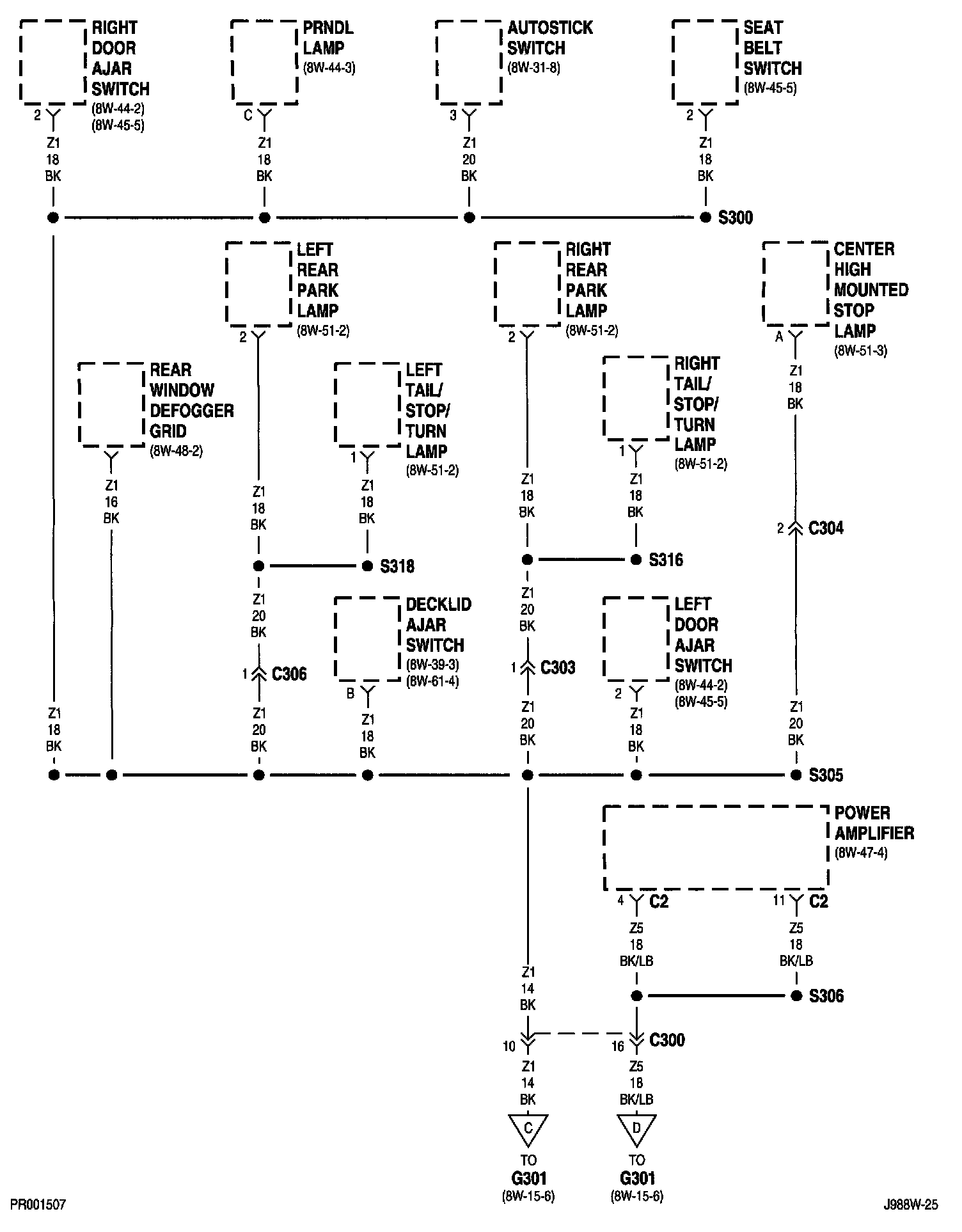

8W-15-07:

Autostick Switch
Center High Mounted Stop Lamp
Decklid Ajar Switch
Left Door Ajar Switch
Left Rear Park Lamp
Left Tail/Stop/Turn Lamp
Power Amplifier
PRNDL Lamp
Rear Window Defogger Grid
Right Door Ajar Switch
Right Rear Park Lamp
Right Tail/Stop/Turn Lamp
Seat Belt Switch


NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams Diagrams By Group Number.
