Wiring Diagrams

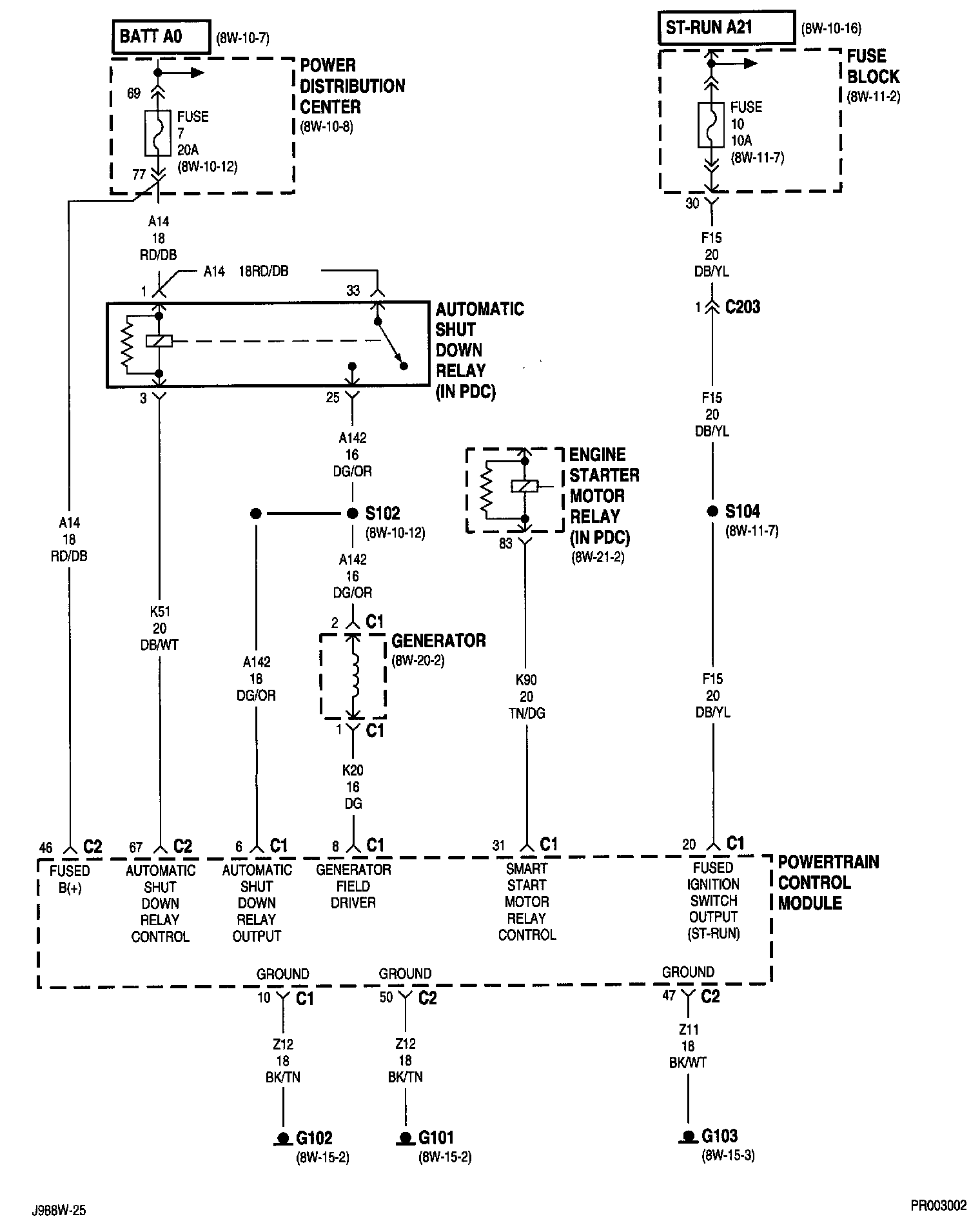

8W-30-02:

Automatic Shut Down Relay
Engine Starter Motor Relay
Fuse 7 (PDC)
Fuse 10 (FB)
Fuse Block
G102
G103
Generator
Power Distribution Center
Powertrain Control Module

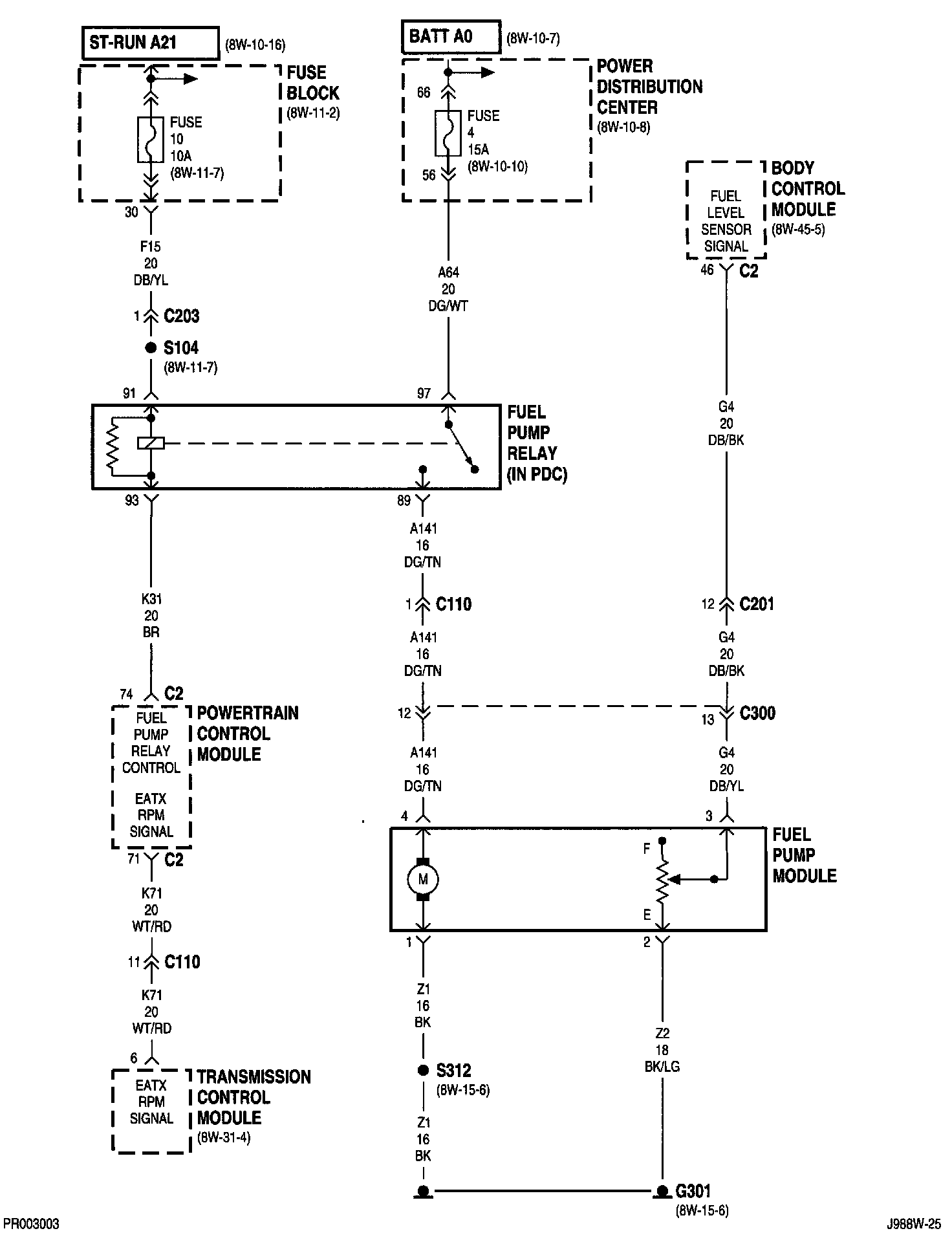

8W-30-03:

Body Control Module
Fuel Pump Module
Fuel Pump Relay
Fuse 4 (PDC)
Fuse 10 (FB)
Fuse Block
G301
Power Distribution Center
Powertrain Control Module

8W-30-04:

Automatic Shut Down Relay
Capacitor No.1
Capacitor No.2
Duty Cycle Evap/Purge Solenoid
EGR Solenoid
Powertrain Control Module

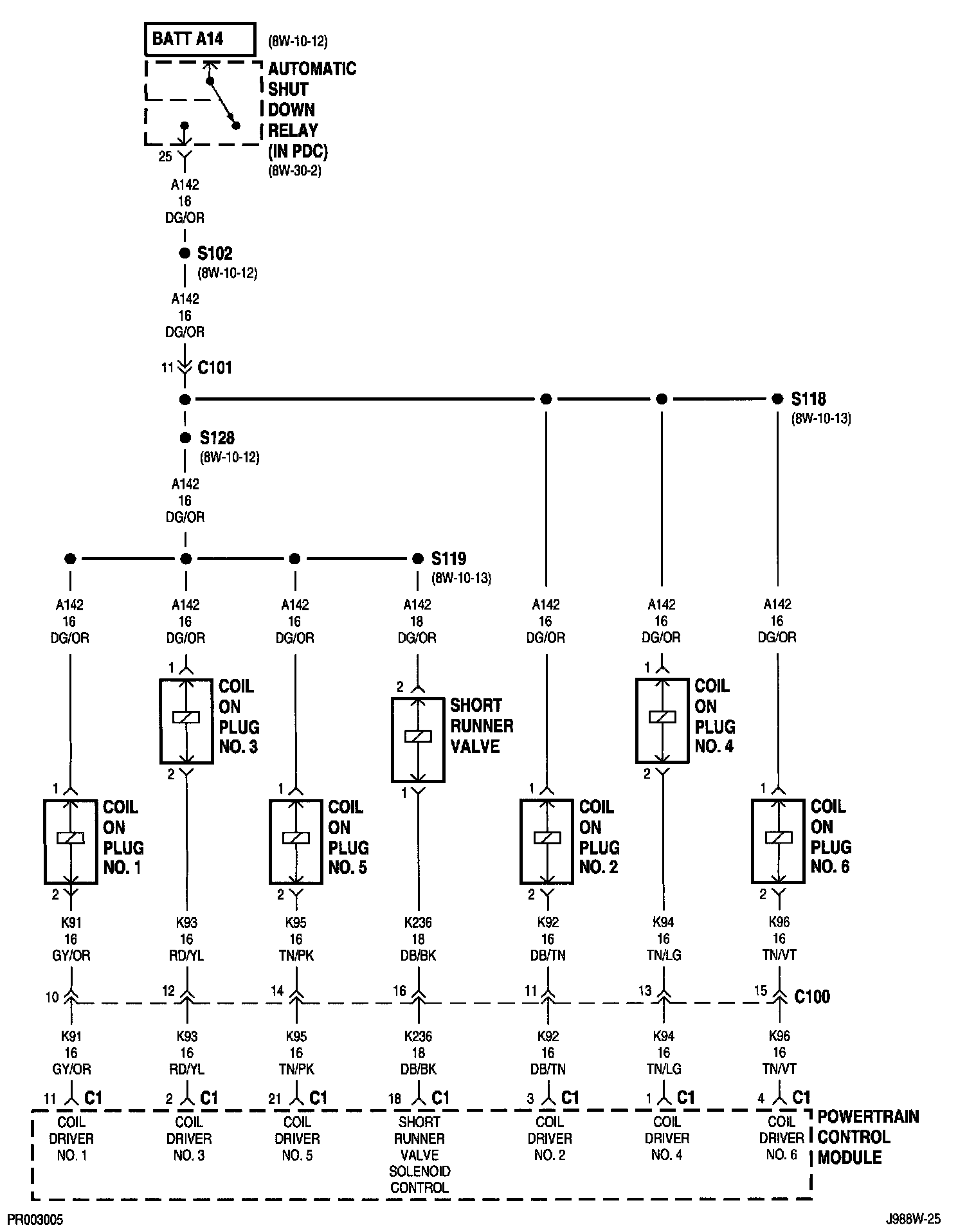

8W-30-05:

Automatic Shut Down Relay
Coil On Plug No.1
Coil On Plug No.2
Coil On Plug No.3
Coil On Plug No.4
Coil On Plug No.5
Coil On Plug No.6
Powertrain Control Module
Short Runner Valve

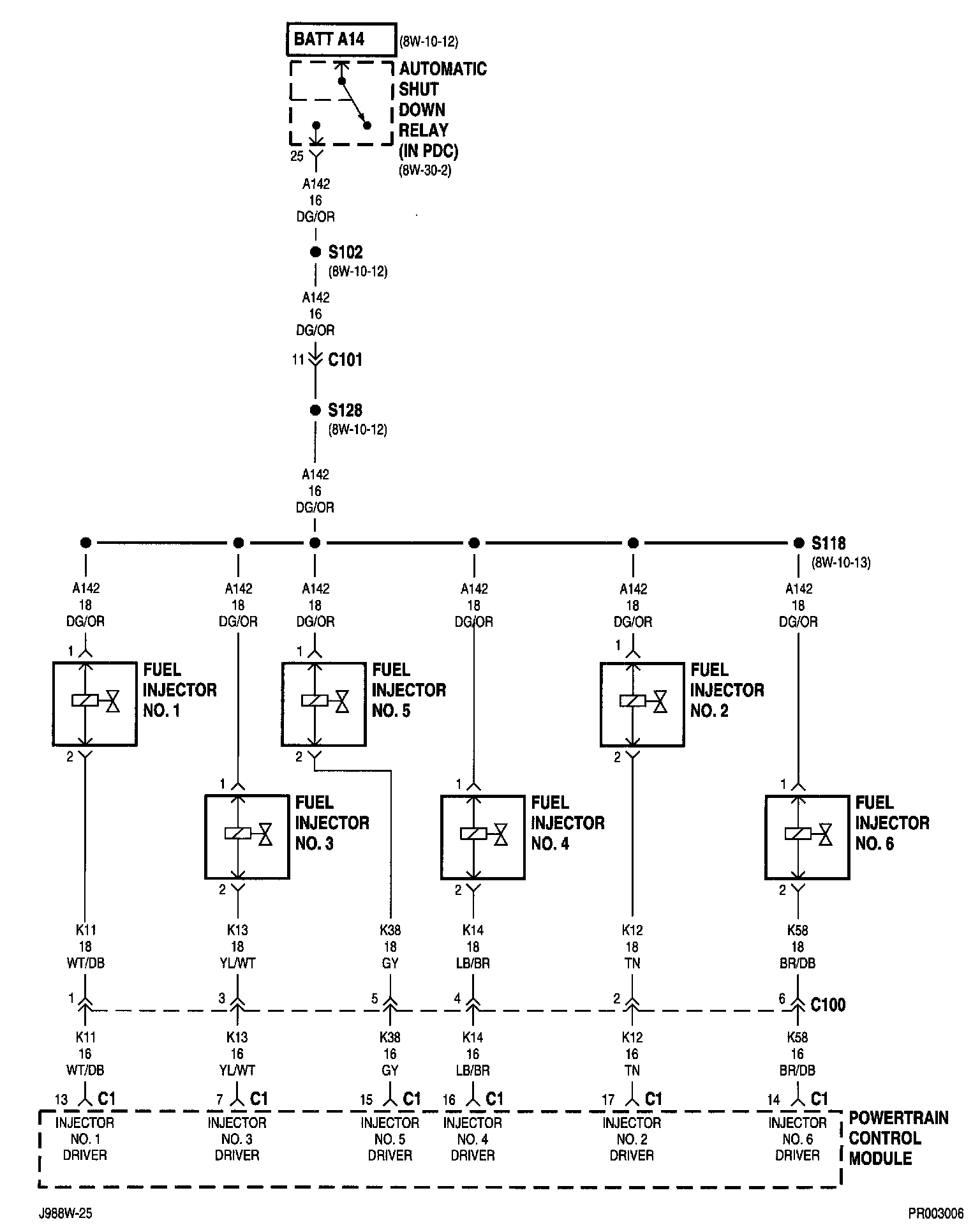

8W-30-06:

Automatic Shut Down Relay
Fuel Injector No.1
Fuel Injector No.2
Fuel Injector No.3
Fuel Injector No.4
Fuel Injector No.5
Fuel Injector No.6
Powertrain Control Module

8W-30-07:

Camshaft Position Sensor
Crankshaft Position Sensor
Powertrain Control Module

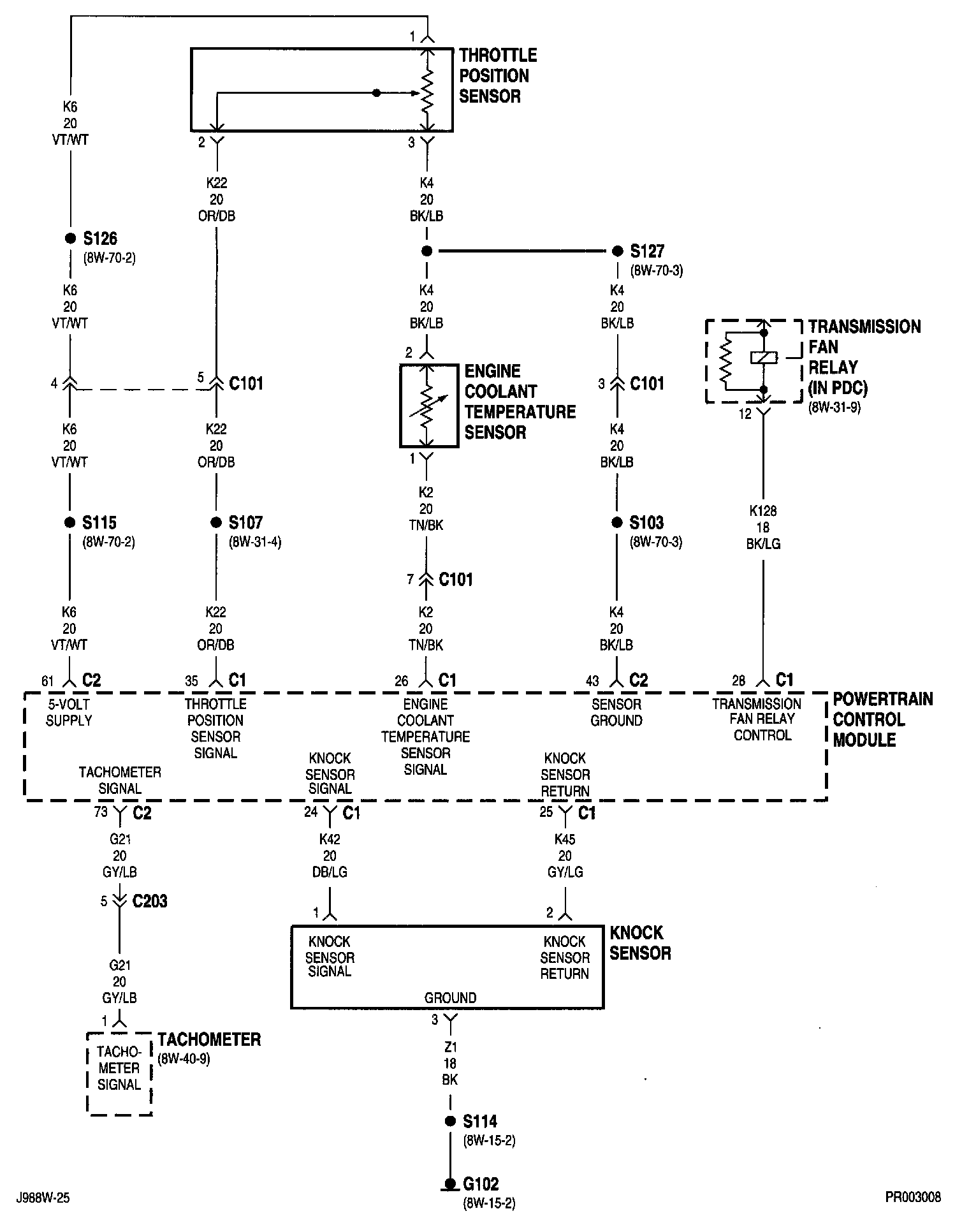

8W-30-08:

Engine Coolant Temperature Sensor
G102
Knock Sensor
Powertrain Control Module
Tachometer
Throttle Position Sensor
Transmission Fan Relay

8W-30-09:

Automatic Shut Down Relay
G102
G106
Left Upstream Heated Oxygen Sensor
Powertrain Control Module
Right Upstream Heated Oxygen Sensor

8W-30-10:

Automatic Shut Down Relay
G102
G106
Left Downstream Heated Oxygen Sensor
Powertrain Control Module
Right Downstream Heated Oxygen Sensor

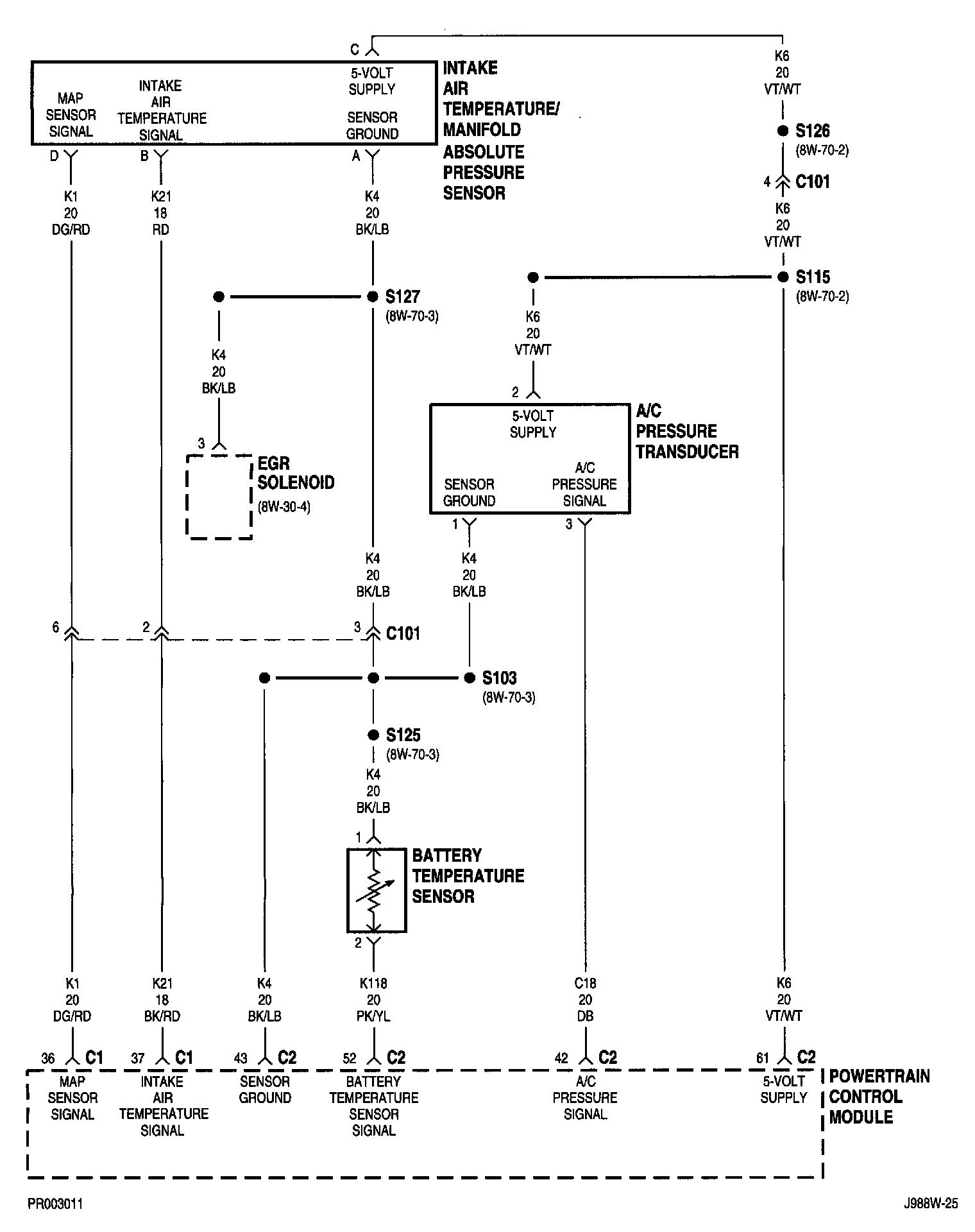

8W-30-11:

A/C Pressure Transducer
Battery Temperature Sensor
EGR Solenoid
Intake Air Temperature/Manifold Absolute Pressure Sensor
Powertrain Control Module

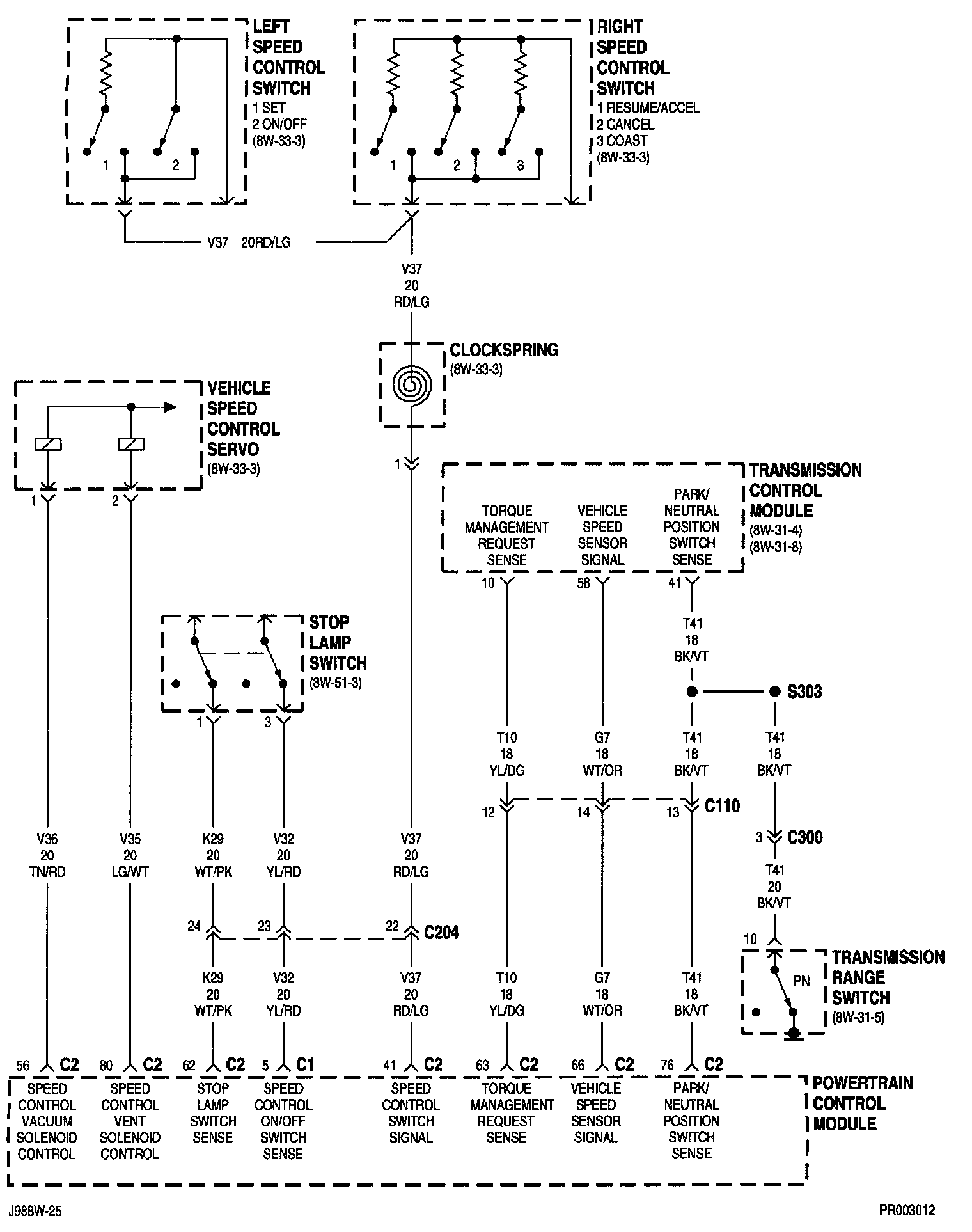

8W-30-12:

Clockspring
Left Speed Control Switch
Powertrain Control Module
Right Speed Control Switch
Stop Lamp Switch
Transmission Control Module
Transmission Range Switch
Vehicle Speed Control Servo

8W-30-13:

A/C Compressor Clutch Relay
Fuse 10 (FB)
Fuse Block
High Speed Radiator Fan Relay
Leak Detection Pump
Low Speed Radiator Fan Relay
Powertrain Control Module

8W-30-14:

Automatic Shut Down Relay
EGR Solenoid
Idle Air Control Motor
Manifold Tuning Valve Solenoid
Powertrain Control Module

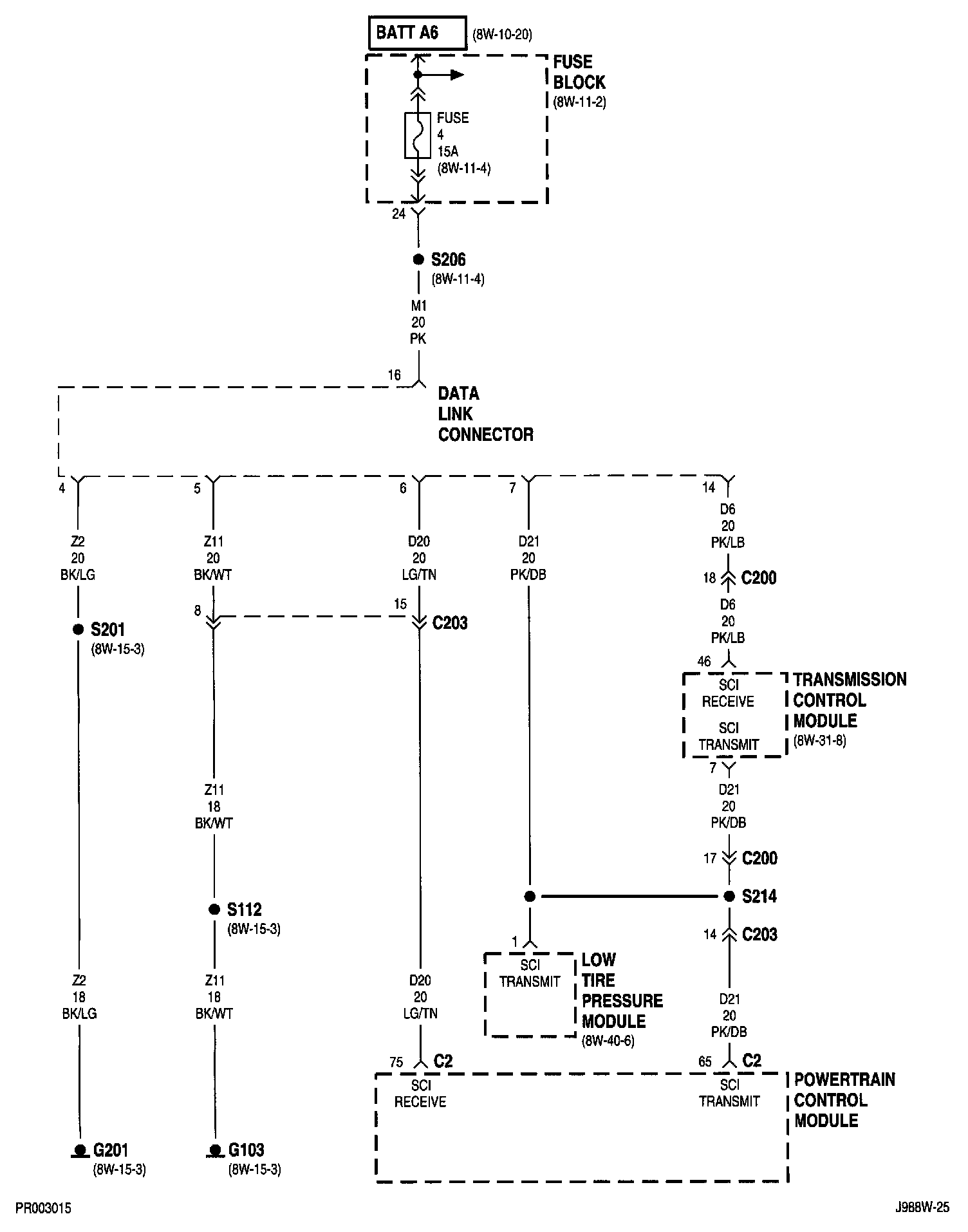

8W-30-15:

Data Link Connector
Fuse 4 (FB)
Fuse Block
G103
G201
Low Tire Pressure Module
Powertrain Control Module
Transmission Control Module

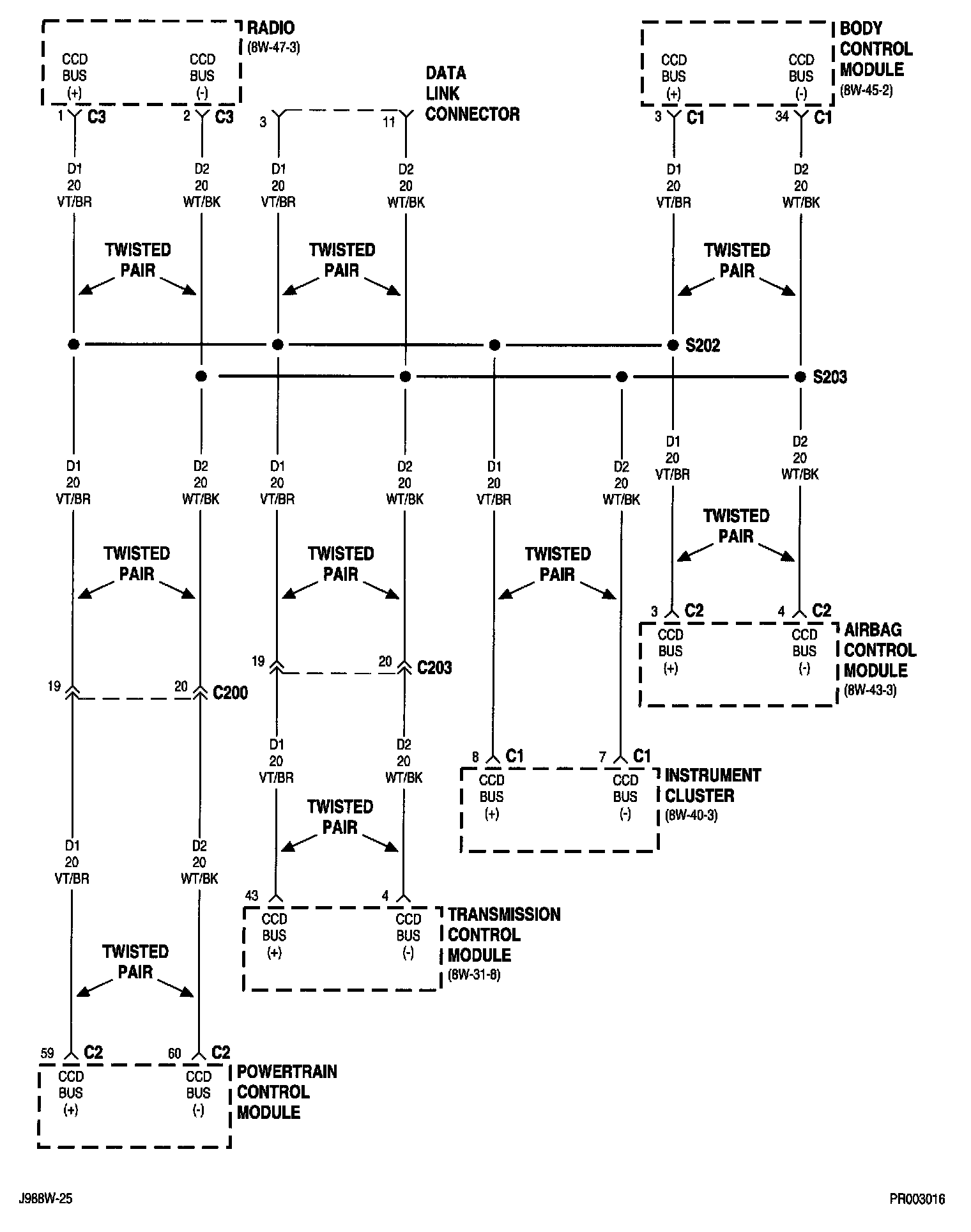

8W-30-16:

Airbag Control Module
Body Control Module
Data Link Connector
Instrument Cluster
Powertrain Control Module
Radio
Transmission Control Module


NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams Diagrams By Group Number
