Windshield Washer Pump: Service and Repair

REMOVAL
1. Remove reservoir. Refer to Washer Reservoir Removal and Installation.

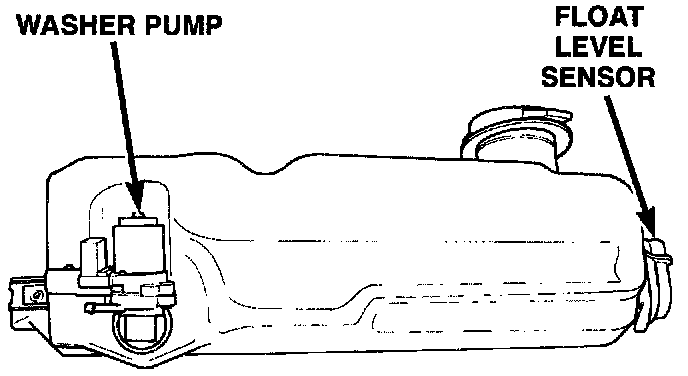

Washer Reservoir Pump:

2. Gently pry pump away from reservoir and out of grommet. Care must be taken not to puncture reservoir.
3. Remover rubber grommet from reservoir and throw away

INSTALLATION
- For installation, reverse the above procedures. Tighten the reservoir nuts and screw to 9 to 14 N.m (80 to 124 in. lbs.) torque. Fill reservoir.
