P1478

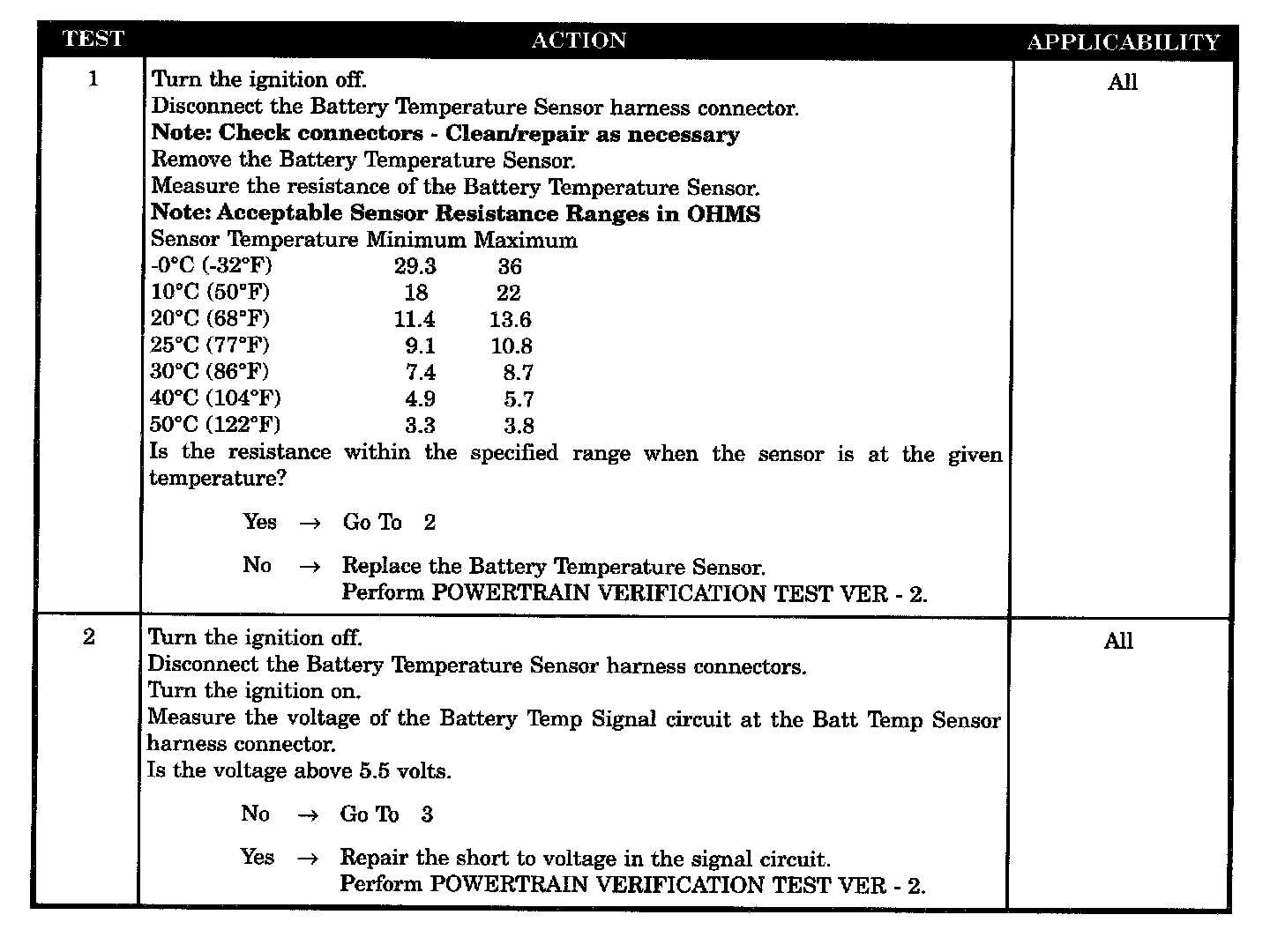

Tests 1 - 2:

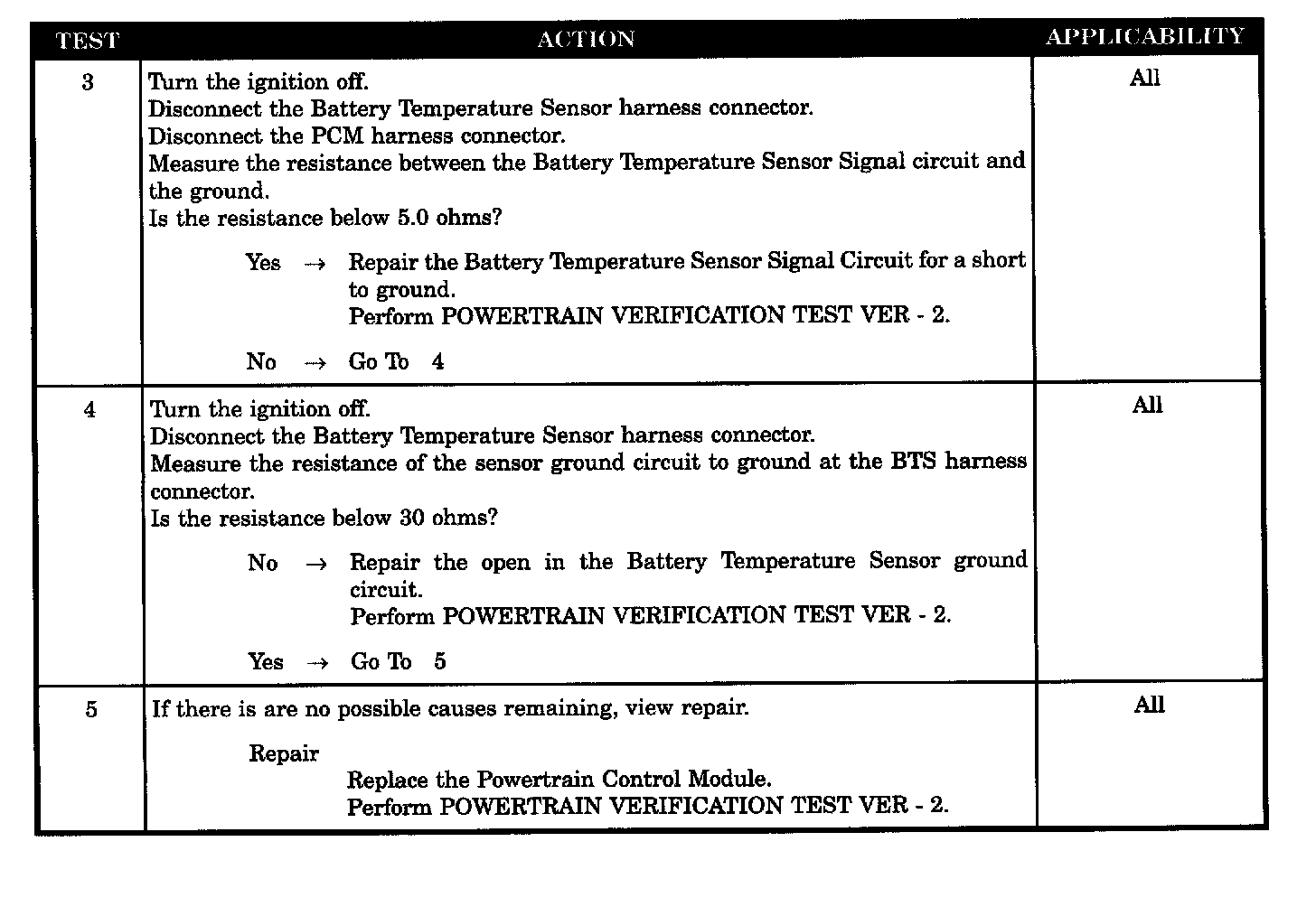

Tests 3 - 5:

SYMPTOM
P1478 - BATTERY TEMPERATURE SENSOR VOLTS OUT OF LIMIT

POSSIBLE CAUSES
- PCM
- Battery temperature sensor
- Battery temperature sensor signal circuit shorted to battery voltage
- Battery temperature sensor signal circuit shorted to ground
- Open ground circuit
