P1695

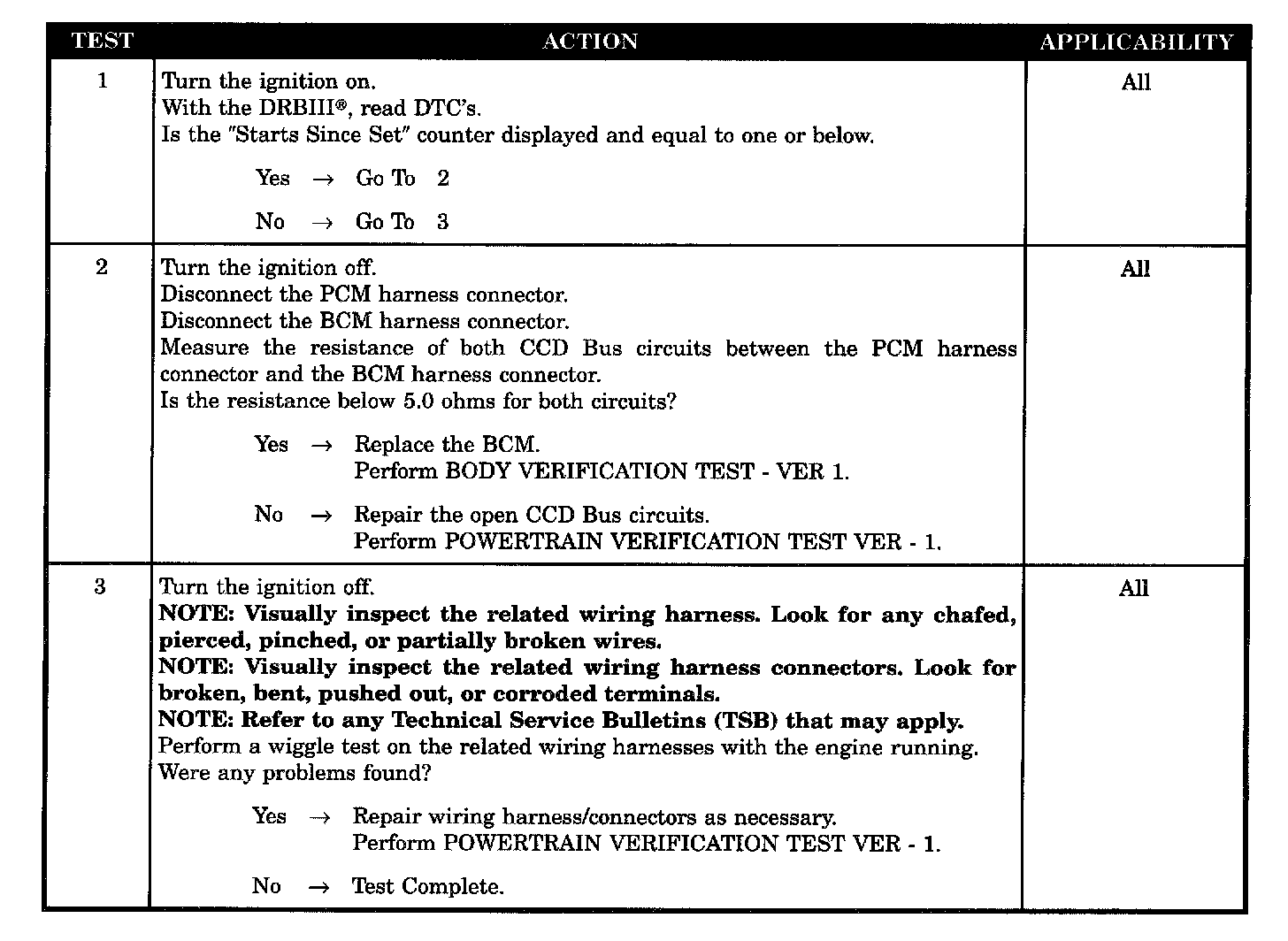

Tests 1 - 3:

SYMPTOM
P1695 - NO CCD/J185O MESSAGE FROM BODY CONTROL MODULE

WHEN MONITORED
With the ignition ON, engine running, auto transmission must be in Drive, and battery voltage greater than 10.0 volts.

SET CONDITION
No messages received from the BCM for 20 seconds.

POSSIBLE CAUSES
- BCM
- Wiring harness intermittent problem
- CCD bus circuit open from PCM to BCM
