P1792

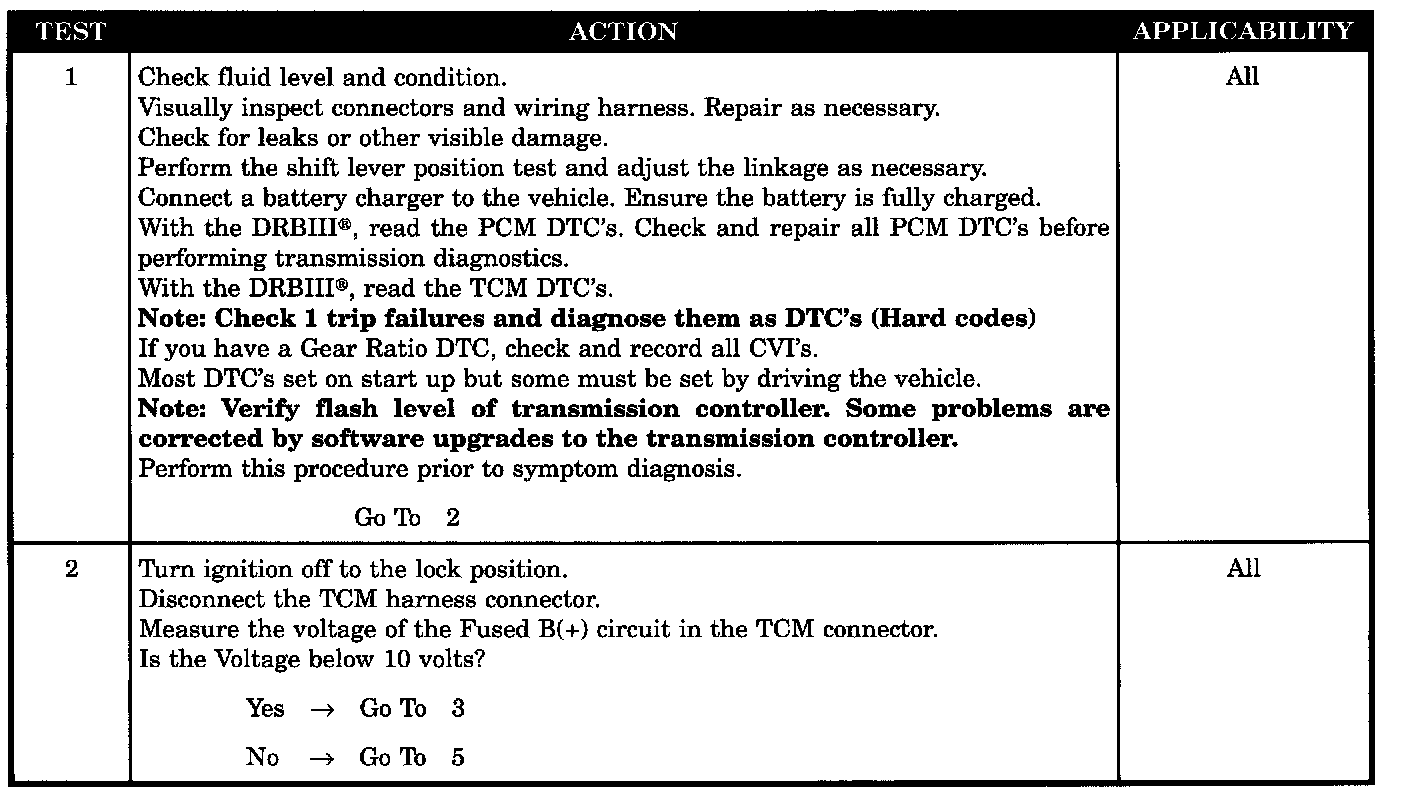

Test 1 Through 2:

Test 3 Through 7:

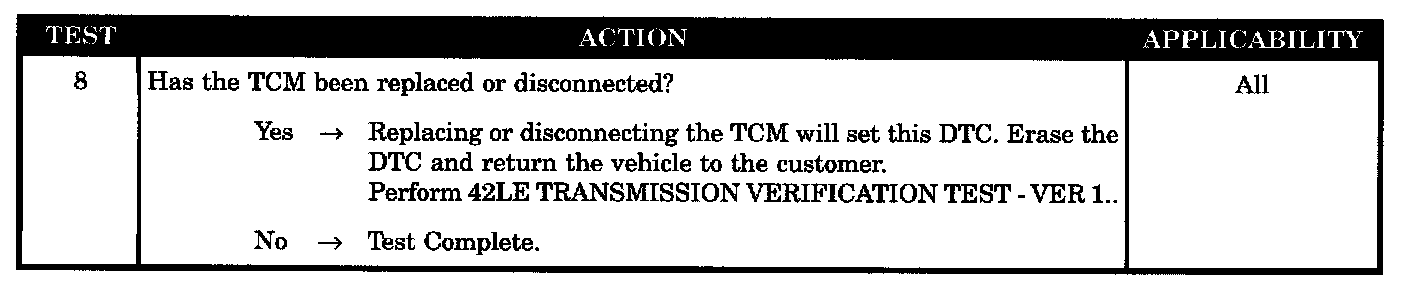

Test 8:

Symptom:
P1792-BATTERY WAS DISCONNECTED

When Monitored and Set Condition:
P1792-BATTERY WAS DISCONNECTED

When Monitored:Whenever the key is in the Run/Start position.

Set Condition:This code is set whenever Transmission Control Module (TCM) is disconnected from battery power (B+) or ground. It will also be set during the DRB Quick Battery Disconnect procedure.

POSSIBLE CAUSES:
INTERMITTENT WIRING & CONNECTORS CONDITIONS
BATTERY WAS DISCONNECTED
QUICK LEARN WAS PERFORMED
TCM WAS REPLACED OR DISCONNECTED
FUSED B(+) CIRCUIT TO TCM OPEN
GROUND CIRCUIT OPEN
