P1796

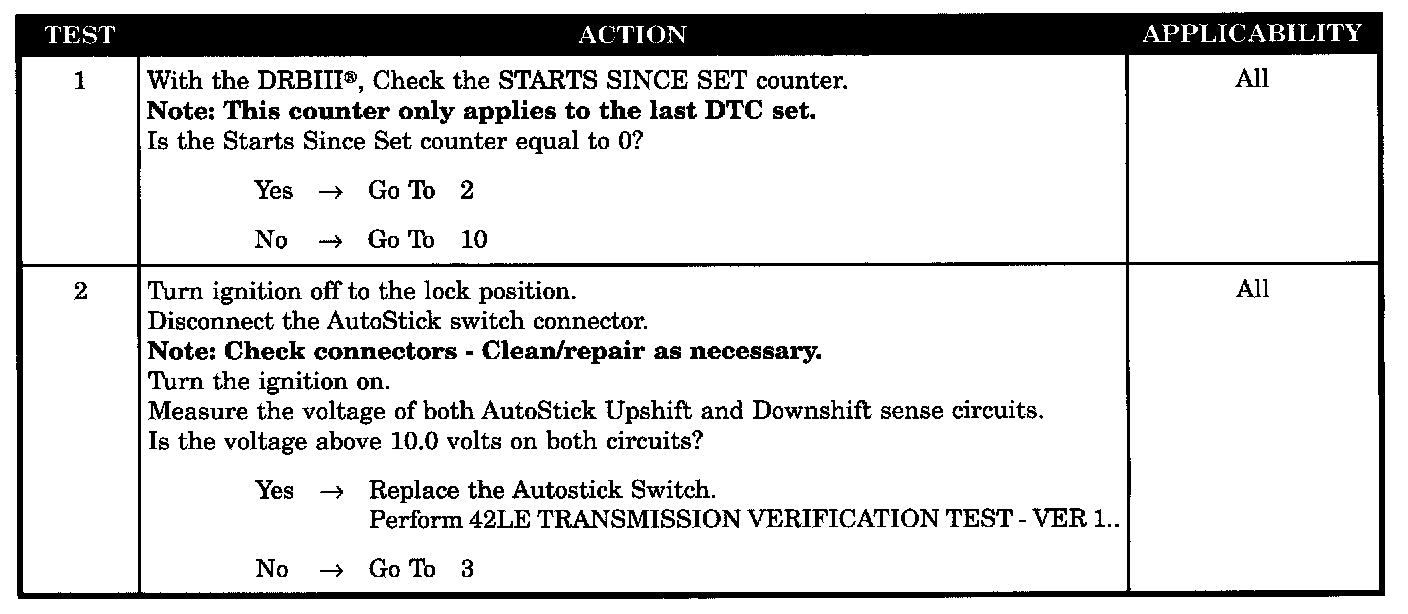

Test 1 Through 2:

Test 3 Through 6:

Test 7 Through 10:

Symptom:
P1796-AUTOSTICK SENSOR CIRCUIT

When Monitored and Set Condition:
P1796-AUTOSTICK SENSOR CIRCUIT

When Monitored:Whenever the engine is running.

Set Condition:The transmission shift lever is not in the AutoStick Position and either the Upshift or Downshift; switch is closed. This code will also set if both switches are closed at the same time.

POSSIBLE CAUSES:
INTERMITTENT WIRING & CONNECTORS
DOWNSHIFT SENSE CIRCUIT OPEN
FUSED IGNITION SWITCH OUTPUT CIRCUIT OPEN
GROUND CIRCUIT OPEN
UPSHIFT SENSE CIRCUIT OPEN
DOWNSHIFT SENSE CIRCUIT SHORTED TO GROUND
UPSHIFT SENSE CIRCUIT SHORTED TO GROUND
AUTOSTICK SWITCH STUCK OPEN OR CLOSED
TCM-AUTOSTICK
