P1797

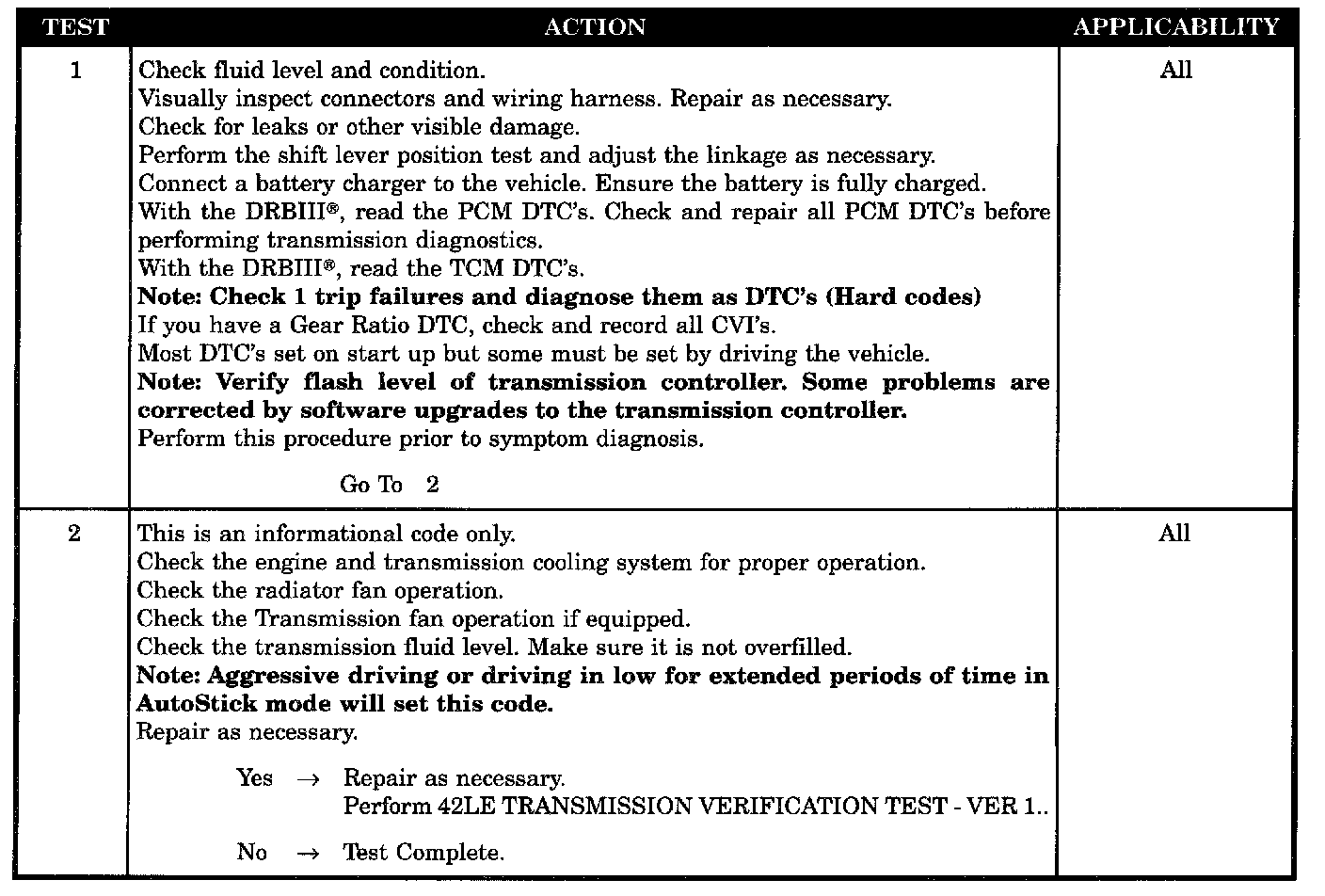

Test 1 Through 2:

Symptom:
P1797-MANUAL SHIFT OVERHEAT

When Monitored and Set Condition:
P1797-MANUAL SHIFT OVERHEAT

When Monitored: Whenever engine is running and transmission is in the AutoStick mode.

Set Condition: LF the engine temperature exceeds 255°F or the transmission temperature exceeds 275°F while in AutoStick mode. note: Aggressive driving or driving in low for extended periods of time in AutoStick mode will set this code.

POSSIBLE CAUSES:
MANUAL SHIFT OVERHEAT
