P1798

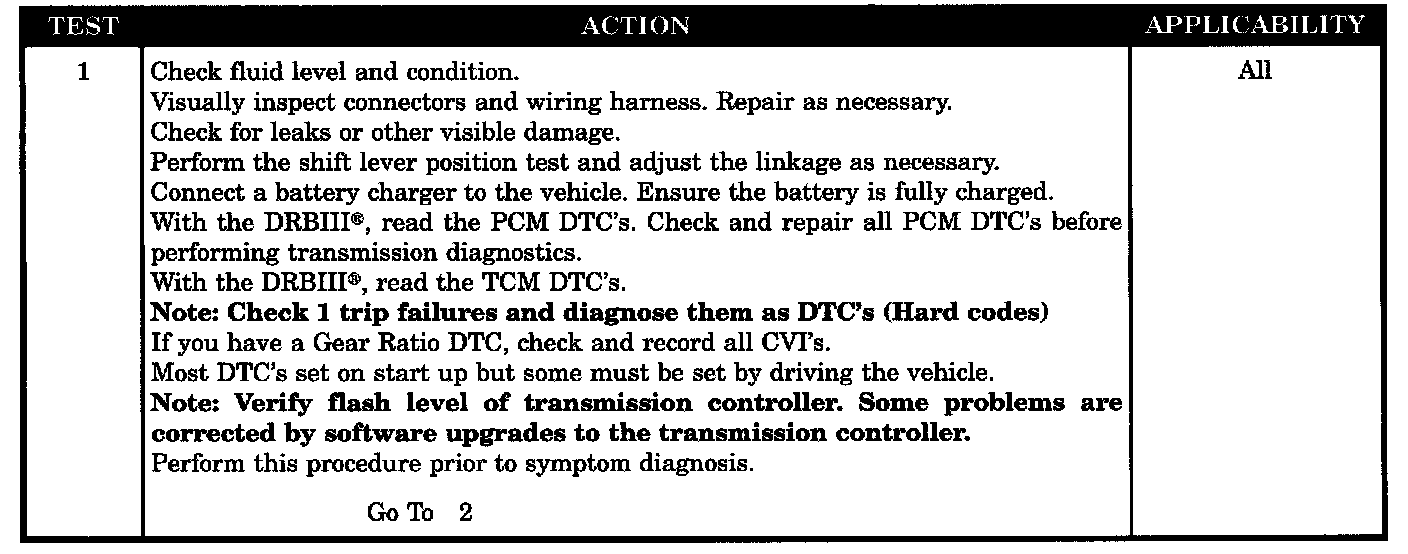

Test 1:

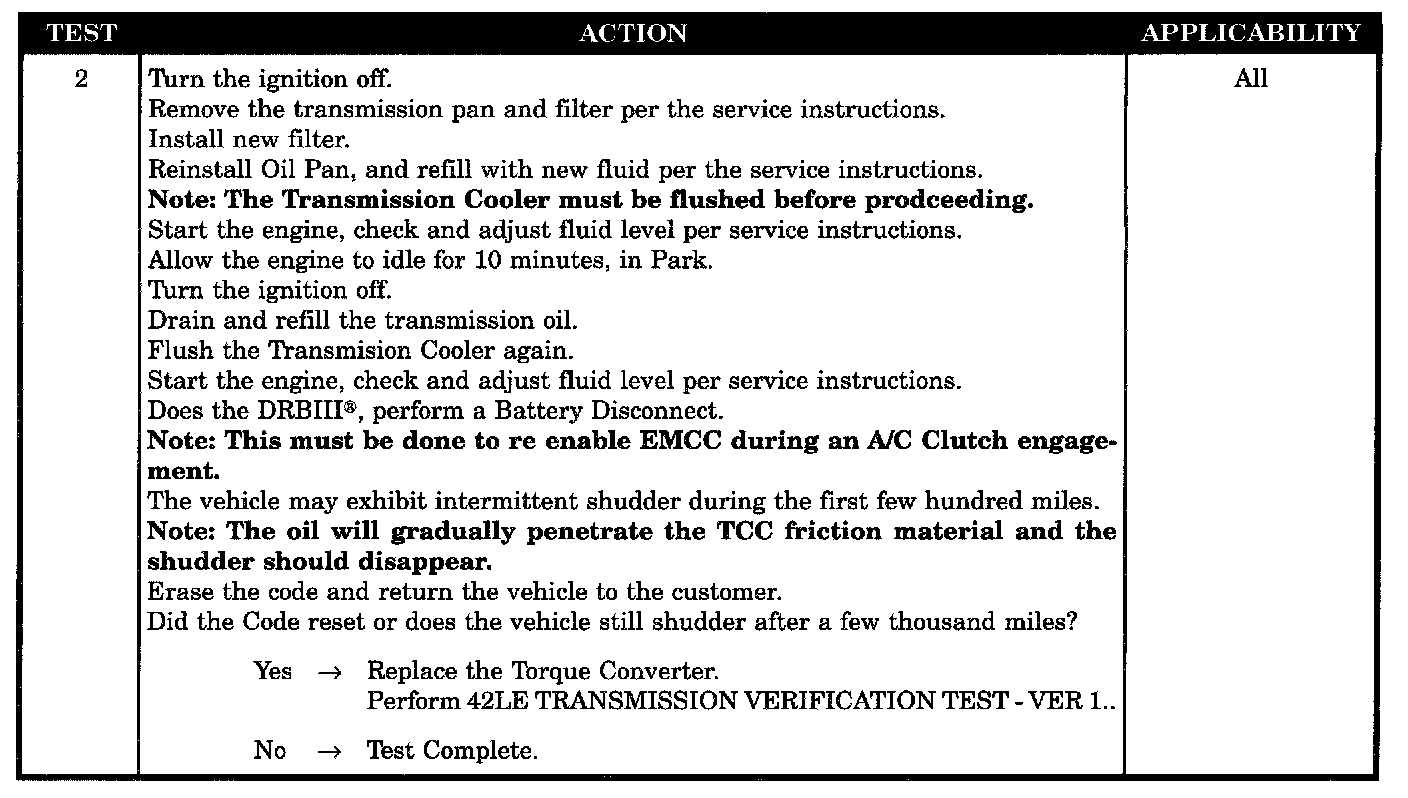

Test 2:

Symptom:
P1798-WORN OUT/BURNT TRANSAXLE FLUID

When Monitored and Set Condition:
P1798-WORN OUT/BURNT TRANSAXLE FLUID

When Monitored:With each transition from full Torque Convertor to partial Torque Convertor engagement for A/C bump prevention.

Set Condition:When vehicle shudder is detected during partial engagement (PEMCC).

POSSIBLE CAUSES:
WORN OUT/ BURNT TRANS FLUID
