Seat Cushion Assembly - Driver's Side

SEAT CUSHION ASSEMBLY DRIVER'S SIDE

REMOVAL

1. Remove seat.
2. Remove recliner handle.

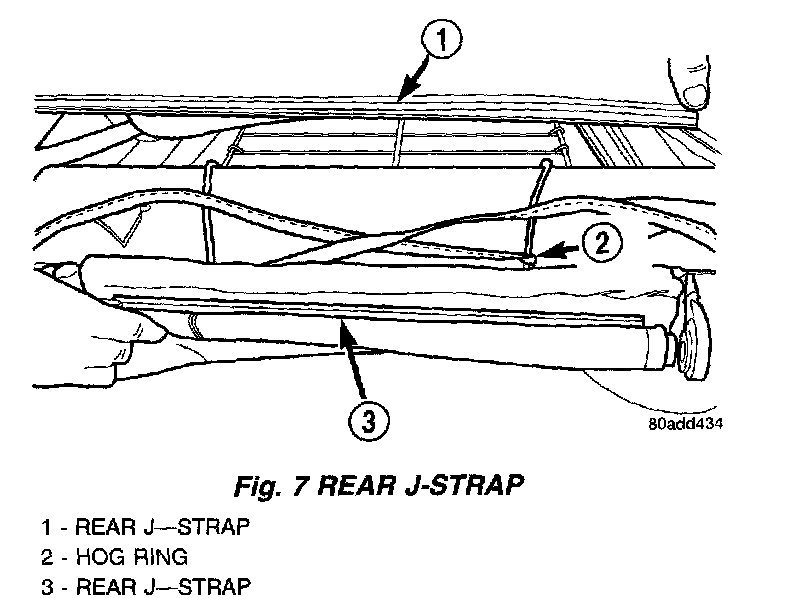

Fig. 7:

3. Disengage rear j-strap (Fig. 7).
4. Remove rear hog rings.
5. Remove bolts attaching seat pan to adjustor assembly.
6. Remove cushion assembly from seat assembly.

INSTALLATION

1. Position cushion assembly to seat assembly and install.
2. Engage front and side j-straps.
3. Install bolts attach seat pan to adjustor assembly.
4. Install rear hog rings.
5. Engage rear j-straps to seat pan.
6. Install recliner handle.
7. Install seat.
