Antitheft and Alarm Systems

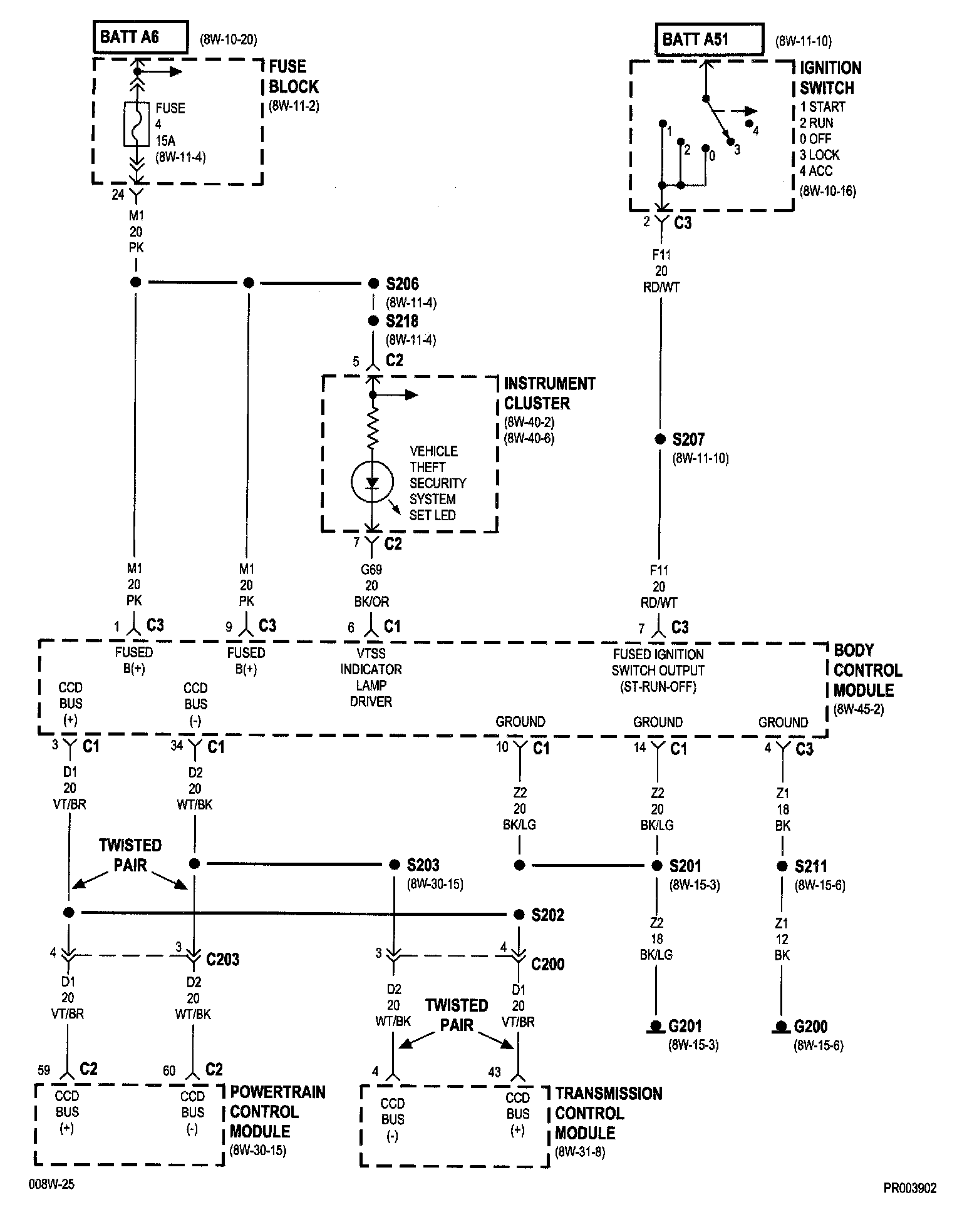

Vehicle Theft Security System:

8W-39-2:

8W-39-3:

8W-39-4:

NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
Electrical Diagrams
